Bandpass Filter 252153B
1. Features
IF bandpass filter
Low-Loss Filter
Single-ended operation
Ceramic Surface Mount Device(SMD) Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimension
13.30±0.2
7.62±0.1
7
6.50±0.2
6
8
9
10
11
2.54±0.1
•
ITF 08A001
252153B
1.61±0.2
1.50±0.1
5
4
3
2
2.54±0.1
1
0.80±0.1
12
Pin Configuration
Package : S1365
11
5
6, 12
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Other
Body : Al
2
O
3
Lid : Kovar, Ni Plated
Termination : Au plating 0.3 ~ 1.0um, over a 1.27 ~ 8.89um Ni Plating
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252153B
2008-11-10
NJ8022-AS01
1/5
Bandpass Filter 252153B
3. Specifications
Fo = 106.0 MHz
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Room temperature : +25℃
℃
Center Frequency (Fc)
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Amplitude Ripple (Fo +/- 9.32 MHz)
Group Delay Variation (Fo +/- 9.32 MHz)
Absolute Delay
Ultimate Rejection
Temperature Coefficient of Frequency (TCF)
MHz
dB
MHz
MHz
MHz
dB
nsec
usec
dB
ppm/°C
Minimum
-
-
20.0
-
-
-
-
-
40
-
Typical
106.0
10.0
20.54
21.4
25.5
0.55
40
0.8
45
- 86
Maximum
-
13.0
-
-
26.0
1.0
80
-
-
-
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances
4)
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252153B
2008-11-10
NJ8022-AS01
2/5
Bandpass Filter 252153B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
L1
Output
50
Ω
C1
L2
C1 = 30 pF,
L1 = 100 nH
L2 = 39 nH
5. Marking Configuration
ITF
1)
08A001
2)
252153B
3)
4)
1) Manufacturer name
2) Lot Number
3) Part Number
4) Pad Number 1 Index
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252153B
2008-11-10
NJ8022-AS01
3/5
Bandpass Filter 252153B

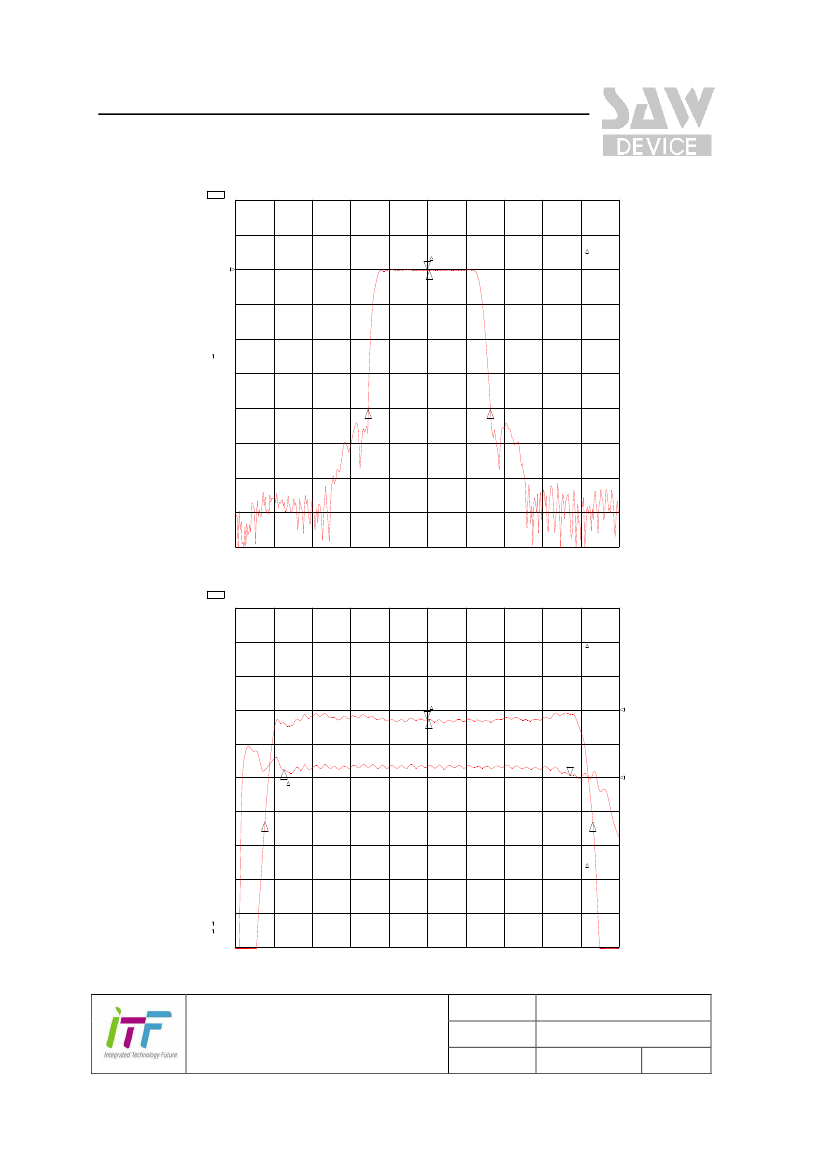

6. Typical Performance ( at +25℃ )
℃
CH1 S21
LOG
10 dB/
REF -9.6 dB
10 Nov 2008 14:11:41
1: 0. 0000 dB
0. 000 000 MHz
CH1 Markers
Cor
1
2
BW 25. 469542 MHz
:
cent : 106. 439963 MHz
Q 4. 1791
:
1_loss : -9 . 8884 dB
REF=1
3
4
CENTER 106. 000 000 MHz
SPAN 80. 000 000 MHz
CH2 S21
CH4 S21
LOG
DEL
1 dB/
100 ns/
REF -9.6 dB
REF 774 ns
10 Nov 2008 14:11:53
1: 0. 0000 dB
0. 000 000 MHz
3:-18 . 600 ns
18. 640 000 MHz
CH2 Markers
BW 21. 367369 MHz
:
cent : 106. 107955 MHz
Q 4. 9659
:
1
2
1_loss : -9 . 9033 dB
REF=1
3
2
Cor
Smo
3
CH4 Markers
4
4
Cor
mean: 803. 68 ns
s. dev : 5. 8078 ns
p-p : 33. 783 ns
REF=2
CENTER 106. 000 000 MHz
SPAN 25. 000 000 MHz
2
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252153B
2008-11-10
NJ8022-AS01
4/5

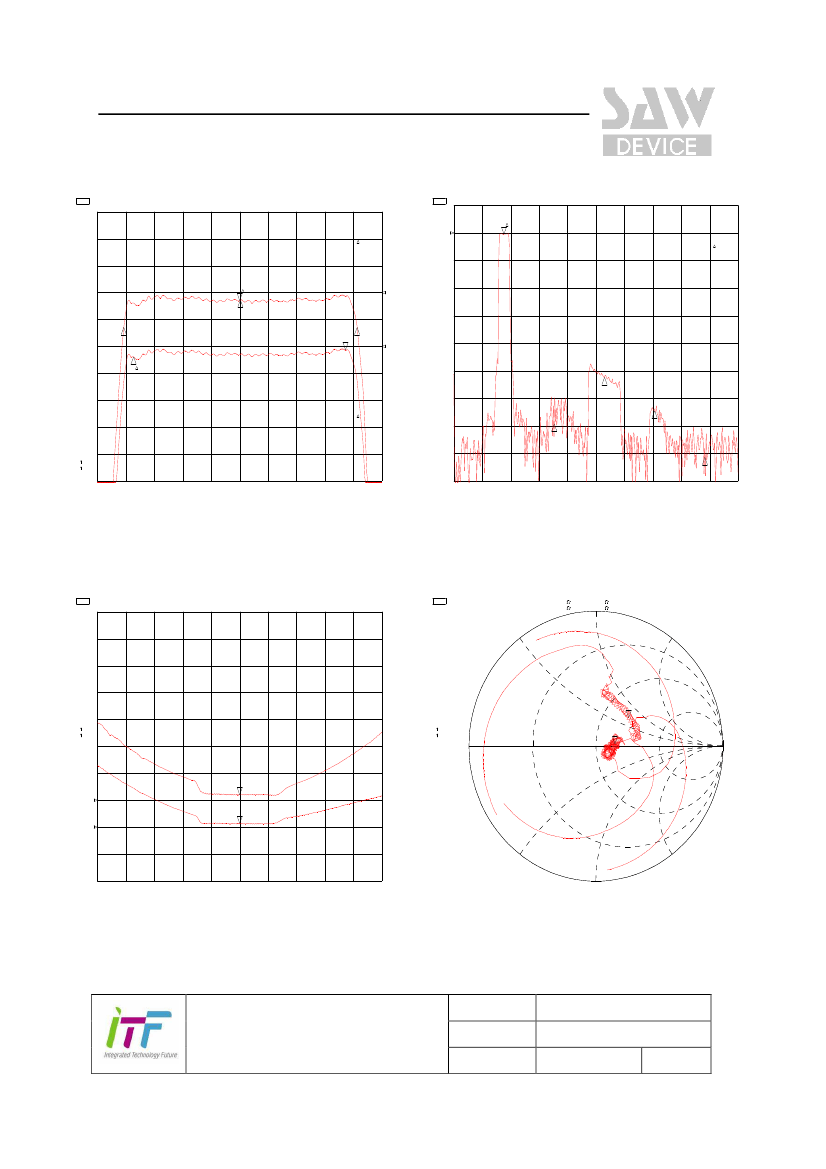

Bandpass Filter 252153B
CH2 S21
CH4 S21
LOG
LOG
1 dB/ REF -9.6 dB
1 dB/ REF -9.6 dB
10 Nov 2008 14:12:02
1: 0. 0000 dB
0. 000 000 MHz
3: . 26370 dB
18. 640 000 MHz
CH1 S21
LOG
1
10 dB/ REF -9.6 dB
10 Nov 2008 14:13:09
1: 0. 0000 dB
0. 000 000 MHz
CH2Markers
BW 20. 515593 MHz
:
cent : 106. 071086 MHz
Q 5. 1703
:
1
2
1_
loss : -9 . 8956 dB
REF=1
CH1Markers
2:-68 . 908 dB
106. 000 MHz
3:-51 . 984 dB
212. 000 MHz
4:-64 . 137 dB
318. 000 MHz
5:-81 . 071 dB
REF=1
3
3
4
424. 000 MHz
2
Cor
CH4Markers
Cor
mean . 8663 dB
:-9
s. dev : . 07620 dB
p-p : . 39240 dB
5
CENTER106. 000 000 MHz
SPAN 25. 000 000 MHz
4
2
START . 010 000 MHz
STOP 600. 000 000 MHz
3
REF=2
2
4
CH1 S11
CH3 S22
SWR
SWR
10 /
10 /
REF 0
REF 0
10 Nov 2008 14:12:33
1: 2. 0012
106. 000 000 MHz
2: 1. 3549
106. 000 000 MHz
CH1 S11
CH3 S22
1 U FS
1 U FS
1: 74. 738
2: 67. 543
35. 469
2. 3867
10 Nov 2008 14:12:20
53. 255 nH
106. 000 000 MHz
3. 5836 nH
106. 000 000 MHz
Cor
Cor
Cor
Cor
1
2
1
2
CENTER106. 000 000 MHz
SPAN 80. 000 000 MHz
CENTER106. 000 000 MHz
SPAN 80. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252153B
2008-11-10
NJ8022-AS01
5/5
