Bandpass Filter 252152B
1. Features
IF bandpass filter
Low-Loss Filter
Single-ended operation
Ceramic Surface Mount Device(SMD) Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimension
13.30±0.2
7.62±0.1
7
6.50±0.2
6
8
9
10
11
2.54±0.1
•
ITF 08A001
252152B
1.61±0.2
1.50±0.1
5
4
3
2
2.54±0.1
1
0.80±0.1
12
Pin Configuration
Package : S1365
11
5
6, 12
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Other
Body : Al
2
O
3
Lid : Kovar, Ni Plated
Termination : Au plating 0.3 ~ 1.0um, over a 1.27 ~ 8.89um Ni Plating
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252152B
2008-07-05
NJ8011-CS01
1/5
Bandpass Filter 252152B
3. Specifications
Fo = 100.0 MHz
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Room temperature : +25℃
℃
Center Frequency (Fc)
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Amplitude Ripple (Fo +/- 9.32 MHz)
Group Delay Variation (Fo +/- 9.32 MHz)
Absolute Delay
Ultimate Rejection
Temperature Coefficient of Frequency (TCF)
MHz
dB
MHz
MHz
MHz
dB
nsec
usec
dB
ppm/°C
Minimum
-
-
-
21.0
-
-
-
-
40
-
Typical
100.0
11.5
20.47
21.35
25.35
0.4
30
0.84
45
- 86
Maximum
-
14.5
-
21.5
26.0
1.0
60
-
-
-
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances
4)
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252152B
2008-07-05
NJ8011-CS01
2/5
Bandpass Filter 252152B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
Output
50
Ω
L1
L2
L1 = 82 nH,
L2 = 68 nH
5. Marking Configuration
ITF
1)
08A001
2)
252152B
3)
4)
1) Manufacturer name
2) Lot Number
3) Part Number
4) Pad Number 1 Index
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252152B
2008-07-05
NJ8011-CS01
3/5
Bandpass Filter 252152B

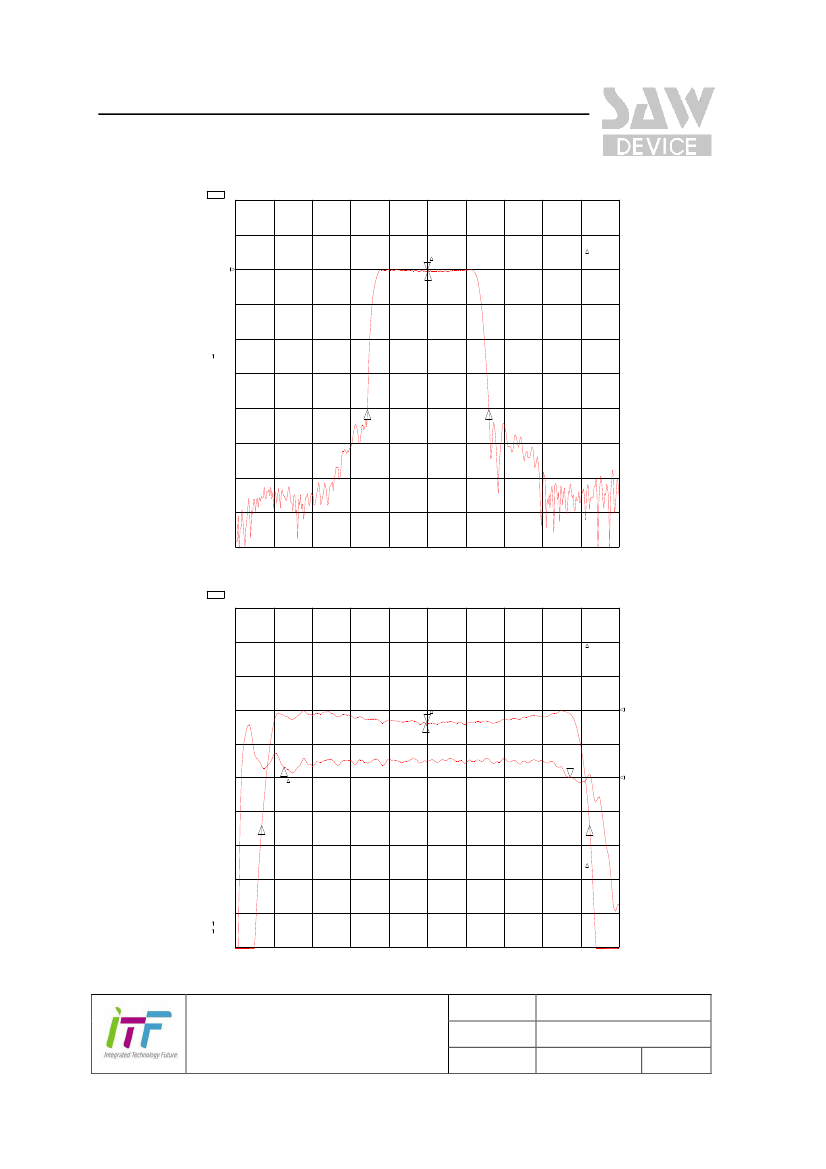

6. Typical Performance ( at +25℃ )
℃
CH1 S21
LOG
10 dB/
REF -10.8 dB
5 Jul 2008 14:17:21
1: 0. 0000 dB
0. 000 000 MHz
CH1 Markers
Cor
1
2
BW 25. 346201 MHz
:
cent : 100. 190709 MHz
Q 3. 9529
:
1_loss : -11 . 206 dB
REF=1
3
4
CENTER 100. 000 000 MHz
SPAN 80. 000 000 MHz
CH2 S21
CH4 S21
LOG
DEL
1 dB/
50 ns/
REF -10.8 dB
REF 816 ns
5 Jul 2008 14:17:44
1: 0. 0000 dB
0. 000 000 MHz
3:-15 . 215 ns
18. 640 000 MHz
CH2 Markers
BW 21. 350698 MHz
:
cent :
99. 902487 MHz
Q 4. 6791
:
1_loss : -11 . 213 dB
1
2
3
2
REF=1
Cor
Smo
3
CH4 Markers
4
REF=2
Cor
mean: 838. 49 ns
s. dev : 5. 0853 ns
p-p : 28. 809 ns
4
CENTER 100. 000 000 MHz
SPAN 25. 000 000 MHz
2
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252152B
2008-07-05
NJ8011-CS01
4/5

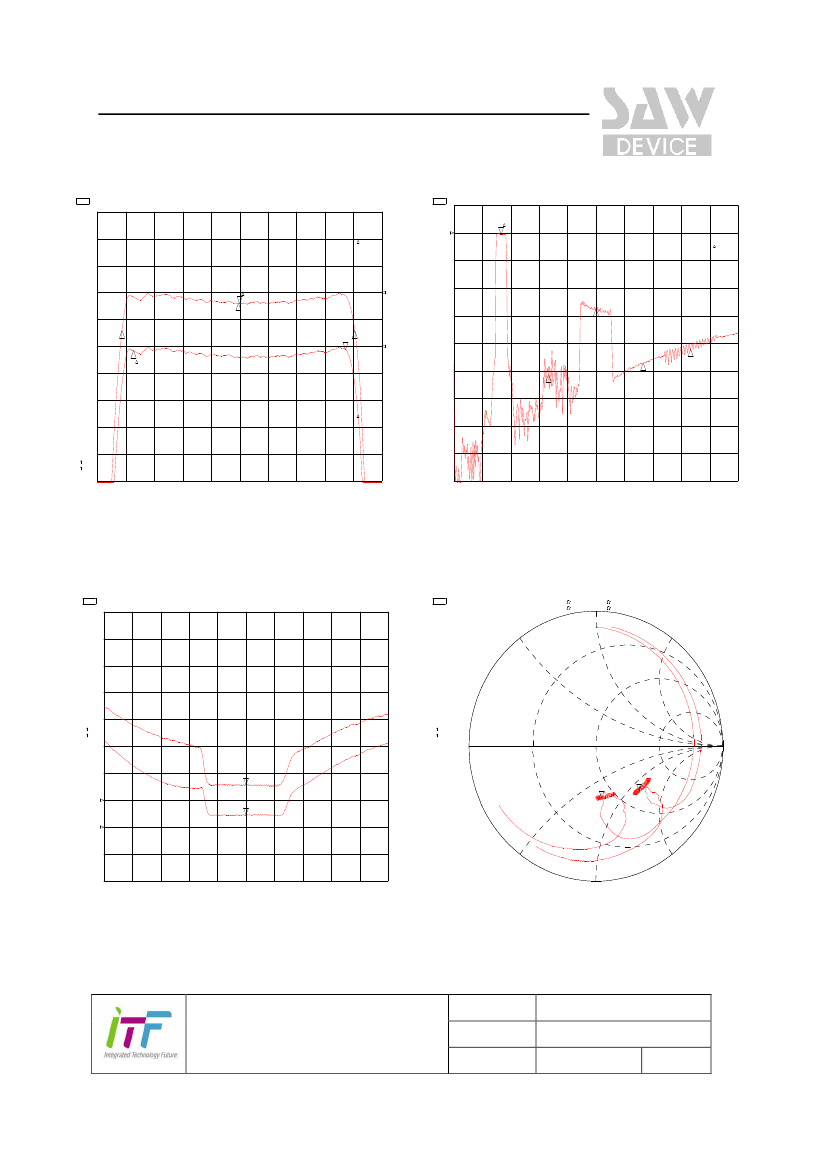

Bandpass Filter 252152B
CH2 S21
CH4 S21
LOG
LOG
1 dB/ REF -10.8 dB
1 dB/ REF -10.8 dB
5 Jul 2008 14:17:54
1: 0. 0000 dB
0. 000 000 MHz
3: . 03490 dB
18. 640 000 MHz
CH1 S21
LOG
1
10 dB/ REF -10.8 dB
5 Jul 2008 14:19:07
1: 0. 0000 dB
0. 000 000 MHz
CH2Markers
BW 20. 472513 MHz
:
cent : 99. 890052 MHz
Q 4. 8792
:
1_
loss : -11 . 214 dB
1
2
REF=1
CH1Markers
2:-50 . 801 dB
100. 000 MHz
3:-26 . 962 dB
200. 000 MHz
4:-46 . 688 dB
300. 000 MHz
5:-41 . 599 dB
3
REF=1
3
2
3 4
400. 000 MHz
5
4
Cor
CH4Markers
Cor
mean
:-11 . 061 dB
s. dev : . 11030 dB
p-p : . 40700 dB
2
REF=2
CENTER100. 000 000 MHz
SPAN 25. 000 000 MHz
4
2
START . 010 000 MHz
STOP 600. 000 000 MHz
CH1 S11
CH3 S22
SWR
SWR
5 /
5 /
REF 0
REF 0
5 Jul 2008 14:18:38
1: 2. 8219
100. 000 000 MHz
2: 2. 2664
100. 000 000 MHz
CH1 S11
CH3 S22
1 U FS
1 U FS
1: 70. 734
2: 39. 984
-61 . 238
-36 . 479
5 Jul 2008 14:18:14
25. 989 pF
100. 000 000 MHz
43. 630 pF
100. 000 000 MHz
Cor
Cor
Cor
Cor
1
2
2
1
CENTER100. 000 000 MHz
SPAN 80. 000 000 MHz
CENTER100. 000 000 MHz
SPAN 80. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252152B
2008-07-05
NJ8011-CS01
5/5
