SAW Bandpass Filter 201142C
1. Features
IF bandpass filter
High attenuation
Single-ended operation
DIP Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimension
12.8±0.5
5.5max 6.0max
7.6±0.2
2.5±0.2
ITF 04A001
201142C
35.1±0.5
Package : D3512
0.45±0.05
2.5±0.2
Pin Configuration
1
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Base : Fe(SPCC), Au plating over Ni plated
Cap : Cu & Cr Alloy, Ni Plated
Termination : Kovar, Au Plated
5
2, 4
3, 6
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
25.4±0.2
201142C
2004-03-22
NM3034-CS03
1/5
SAW Bandpass Filter 201142C
3. Specifications
Fo = 70 MHz
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Operating temperature range : -15℃ ~ +75℃
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Amplitude Ripple (Fo +/- 4.375 MHz)
Group Delay Variation (Fo +/- 4.375 MHz)
Absolute Delay
Ultimate Rejection
Temperature Coefficient of Frequency
MHz
dB
MHz
MHz
MHz
dB
nsec
usec
dB
ppm/°C
Minimum
-
-
-
10.0
-
-
-
-
50
-
Typical
70.0
25.5
9.85
10.1
11.13
0.9
80
3.18
55
-90
Maximum
-
27.0
-
-
11.25
1.2
150
-
-
-
Operating temperature range : + 25
℃
Center Frequency
Amplitude Ripple (Fo +/- 4.7 MHz)
Group Delay Variation (Fo +/- 4.7 MHz)
Notes :
1)
2)
3)
MHz
dB
nsec
Minimum
69.96
-
-
Typical
70.0
1.0
80
Maximum
70.04
1.2
150
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances
4)
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
201142C
2004-03-22
NM3034-CS03
2/5
SAW Bandpass Filter 201142C
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
Output
50
Ω
5. Marking Configuration
ITF
1)
04A001
2)
201142C
3)
1) Manufacturer name
2) Lot Number
3) Part Number
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
201142C
2004-03-22
NM3034-CS03
3/5
SAW Bandpass Filter 201142C

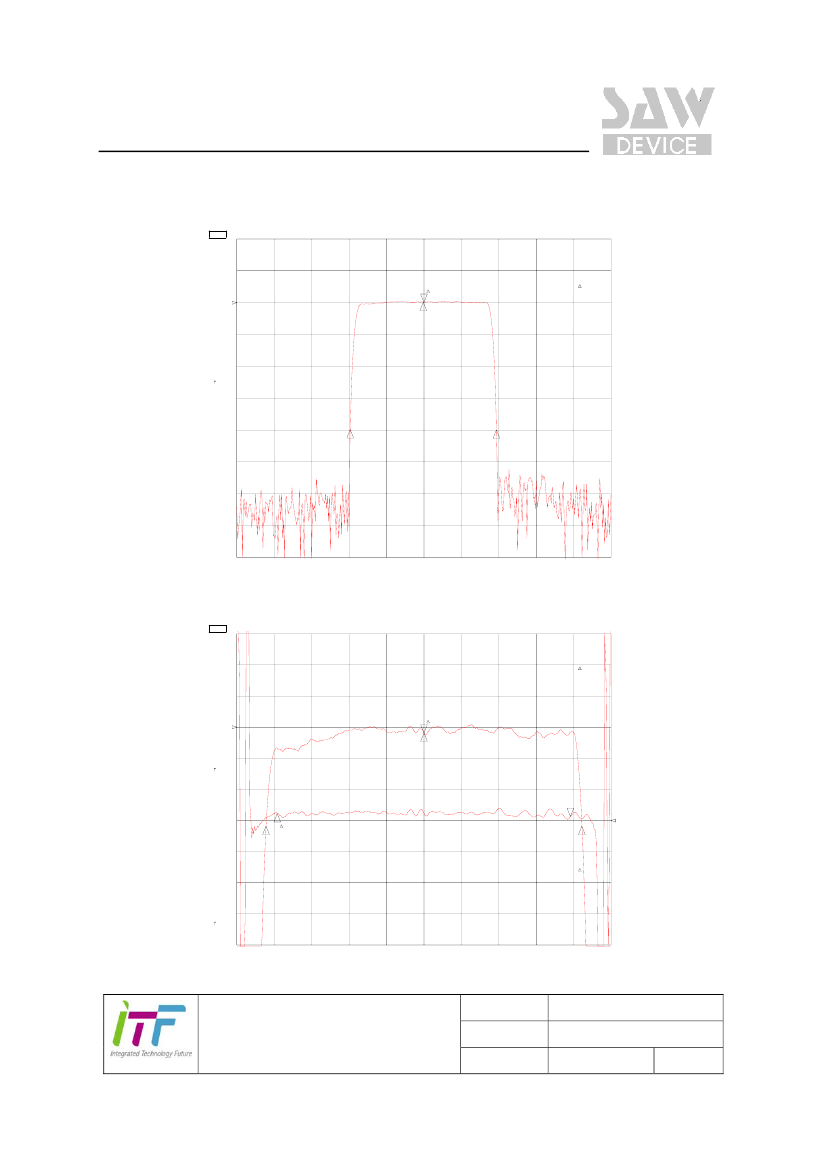

6. Typical Performance ( at +25℃ )
24 Jun 2004 10:49:23
1: 0. 0000 dB
0. 000 000 MHz
CH1
S21
LOG
10 dB/
REF -24.18 dB
CH1 Markers
1
Cor
2
BW
:
cent :
11. 129045
69. 954364
MHz
MHz
REF=1
Q: 6. 2857
1_loss : -24 . 097 dB
3
4
CENTER 70. 000 000 MHz
SPAN
28. 500 000 MHz
CH1
CH2
S21
S21
LOG
DEL
1 dB/
200 ns/
REF -23.85 dB
REF 3.132 us
24 Jun 2004 10:53:11
1: 0. 0000 dB
0. 000 000 MHz
3: -17 . 336 ns
9. 400 000 MHz
CH1 Markers
BW
:
Cor
cent :
10. 126718
70. 002917
MHz
MHz
REF=1
Q: 6. 9127
1
2
1_loss : -24 . 032 dB
3
Smo
Cor
3
CH2 Markers
mean : 3. 1777 us
s. dev : 12. 429 ns
p-p : 70. 190 ns
2
4
REF=2
CENTER 70. 000 000 MHz
SPAN
12. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
201142C
2004-03-22
NM3034-CS03
4/5

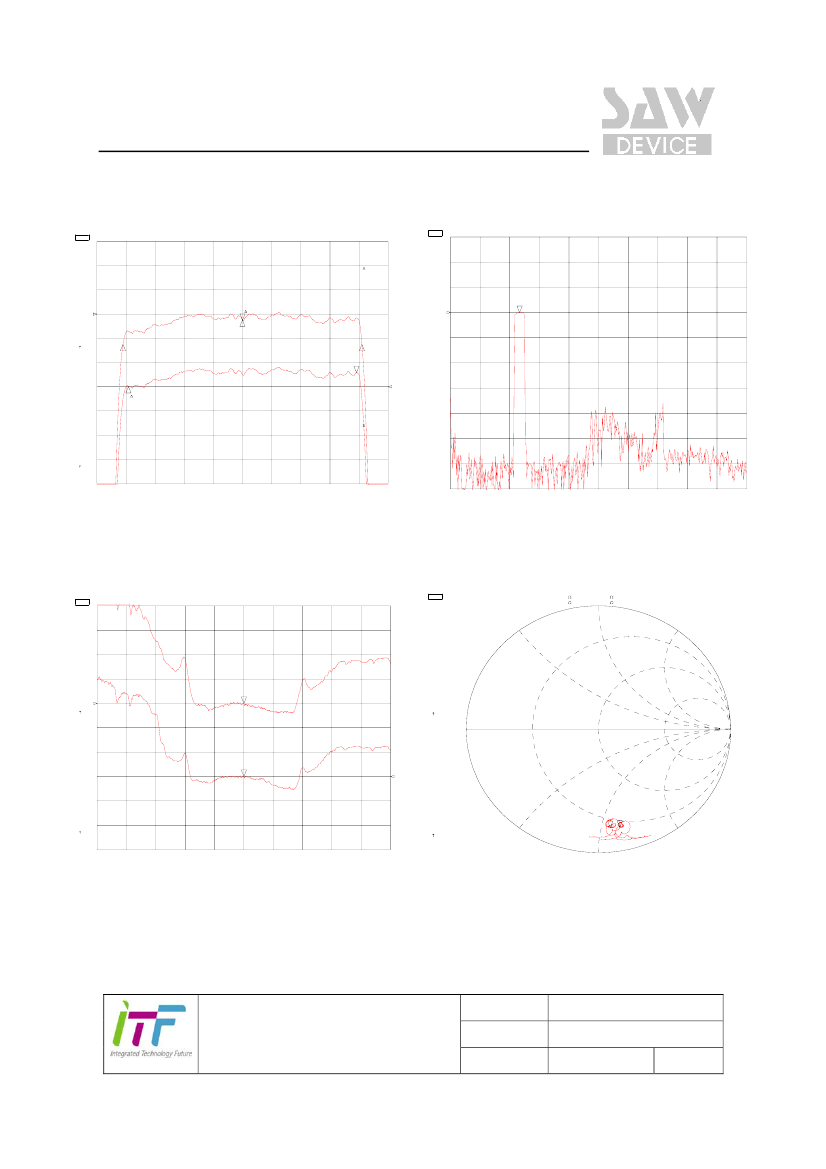

SAW Bandpass Filter 201142C
Typical Performance (at +25℃)
CH1
CH2
S21
S21
LOG
LOG
1 dB/
1 dB/
REF -23.85 dB
REF -24.59 dB
24 Jun 2004 10:51:35
1: 0. 0000 dB
0. 000 000 MHz
3: . 57170 dB
9. 400 000 MHz
CH1
S21
LOG
10 dB/
REF -23.31 dB
24 Jun 2004 10:55:19
1: -23 . 322 dB
70. 000 000 MHz
CH1 Markers
BW
:
Cor
cent :
9. 847853
69. 996419
MHz
MHz
REF=1
Q: 7. 1078
1
2
1_loss : -24 . 093 dB
1
3
3
4
2
Cor
CH2 Markers
mean : -24 . 077 dB
s. dev : . 20330 dB
p-p : . 87610 dB
REF=2
CENTER 70. 000 000 MHz
SPAN
12. 000 000 MHz
START
. 010 000 MHz
STOP 300 . 000 000 MHz
CH1
CH2
S11
S22
SWR
SWR
5 /
5 /
REF 9.72
REF 9.229
24 Jun 2004 10:54:43
1: 9. 7271
70. 000 000 MHz
2: 9. 2412
70. 000 000 MHz
CH1
CH2
S11
S22
1 U FS
1 U FS
1: 12. 594
2: 12. 006
-59 . 467
-54 . 373
24 Jun 2004 10:54:49
38. 234 pF
70. 000 000 MHz
41. 816 pF
70. 000 000 MHz
Cor
Cor
1
Cor
2
Cor
2 1
CENTER 70. 000 000 MHz
SPAN
28. 500 000 MHz
CENTER 70. 000 000 MHz
SPAN
28. 500 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
201142C
2004-03-22
NM3034-CS03
5/5
