SAW Bandpass Filter 251601B
1. Features
IF bandpass filter
High attenuation
Single-ended operation
DIP Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimension
12.7±0.5
5.5max 6.0max
7.6±0.2
ITF 04A001
251601B
0.45±0.05
20.3±0.5
2.5±0.2
Package : D2012
Pin Configuration
1
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Base : Fe(SPCC), Au plating over Ni plated
Cap : Cu & Cr Alloy, Ni Plated
Termination : Kovar, Au Plated
5
2, 4
3, 6
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
251601B
2004-03-22
NM3032-CS03
1/5
12.7±0.2
2.5±0.2
SAW Bandpass Filter 251601B
3. Specifications
Fo = 133.65 MHz
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Operating temperature range : 20℃ ~ 50℃
Center Frequency
Insertion Loss
Amplitude Ripple (126.0 ~ 141.0 MHz)
Group Delay Variation (126.0 ~ 141.0 MHz)
Absolute Delay
Out of Band Rejection
at 0.01 ~ 124.5 MHz
at 142.5 ~ 400.0 MHz
Temperature Coefficient of Frequency
dB
dB
ppm/°C
MHz
dB
dB
nsec
usec
Minimum
133.5
-
-
-
-
Typical
133.65
22.5
0.7
50
1.99
Maximum
133.8
25.0
1.5
150
-
40
40
-
45
45
-78
-
-
-
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances
4)
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
251601B
2004-03-22
NM3032-CS03
2/5
SAW Bandpass Filter 251601B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
L1
L2
Output
50
Ω
C1
L1 = 27 nH,
L2 = 27 nH
C1 = 51pF
5. Marking Configuration
ITF
1)
04A001
2)
251601B
3)
1) Manufacturer name
2) Lot Number
3) Part Number
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
251601B
2004-03-22
NM3032-CS03
3/5
SAW Bandpass Filter 251601B

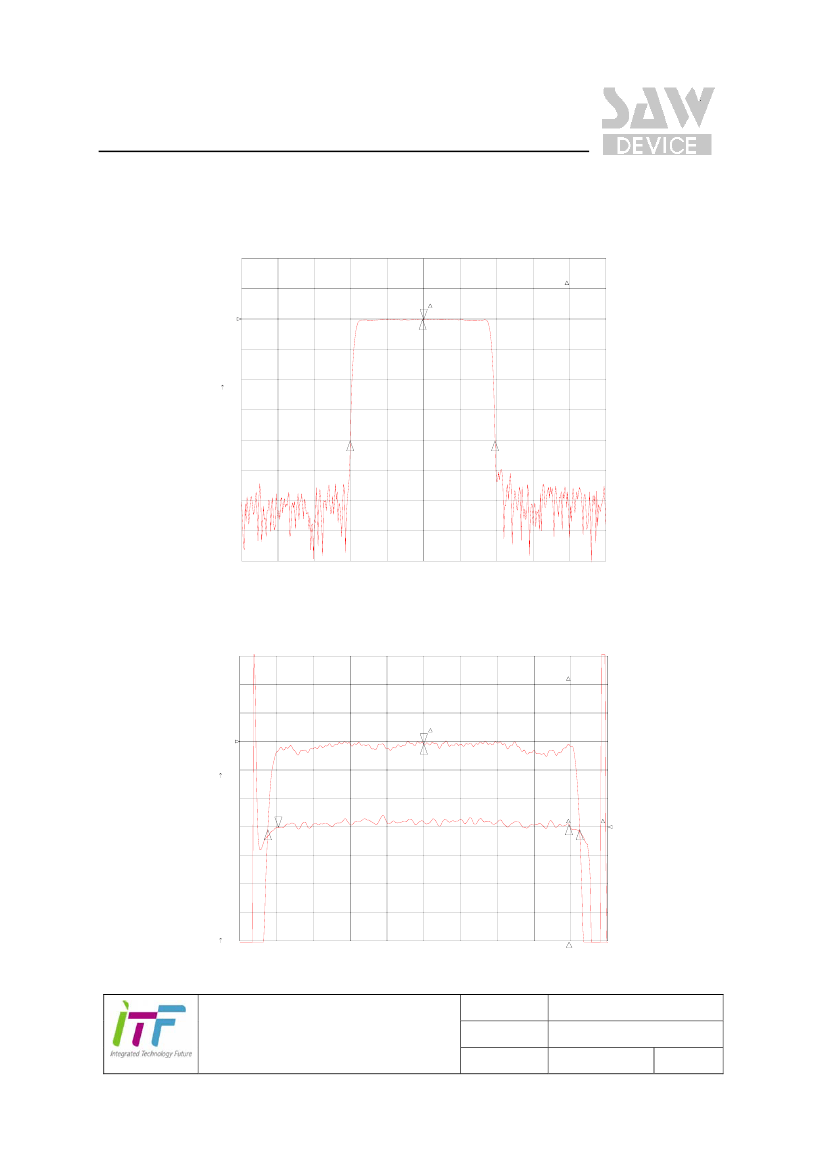

6. Typical Performance ( at +25℃ )
CH1
S 21
log MAG
10 dB/
9 Feb 2004 19:06:31
REF -23.21 dB
1_: 0
0.000 000 MHz
dB
PRm
BW: 17.482 521 MHz
Cor
1
cent: 133.529226 MHz
Q: 7.6379
2
1_ loss: -23.358 dB
REF=1
3
4
CH1 CENTER 133.650 000 MHz
SPAN 44.000 000 MHz
CH1
CH2
PRm
Cor
S 21
S 21
log MAG
delay
1 dB/
100 ns/
9 Feb 2004 19:39:03
1_: 0
dB
REF -23.08 dB
2_ 1.9748 us
REF 1.975 us
0.000 000 MHz
REF=1
BW: 16.102 066 MHz
cent: 133.648295 MHz
Q: 8.3001
1
1_ loss: -23.169 dB
2
2
PRm
Cor
-15.000 000 MHz
REF=
mean: 1.989 5 us
3
3
s.dev: 8.9108 ns
p-p: 48.828 ns
4
Smo
1
CENTER 133.650 000 MHz
SPAN 19.000 000 MHz
2
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
251601B
2004-03-22
NM3032-CS03
4/5

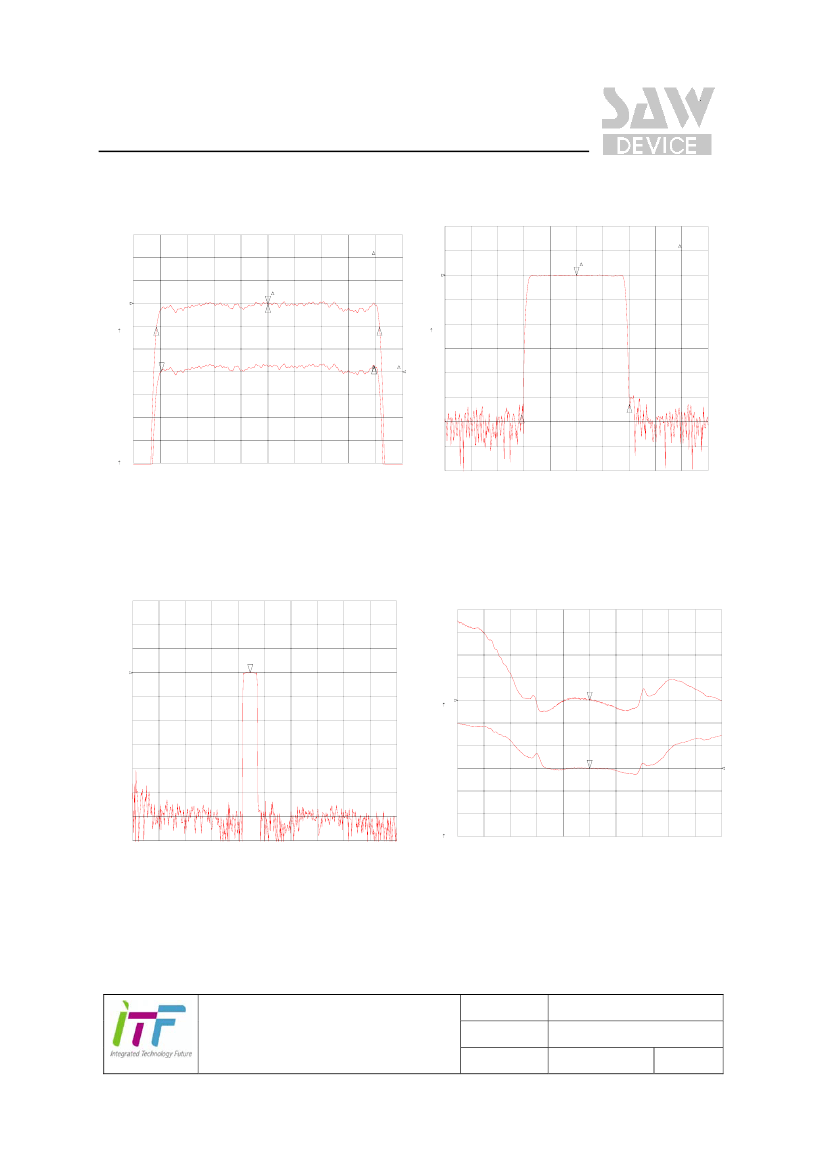

SAW Bandpass Filter 251601B
CH1
CH2
PRm
Cor
S 21
S 21
log MAG
log MAG
1 dB/
1 dB/
9 Feb 2004 19:38:20
1_: 0
dB
REF -23.45 dB
REF -23.72 dB
2_ -.1747 dB
0.000 000 MHz
REF=1
BW: 15.741 006 MHz
cent: 133.655032 MHz
Q: 8.4909
1
1_ loss: -23.491 dB
CH1
S 21
log MAG
10 dB/
9 Feb 2004 19:15:51
REF -23.55 dB
1_: 0
0.000 000 MHz
dB
PRm
Cor
1
REF=1
2_:-57.062 dB
-9.0 MHz
3_:-52.822 dB
9.0 MHz
2
3
2
PRm
Cor
-15.000 000 MHz
4
REF=
3
mean:-23.563 dB
s.dev: .1158 dB
p-p: .4995 dB
3
2
1
CENTER 133.650 000 MHz
SPAN 19.000 000 MHz
2
CH1 CENTER 133.650 000 MHz
SPAN 44.000 000 MHz
CH1
S 21
log MAG
10 dB/
9 Feb 2004 19:26:09
1_:-23.63 dB
REF -23.74 dB
133.650 000 MHz
CH1
CH2
PRm 1
Cor
S 11
S 22
SWR
SWR
5 /
5 /
REF 7.437
REF 4.043
9 Feb 2004 19:40:48
1_ 7.4448
2_: 4.0396
133.650 000 MHz
PRm
1
1
133.650 000 MHz
2
PRm
Cor
2
START
.010 000 MHz
STOP 300.000 000 MHz
CENTER 133.650 000 MHz
SPAN 44.000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
251601B
2004-03-22
NM3032-CS03
5/5
