LCHP-0205-20-U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> LCHP-0205-20-U

LCHP-0205-20-U: DescriptionDirectional Coupler, 250MHz Min, 500MHz Max, 0.15dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size72KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric Compare View All

LCHP-0205-20-U Overview

Directional Coupler, 250MHz Min, 500MHz Max, 0.15dB Insertion Loss-Max,

LCHP-0205-20-U Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	56.99 dBm
Maximum insertion loss	0.15 dB
Maximum operating frequency	500 MHz
Minimum operating frequency	250 MHz
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.15
Base Number Matches	1

Preview

Download Datasheet

View All

Low Frequency High Power

Directional Couplers

RLC Electronics’ low frequency high power directional couplers

offer accurate coupling, low insertion loss and high directivity

in a compact package. The standard units are optimized for

octave bandwidths and are available with a choice of coupling

values. These units are ideal for sampling power with a negligi-

ble effect on the transmission line and very low intermodulation

products.

Specifications

LCHP-0205

-1-2

LCHP-0510

-1-2

Model

Number

Frequency

Range (GHz)

Directivity

(Min.)

Primary

VSWR (Max.)

Secondary

VSWR (Max.)

Insertion

Loss (Max.)

LCHP–0205–

LCHP–0510–

250 – 500

500 – 1000

25dB

1.15

.15 dB

.20 dB

Impedance:

50 ohms

Power:

500 watts avg., 5kw peak

Coupling (NOM):

20 or 30dB

Accuracy (includes frequency variation ):

±1.25dB

Intermodulation:

Better than -130dBc

Connectors:

‘SMA’ female

To designate the switch desired use:

(1) Coupling value 20 or 30

Example: LCHP–0205–20–T is a 250–500 MHz, 20dB coupler with 2 watt termination.

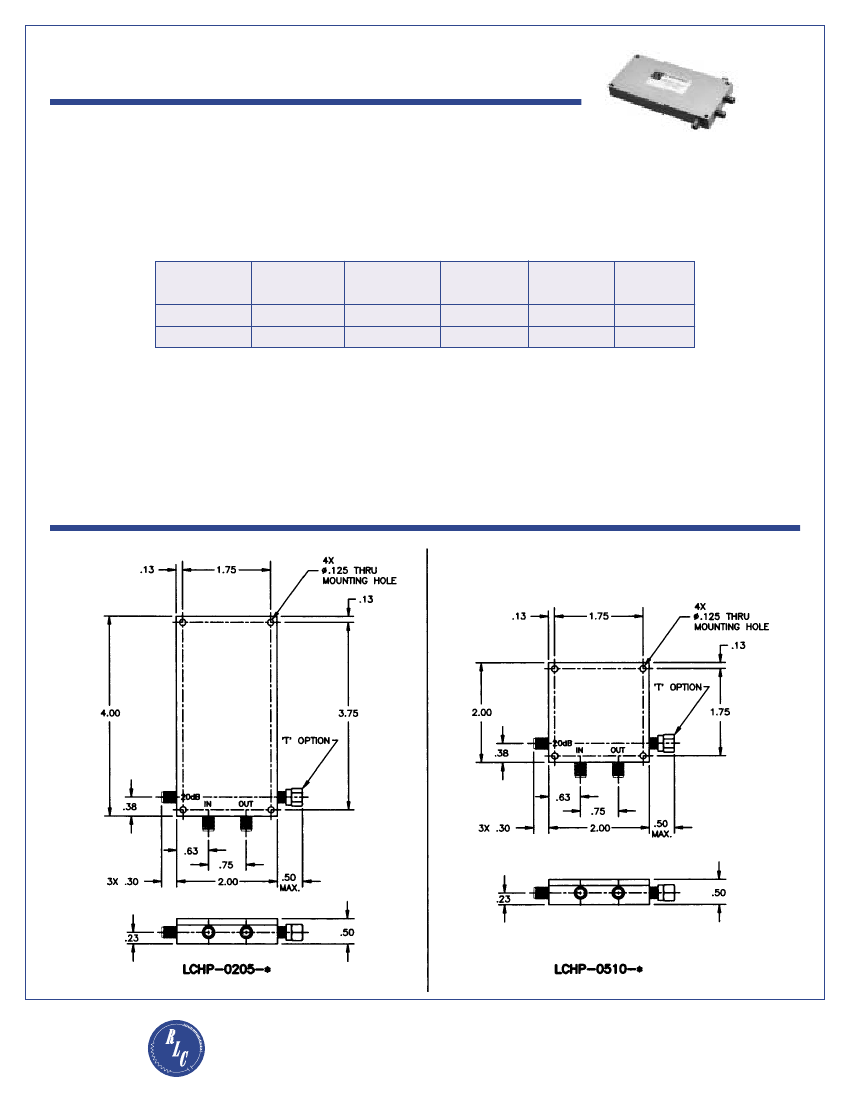

Outline Drawing

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com

LCHP-0205-20-U Related Products

	LCHP-0205-20-U	LCHP-0205-30-U	LCHP-0510-20-U	LCHP-0510-30-U
Description	Directional Coupler, 250MHz Min, 500MHz Max, 0.15dB Insertion Loss-Max,	Directional Coupler, 250MHz Min, 500MHz Max, 0.15dB Insertion Loss-Max,	Directional Coupler, 500MHz Min, 1000MHz Max, 0.2dB Insertion Loss-Max,	Directional Coupler, 500MHz Min, 1000MHz Max, 0.2dB Insertion Loss-Max,
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SMA-F	SMA-F	SMA-F	SMA-F
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	56.99 dBm	56.99 dBm	56.99 dBm	56.99 dBm
Maximum insertion loss	0.15 dB	0.15 dB	0.2 dB	0.2 dB
Maximum operating frequency	500 MHz	500 MHz	1000 MHz	1000 MHz
Minimum operating frequency	250 MHz	250 MHz	500 MHz	500 MHz
RF/Microwave Device Types	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.15	1.15	1.15	1.15
