HC-49/U-SMD.C-FREQ-CL datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> HC-49/U-SMD.C-FREQ-CL

Preview

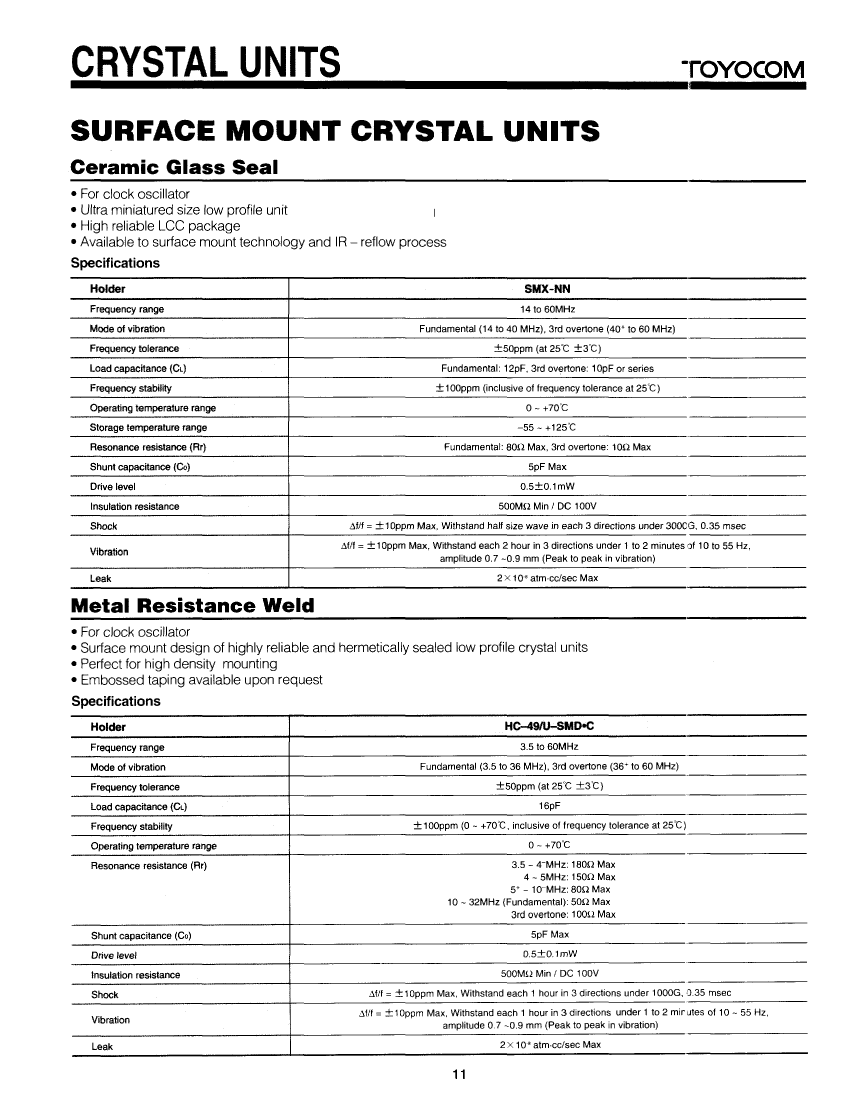

HC-49/U-SMD.C-FREQ-CL: DescriptionParallel - Fundamental Quartz Crystal, 3.5MHz Min, 36MHz Max; CategoryPassive components Crystal/resonator; File Size65KB，1 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

HC-49/U-SMD.C-FREQ-CL Overview

Parallel - Fundamental Quartz Crystal, 3.5MHz Min, 36MHz Max

HC-49/U-SMD.C-FREQ-CL Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.01%
frequency tolerance	50 ppm
load capacitance	16 pF
Manufacturer's serial number	HC-49/U-SMD.C
Installation features	SURFACE MOUNT
Maximum operating frequency	36 MHz
Minimum operating frequency	3.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

HC-49/U-SMD.C-FREQ-CL Related Products

	HC-49/U-SMD.C-FREQ-CL	HC-49/U-SMD.C-FREQ-3OT-SR	HC-49/U-SMD.C-FREQ3-SR	HC-49/U-SMD.C-FREQ-3OT-CL	HC-49/U-SMD.C-FREQ1-SR	HC-49/U-SMD.C-FREQ4-SR	SMX-NN-FREQ-3OT-SR	SMX-NN-FREQ-3OT-CL
Description	Parallel - Fundamental Quartz Crystal, 3.5MHz Min, 36MHz Max	Series - 3Rd Overtone Quartz Crystal, 36MHz Min, 60MHz Max	Series - Fundamental Quartz Crystal, 5MHz Min, 10MHz Max	Parallel - 3Rd Overtone Quartz Crystal, 36MHz Min, 60MHz Max	Series - Fundamental Quartz Crystal, 3.5MHz Min, 4MHz Max	Series - Fundamental Quartz Crystal, 10MHz Min, 32MHz Max	Series - 3Rd Overtone Quartz Crystal, 40MHz Min, 60MHz Max	Parallel - 3Rd Overtone Quartz Crystal, 40MHz Min, 60MHz Max
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	SERIES - 3RD OVERTONE	SERIES - FUNDAMENTAL	PARALLEL - 3RD OVERTONE	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - 3RD OVERTONE	PARALLEL - 3RD OVERTONE
Drive level	500 µW	500 µW	500 µW	500 µW	500 µW	500 µW	500 µW	500 µW
frequency stability	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%
frequency tolerance	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm
Manufacturer's serial number	HC-49/U-SMD.C	HC-49/U-SMD.C	HC-49/U-SMD.C	HC-49/U-SMD.C	HC-49/U-SMD.C	HC-49/U-SMD.C	SMX-NN	SMX-NN
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	36 MHz	60 MHz	10 MHz	60 MHz	4 MHz	32 MHz	60 MHz	60 MHz
Minimum operating frequency	3.5 MHz	36 MHz	5 MHz	36 MHz	3.5 MHz	10 MHz	40 MHz	40 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Base Number Matches	1	1	1	1	1	1	1	-
Maker	-	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	-	-	Seiko Epson Corporation
Series resistance	-	100 Ω	80 Ω	-	180 Ω	50 Ω	10 Ω	-
