MCM511000AZ70 datasheet, PDF - EEWORLD Datasheet

MCM511000AZ70: DescriptionFast Page DRAM, 1MX1, 70ns, CMOS, PZIP20, 2.54 MM PITCH, PLASTIC, ZIP-20; Categorystorage storage; File Size1MB，16 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

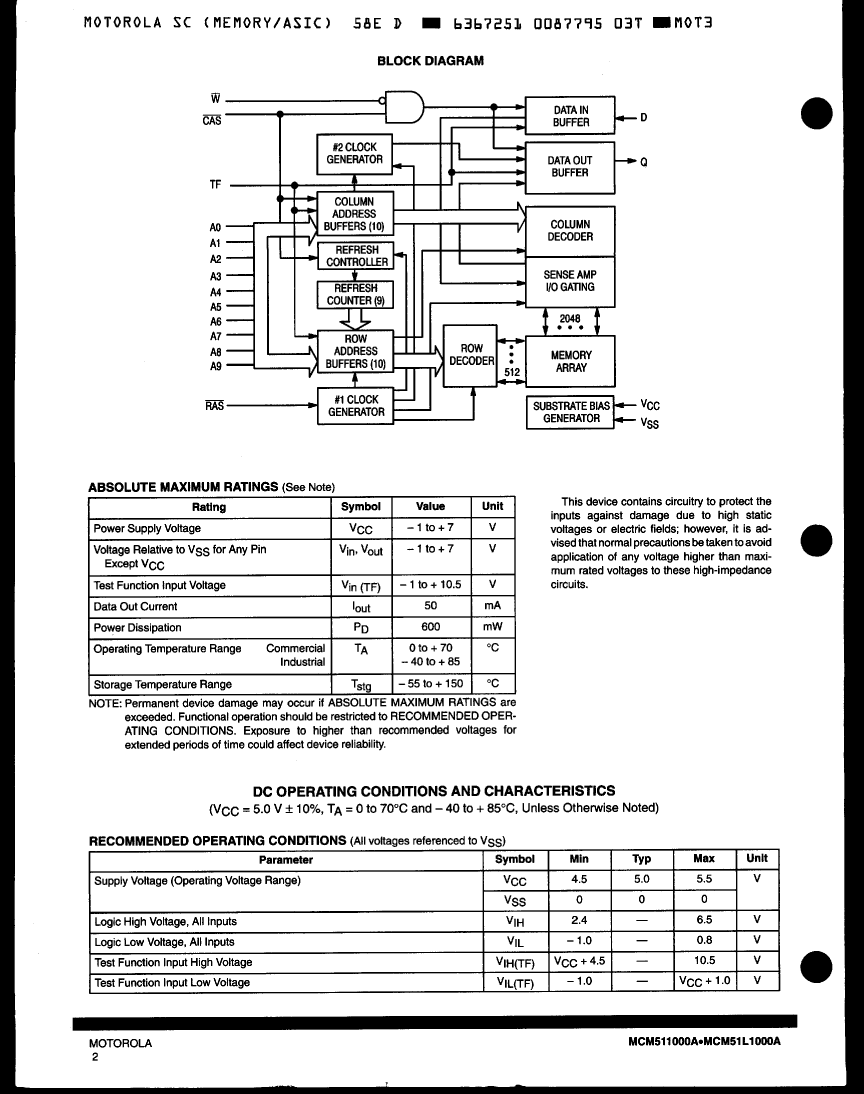

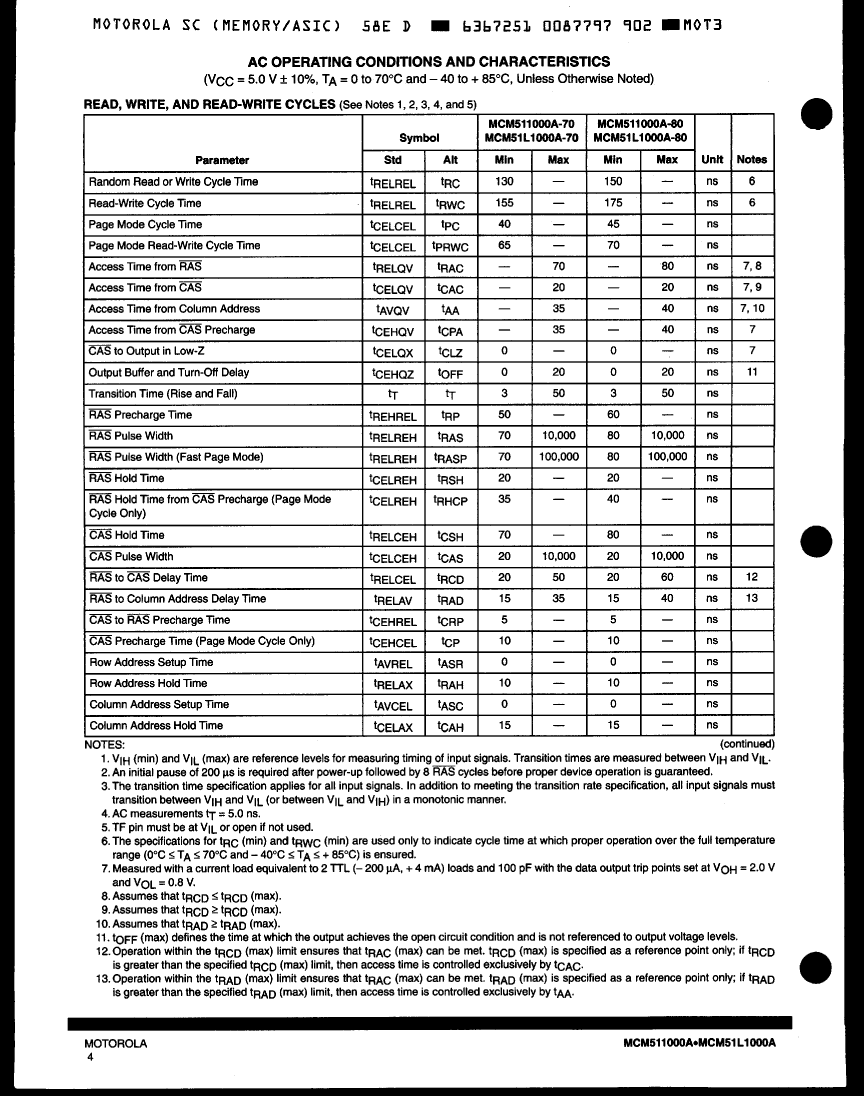

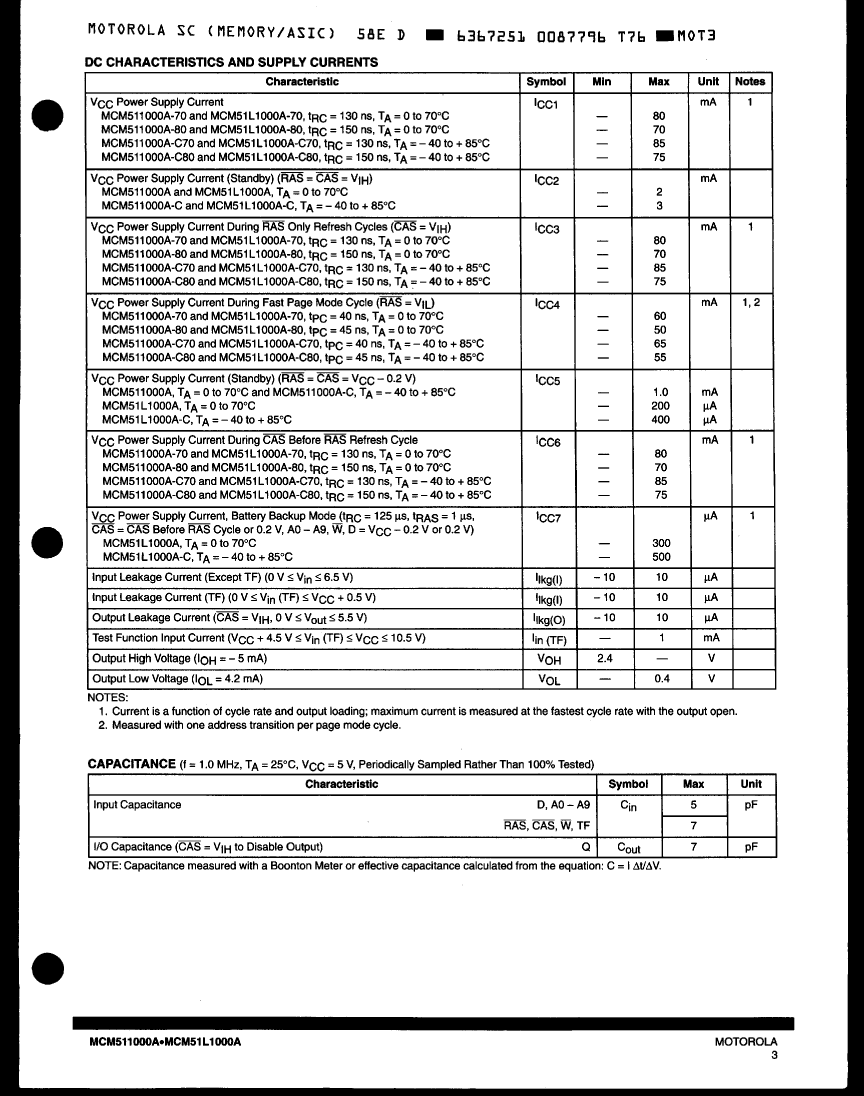

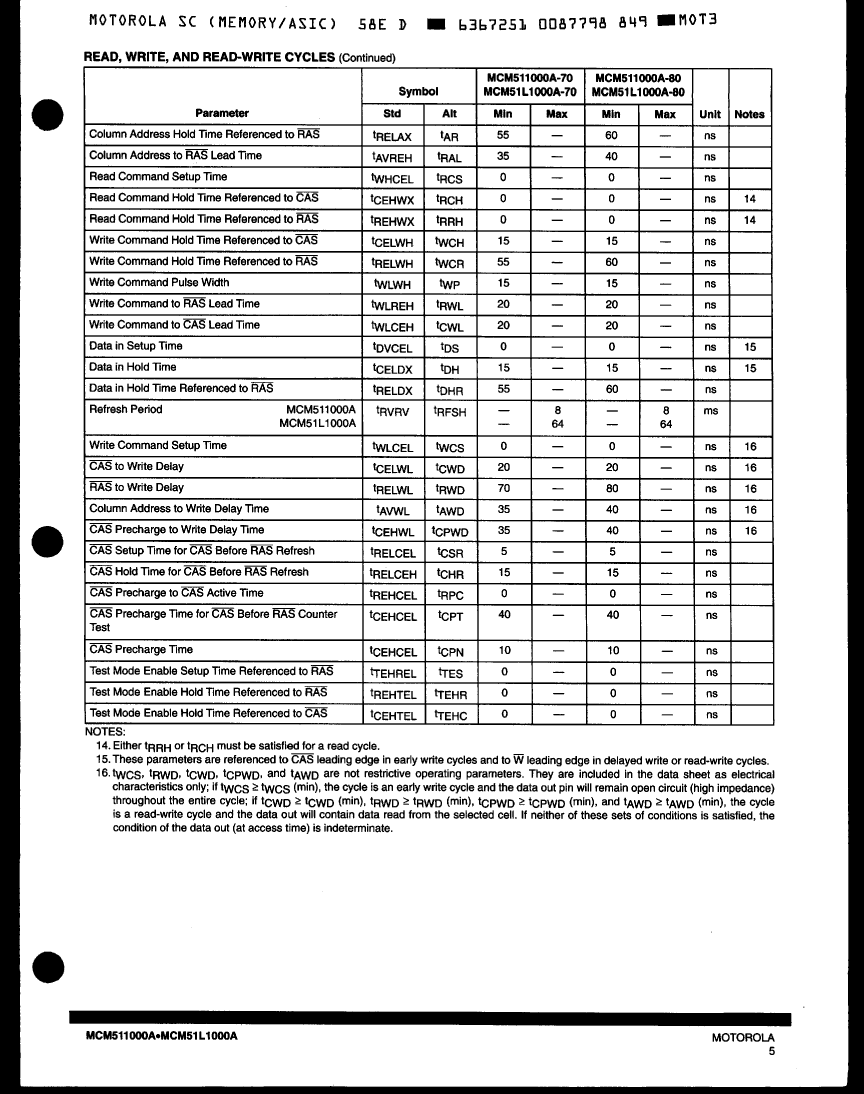

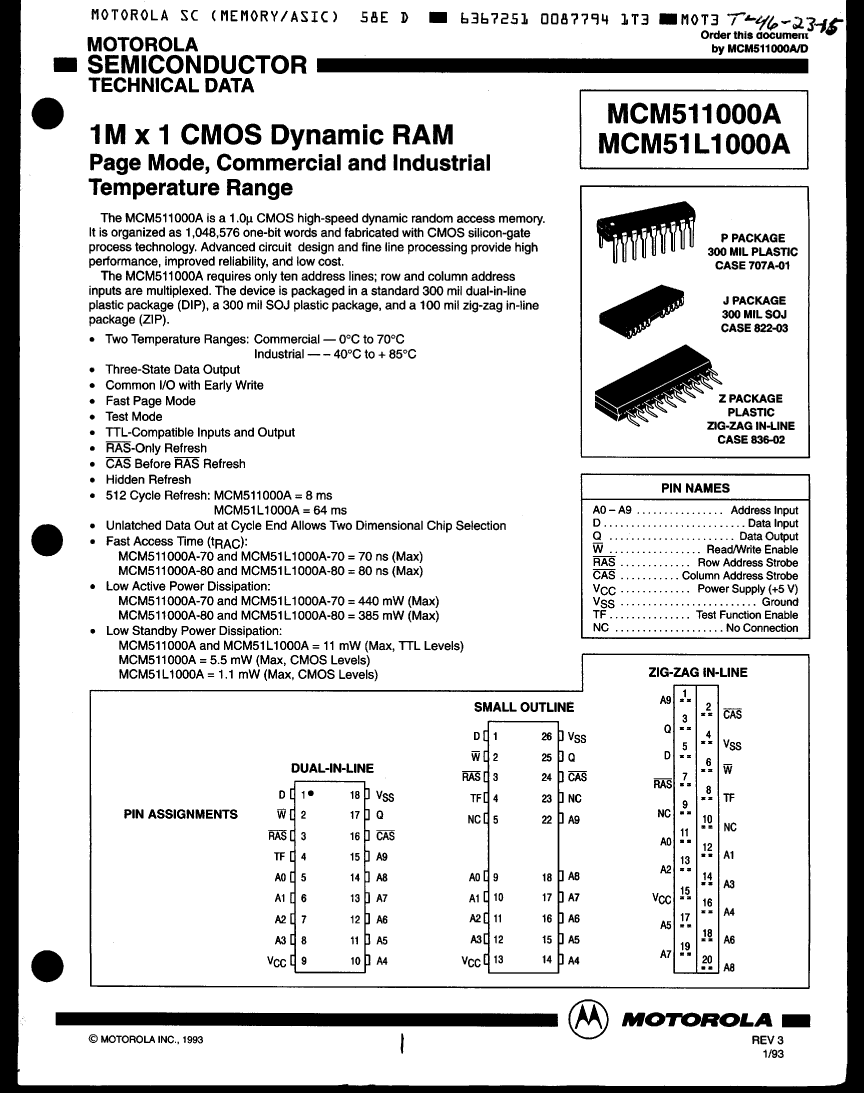

MCM511000AZ70 Overview

Fast Page DRAM, 1MX1, 70ns, CMOS, PZIP20, 2.54 MM PITCH, PLASTIC, ZIP-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	2.54 MM PITCH, PLASTIC, ZIP-20
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
I/O type	SEPARATE
JESD-30 code	R-PZIP-T20
JESD-609 code	e0
length	25.715 mm
memory density	1048576 bit
Memory IC Type	FAST PAGE DRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	20
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX1
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Encapsulate equivalent code	ZIP20,.1
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	10.16 mm
Maximum standby current	0.001 A
Maximum slew rate	0.08 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG
width	2.85 mm
Base Number Matches	1
