SM-5EP1N8AQ004: DescriptionCircular Connector, 6 Contact(s), Zinc Alloy, Male, Crimp Terminal; CategoryThe connector The connector; File Size633KB，1 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

SM-5EP1N8AQ004 Overview

Circular Connector, 6 Contact(s), Zinc Alloy, Male, Crimp Terminal

SM-5EP1N8AQ004 Parametric

Parameter Name	Attribute value
Maker	PHOENIX CONTACT
Reach Compliance Code	unknown
Other features	SHIELDED, COMPATIBLE CONTACTS: SM-20KP006; SM-36KP005
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NICKEL GOLD
Contact completed and terminated	NICKEL GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SM-5EP1N8AQ004
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ZINC ALLOY
Termination type	CRIMP
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

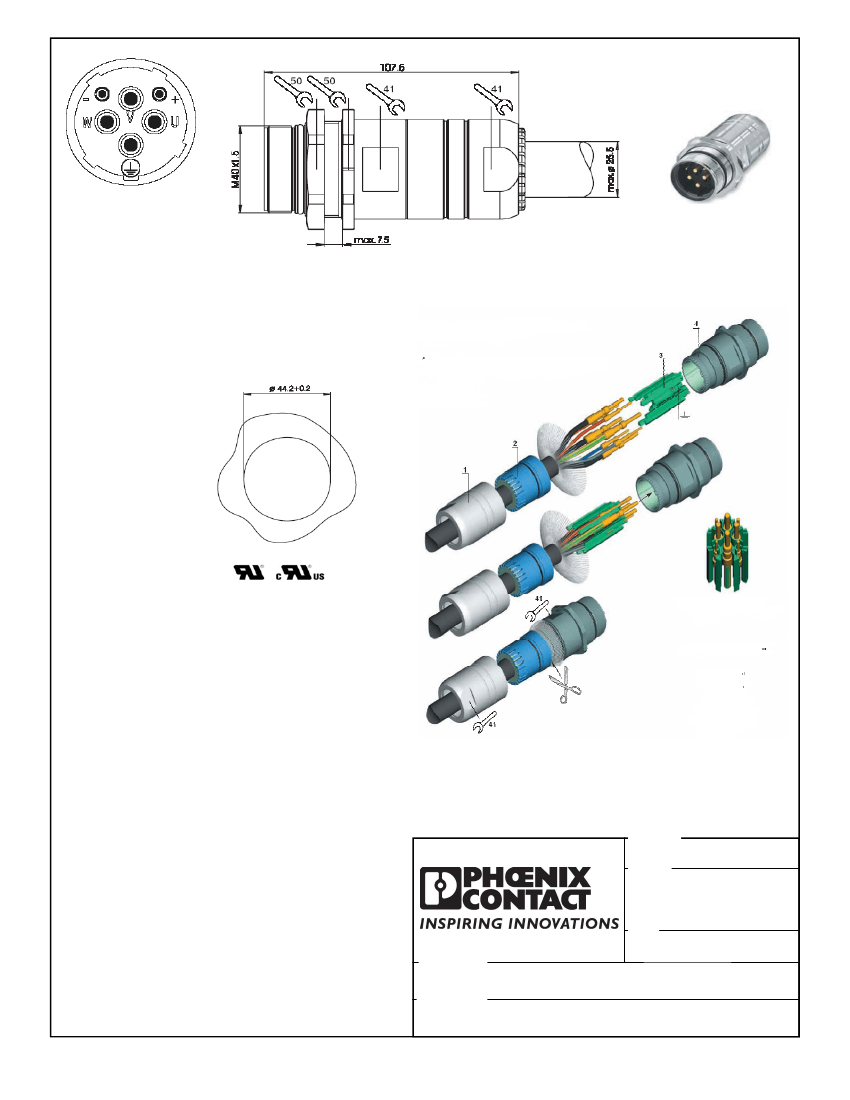

Shielded cable/flange connector, short version

M 40, cable entry 17.0—21.0 mm

PE connecting earth pin to the shell

6 position male (2+3+PE) with hex

flange, rear mount, O-ring and hex nut

from the front

Technical details:

Shell material:

Insert material:

Contact material:

Contact plating:

zinc die-cast, nickel plated

Thermoplastic PA 66 UL94V0

CuZn

nickel + gold plated

The following contacts can be used, but not included

in this part number:

2 x 2.0 mm contacts

24-17AWG

18-16AWG

17-14AWG

14-12AWG

SM-20KP006

SM-20KP005

SM-20KP007

SM-20KP008

4 x 3.6 mm contacts

17-14AWG SM-36KP005

14-12AWG SM-36KP006

10-8AWG SM-36KP007

IP 67 (mated)

Fluor rubber (FPM)

- 40°C (-40°F)

+ 125°C (+ 257°F)

9/70 Amp

250/630 Volt

≥

10

12

Ω

DRAWN BY

REVISED

Se

Protection:

O-rings/gaskets:

Temperature:

Rated current:

Rated voltage:

Insulation resistance:

00-00-00

DATE

DESCRIPTION

02-28-07

Cable/flange connector M 40

PART NUMBER

SM-5EP1N8AQ004
