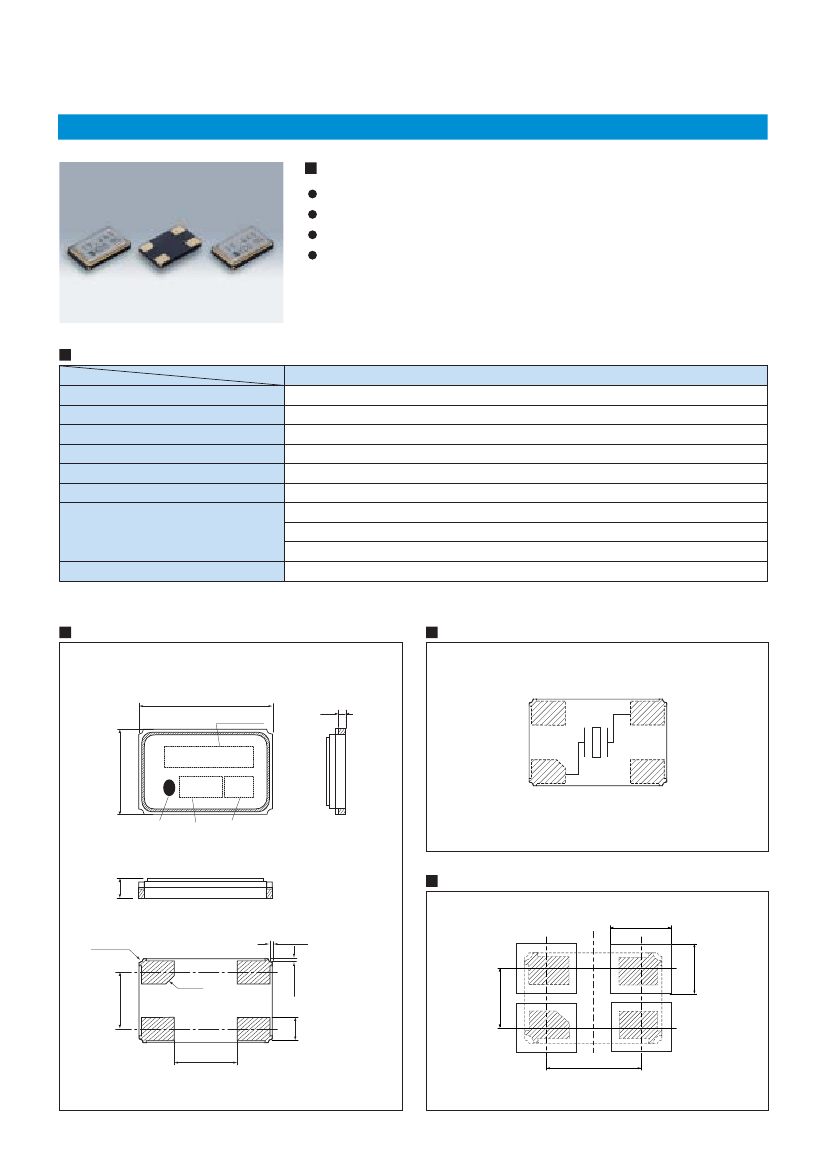

SMD Type Crystal Resonators

DSX531S

Features

Miniature SMD crystal resonators.

（height 0.75mm）

Higher precision and reliability.

Good for automatic mounting and reflow soldering.

Suitable for various applications such as mobile

telecom equipments.

Generic Specification

Item

Frequency Range

Vibration Mode

Load Capacitance

Drive Level

Frequency Tolerance

Series Resistance

Frequency Characteristics

over Temperature

Storage Temperature Range

Packing Unit : 1000pcs./reel

Type

DSX531S

12∼35MHz

Fundamental

Series, 8pF, 10pF, 12pF

10μW(300μW max.)

±10×10

-6

, ±20×10

-6

, ±30×10

-6

(at 25℃)

50Ω max.

±5×10

-6

／−10∼＋60℃ (Ref. to 25℃)

±10×10

-6

／−20∼＋70℃ (Ref. to 25℃)

±15×10

-6

／−30∼＋85℃ (Ref. to 25℃)

−40∼＋85℃

Consult our sales representative for other specifications or special specifications.

Dimensions[mm]

Internal Connections

〈Top View〉

4.9±0.1

Frequency

0.3

#4

#3

3.1±0.1

12.600

#1

#2

ＫＤＳ 1G

Logo

Lot.No.

#2&#4 connected to cover

#1pin is marked

0.75±0.1

Recommended Land Pattern

1.6

[mm]

4−R0.2

#1

C0.3

2.05

#2

4−0.1

1.35

0.85

2.05

3.5

#4

#3

2.3

4−0.1

8
