LH8530AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LH8530AP

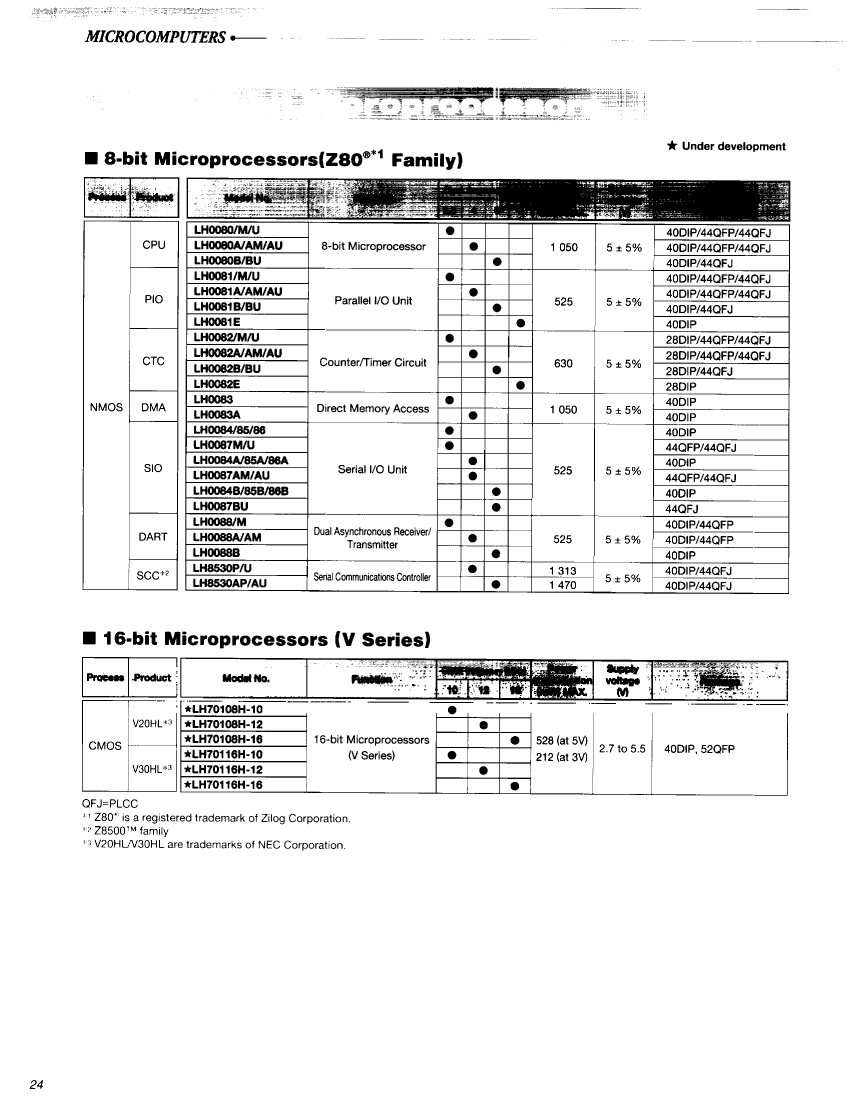

LH8530AP: DescriptionSerial I/O Controller, 1 Channel(s), NMOS, PDIP40, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size52KB，1 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH8530AP Overview

Serial I/O Controller, 1 Channel(s), NMOS, PDIP40, DIP-40

LH8530AP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP-40
Reach Compliance Code	unknown
Bus compatibility	Z80 FAMILY
maximum clock frequency	6 MHz
Data encoding/decoding methods	NRZ
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52 mm
Number of serial I/Os	1
Number of terminals	40
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

Preview

Download Datasheet

View All

LH8530AP Related Products

	LH8530AP	LH0088M	LH8530AU	LH8530U	LH8530P	LH0088AM	LH0088B
Description	Serial I/O Controller, 1 Channel(s), NMOS, PDIP40, DIP-40	Serial I/O Controller, 2 Channel(s), NMOS, PQFP44, QFP-44	Serial I/O Controller, 1 Channel(s), NMOS, PQCC44, PLASTIC, LCC-44	Serial I/O Controller, 1 Channel(s), NMOS, PQCC44, PLASTIC, LCC-44	Serial I/O Controller, 1 Channel(s), NMOS, PDIP40, DIP-40	Serial I/O Controller, 2 Channel(s), NMOS, PQFP44, QFP-44	Serial I/O Controller, 2 Channel(s), NMOS, PDIP40, DIP-40
package instruction	DIP-40	QFP-44	PLASTIC, LCC-44	PLASTIC, LCC-44	DIP-40	QFP-44	DIP-40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Bus compatibility	Z80 FAMILY	Z80 FAMILY	Z80 FAMILY	Z80 FAMILY	Z80 FAMILY	Z80 FAMILY	Z80 FAMILY
maximum clock frequency	6 MHz	2.5 MHz	6 MHz	4 MHz	4 MHz	4 MHz	6 MHz
Data encoding/decoding methods	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ
JESD-30 code	R-PDIP-T40	S-PQFP-G44	S-PQCC-J44	S-PQCC-J44	R-PDIP-T40	S-PQFP-G44	R-PDIP-T40
Number of serial I/Os	1	2	1	1	1	2	2
Number of terminals	40	44	44	44	40	44	40
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QFP	QCCJ	QCCJ	DIP	QFP	DIP
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	FLATPACK	CHIP CARRIER	CHIP CARRIER	IN-LINE	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	YES	NO
technology	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS
Terminal form	THROUGH-HOLE	GULL WING	J BEND	J BEND	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	QUAD	QUAD	QUAD	DUAL	QUAD	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	-	-
JESD-609 code	e0	-	e0	e0	e0	-	-
length	52 mm	-	16.51 mm	16.51 mm	52 mm	-	52 mm
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-
Terminal pitch	2.54 mm	-	1.27 mm	1.27 mm	2.54 mm	-	2.54 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
width	15.24 mm	-	16.51 mm	16.51 mm	15.24 mm	-	15.24 mm
Maker	-	-	SHARP	SHARP	SHARP	SHARP	SHARP
