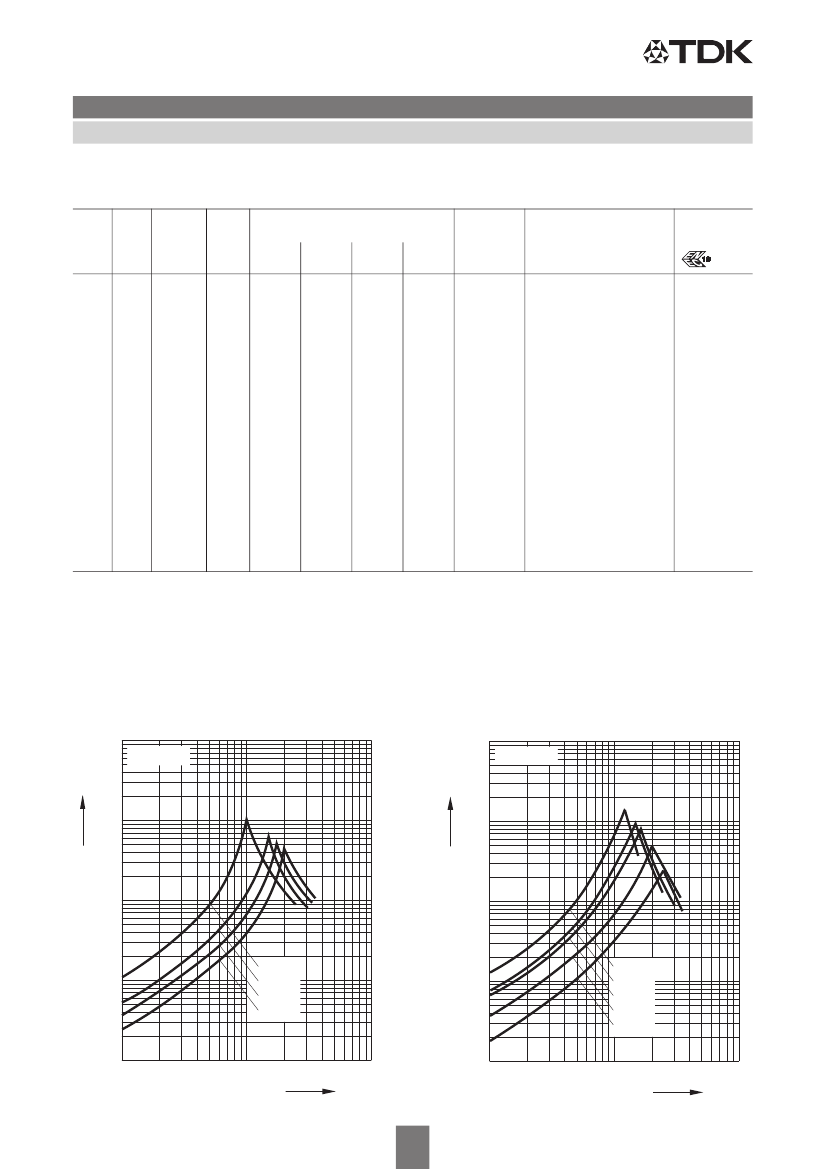

1 ELEMENT, 6uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| structure | Tubular |
| core material | Ferrite |
| DC Resistance | 0.01 Ω |
| Nominal inductance(L) | 6 µH |
| Inductor Applications | RF INDUCTOR |
| Inductor type | GENERAL PURPOSE INDUCTOR |
| JESD-609 code | e3 |
| Lead diameter | 0.95 mm |
| Lead length | 36.5 mm |
| Number of functions | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package diameter | 7 mm |
| Package length | 29 mm |
| Package form | Axial |
| method of packing | Bulk |
| Maximum rated current | 6 A |
| self resonant frequency | 200 MHz |
| Shape/Size Description | TUBULAR PACKAGE |
| shield | NO |
| special characteristics | DC RESISTANCE IS MEASURED AT :20% |
| surface mount | NO |
| Terminal surface | Tin (Sn) |
| Terminal location | AXIAL |
| Terminal shape | WIRE |
| Test frequency | 1 MHz |
| Tolerance | 20% |
| Base Number Matches | 1 |
| B82111B0000C017 | B82111B0000C018 | B82111B0000C019 | B82111B0000C021 | B82111B0000C023 | B82111B0000C020 | B82111B0000C013 | B82111B0000C012 | B82111B0000C011 | B82111B0000C016 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | 1 ELEMENT, 6uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT | 1 ELEMENT, 11uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT | 1 ELEMENT, 13uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT | 1 ELEMENT, 5uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT | 1 ELEMENT, 15uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT | 1 ELEMENT, 20uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT | 1 ELEMENT, 8uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT | 1 ELEMENT, 6uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT | 1 ELEMENT, 4uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT | 1 ELEMENT, 3uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED, ROHS COMPLIANT |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| structure | Tubular | Tubular | Tubular | Tubular | Tubular | Tubular | Tubular | Tubular | Tubular | Tubular |
| core material | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| DC Resistance | 0.01 Ω | 0.02 Ω | 0.024 Ω | 0.005 Ω | 0.024 Ω | 0.054 Ω | 0.025 Ω | 0.017 Ω | 0.014 Ω | 0.006 Ω |
| Nominal inductance(L) | 6 µH | 11 µH | 13 µH | 5 µH | 15 µH | 20 µH | 8 µH | 6 µH | 4 µH | 3 µH |
| Inductor Applications | RF INDUCTOR | RF INDUCTOR | RF INDUCTOR | RF INDUCTOR | RF INDUCTOR | RF INDUCTOR | RF INDUCTOR | RF INDUCTOR | RF INDUCTOR | RF INDUCTOR |
| Inductor type | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR | GENERAL PURPOSE INDUCTOR |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 | e3 | e3 | e3 | e3 | e3 |
| Lead diameter | 0.95 mm | 0.71 mm | 0.67 mm | 1.3 mm | 0.75 mm | 0.5 mm | 0.63 mm | 0.75 mm | 0.8 mm | 1.2 mm |
| Lead length | 36.5 mm | 36.5 mm | 36.5 mm | 34 mm | 34 mm | 36.5 mm | 39 mm | 39 mm | 39 mm | 36.5 mm |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package diameter | 7 mm | 6.5 mm | 6.5 mm | 9.5 mm | 8.5 mm | 6 mm | 7 mm | 7.5 mm | 7.5 mm | 7.5 mm |
| Package length | 29 mm | 29 mm | 29 mm | 34 mm | 34 mm | 29 mm | 24 mm | 24 mm | 24 mm | 29 mm |
| Package form | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| method of packing | Bulk | Bulk | Bulk | Bulk | Bulk | Bulk | Bulk | Bulk | Bulk | Bulk |
| Maximum rated current | 6 A | 4 A | 3 A | 10 A | 4 A | 3 A | 3 A | 4 A | 6 A | 9 A |
| self resonant frequency | 200 MHz | 150 MHz | 170 MHz | 175 MHz | 120 MHz | 125 MHz | 145 MHz | 170 MHz | 205 MHz | 220 MHz |
| Shape/Size Description | TUBULAR PACKAGE | TUBULAR PACKAGE | TUBULAR PACKAGE | TUBULAR PACKAGE | TUBULAR PACKAGE | TUBULAR PACKAGE | TUBULAR PACKAGE | TUBULAR PACKAGE | TUBULAR PACKAGE | TUBULAR PACKAGE |
| shield | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| special characteristics | DC RESISTANCE IS MEASURED AT :20% | DC RESISTANCE IS MEASURED AT :20% | DC RESISTANCE IS MEASURED AT :20% | DC RESISTANCE IS MEASURED AT :20% | DC RESISTANCE IS MEASURED AT :20% | DC RESISTANCE IS MEASURED AT :20% | DC RESISTANCE IS MEASURED AT :20% | DC RESISTANCE IS MEASURED AT :20% | DC RESISTANCE IS MEASURED AT :20% | DC RESISTANCE IS MEASURED AT :20% |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal surface | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | Matte Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) |
| Terminal location | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL |
| Terminal shape | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Test frequency | 1 MHz | 0.1 MHz | 0.1 MHz | 1 MHz | 0.1 MHz | 0.1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Tolerance | 20% | 20% | 20% | 20% | 20% | 20% | 20% | 20% | 20% | 20% |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
