24STS1267 Overview

10/100 BASE-T MAGNETICS MODULES

Bothhandusa.com

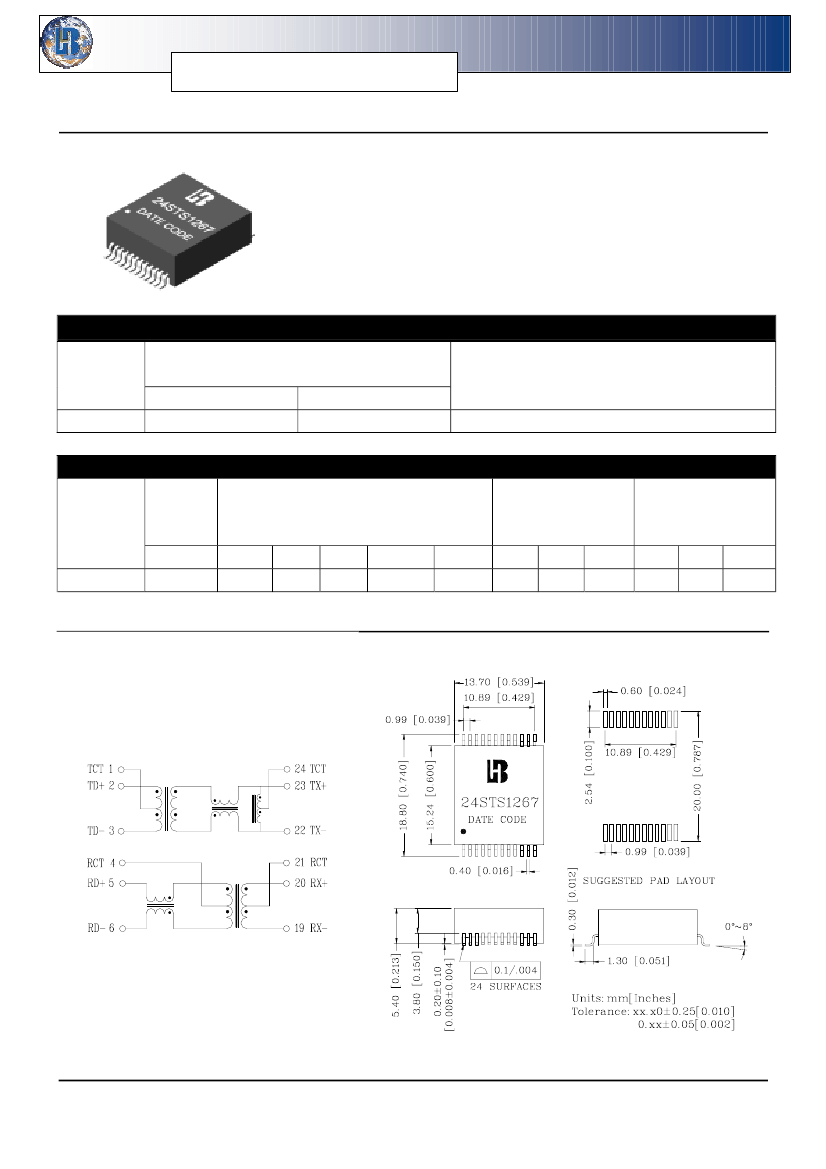

P/N: 24STS1267 DATA SHEET
Feature
!
Designed for long haul gigabit Ethernet 1000 BASE-T, full
duplex applications.
!
Supports 4 pairs of category 5 UTP cable.
!
Cable interface for isolation and low common mode
emissions.
!
Compliant with IEEE 802.3ab standard for 1000 BASE-T.
!
Operating temperature range: 0℃ to +70℃.
!
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25°C
Part
Number
TX
24STS1267
1CT:1
Turns Ratio
(±5%)
RX
1CT:1CT
1500
HI-POT
(Vrms)
Continue
Insertion
Part
Number
Loss
(dB Max)
Return Loss
(dB Min )@ Load 100
Ω
Cross talk Attenuation
(dB Min)
DCMR
(dB Min)
1–100MHz 1-30MHz 40MHz 50MHz 60-80MHz 100MHz 30MHz 60MHz
100MHz
30MHz 60MHz 100MHz
24STS1267
-1.0
-18
-14.4
-13.1
-12
-10
-45
-40
-35
-43
-37
-33
Schematic
Mechanical
