24ST8515B-2

Description
10/100 BASE-T SINGLE PORT SMT TRANSFORMER
File Size73KB,1 Pages
ManufacturerBOTHHAND
Websitehttp://www.bothhandusa.com/
Download Datasheet Compare View All

24ST8515B-2 Overview

10/100 BASE-T SINGLE PORT SMT TRANSFORMER

Bothhandusa.com

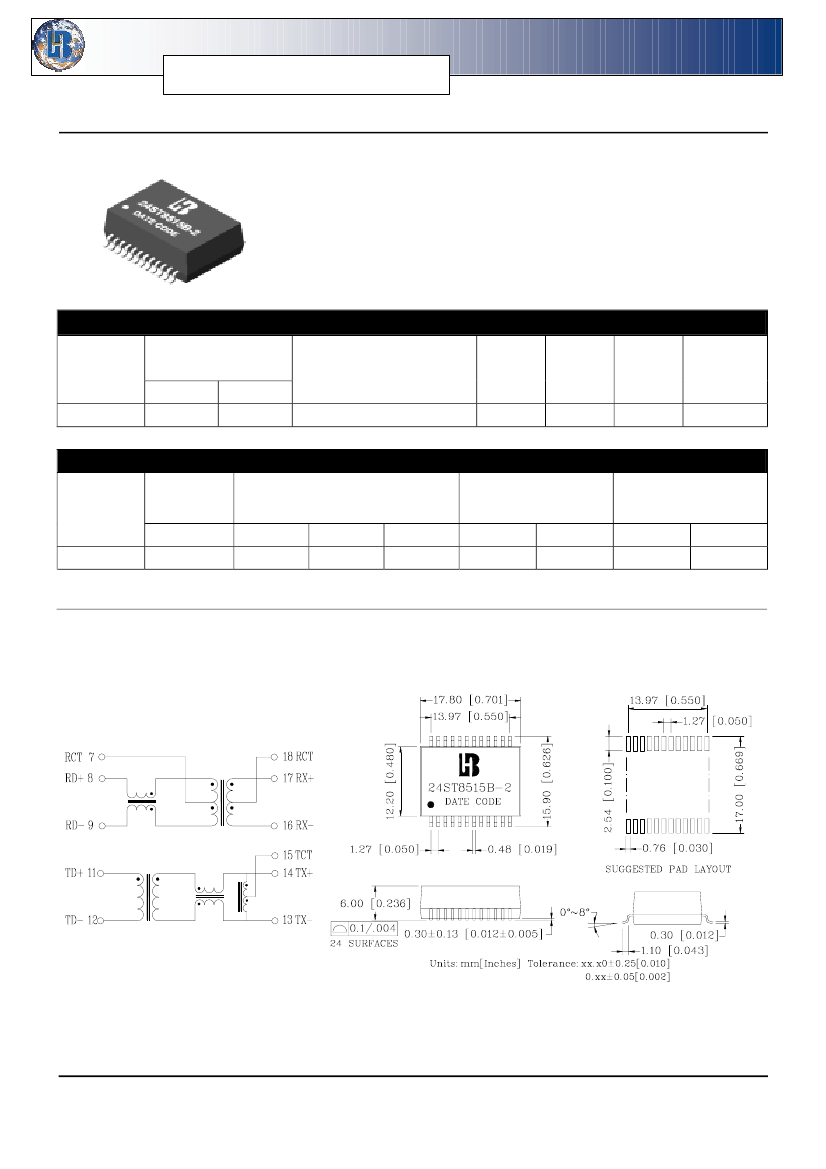

P/N: 24ST8515B-2 DATA SHEET
Feature
!
!
!
!
For Fast Ethernet to Gigabit Ethernet Interchangeable
Designs.
Meets IEEE802.3 and ANSI X3.263 standards.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25°C
Part
Number
TX
24ST8515B-2
1:1
Turns Ratio
(±5%)
RX
1CT:1CT
OCL(uH Min)
@100KHz/0.1V
with 8mA DC Bias
350
L.L
(uH Max)
0.6
C
W/W
(pF Max)
28
Rise Time
10-90%
(nS Typ)
HI-POT
(Vrms)
1500
2.5
Continue
Part
Number
24ST8515B-2
Insertion Loss
(dB Max)
0.3–100MHz
-1.0
30MHz
-16
Return Loss
(dB Min)
60MHz
-12
80MHz
-12
Cross talk
(dB Min)
0.3-60MHz
-40
60-80MHz
-30
DCMR
(dB Min) TX/RX
0.3-60MHz
-30/-35
60-100MHz
-30/-35
Schematic
Mechanical
