24ST6121CLF: Description10/100 BASE-T TWO PORT TRANSFORMER; File Size78KB，1 Pages; ManufacturerBOTHHAND; Websitehttp://www.bothhandusa.com/

Download Datasheet View All

24ST6121CLF Overview

10/100 BASE-T TWO PORT TRANSFORMER

Preview

Download Datasheet

View All

Bothhandusa.com

10/100 BASE-T TWO PORT TRANSFORMER

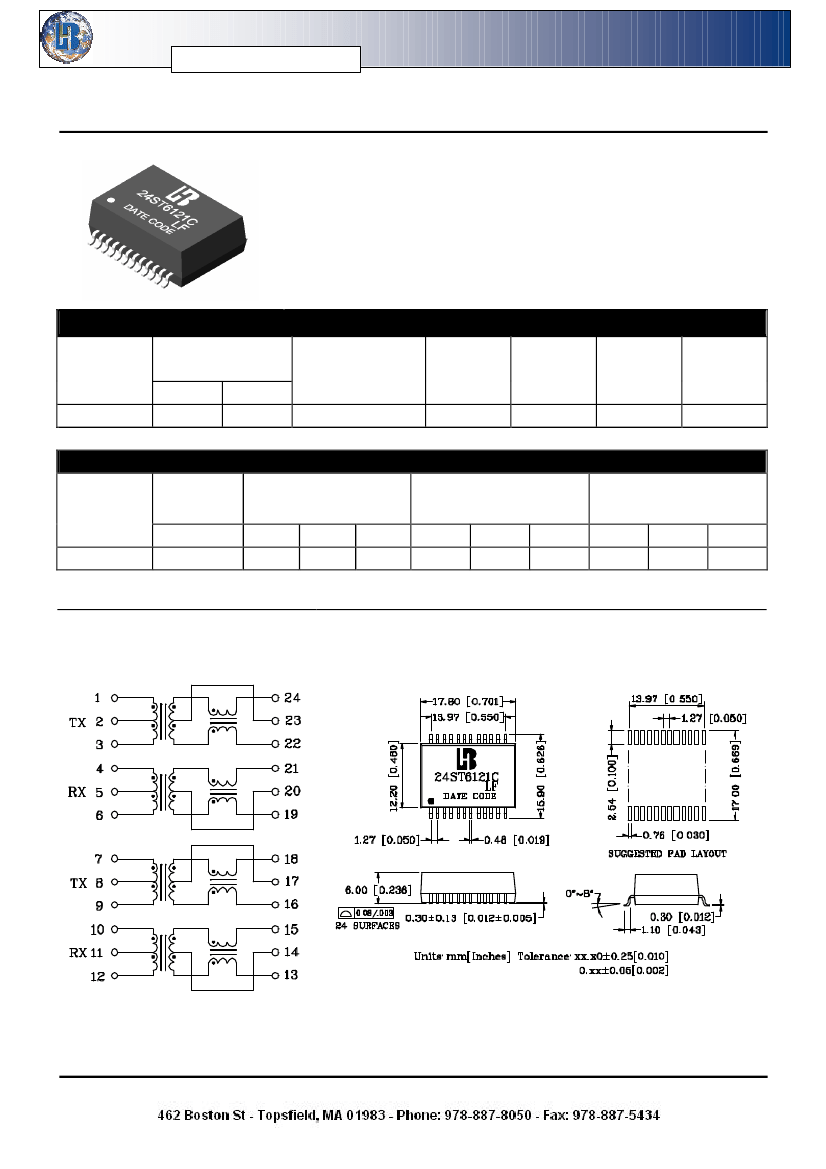

P/N: 24ST6121C LF DATA SHEET

Feature

Designed to meet IEEE802.3u requirement.

Comply with RoHS requirements-whole part No Cd, No Hg,

No Cr6+, No PBB and PBDE and No Pb on external pins.

Comply with Air reflow profile of JEDEC 020C.

Operating temperature range: 0℃ to +70℃.

Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25°C

Part

Number

24ST6121C LF

1CT:1CT

Turns Ratio

(±5%)

1CT:1CT

OCL(uH Min)

@100KHz/0.1V

with 8mA DC Bias

350

L.L

(uH Max)

0.5

W/W

(pF Max)

DCR

(Ω Max)

0.7&1.1

HI-POT

(Vrms)

1500

Page : 1/ 1

Continue

Part

Number

24ST6121C LF

Insertion Loss

(dB Max)

0.3-100MHz

-1.15

30MHz

-20

Return Loss

(dB Min)

60MHz

-14

80MHz

-12

30MHz

-45

Cross talk

(dB Min)

MHz

DCMR

(dB Min)TX/RX

80MHz

-35

30MHz

-43

60MHz

-37

100MHz

-33

-40

Schematic

Mechanical
