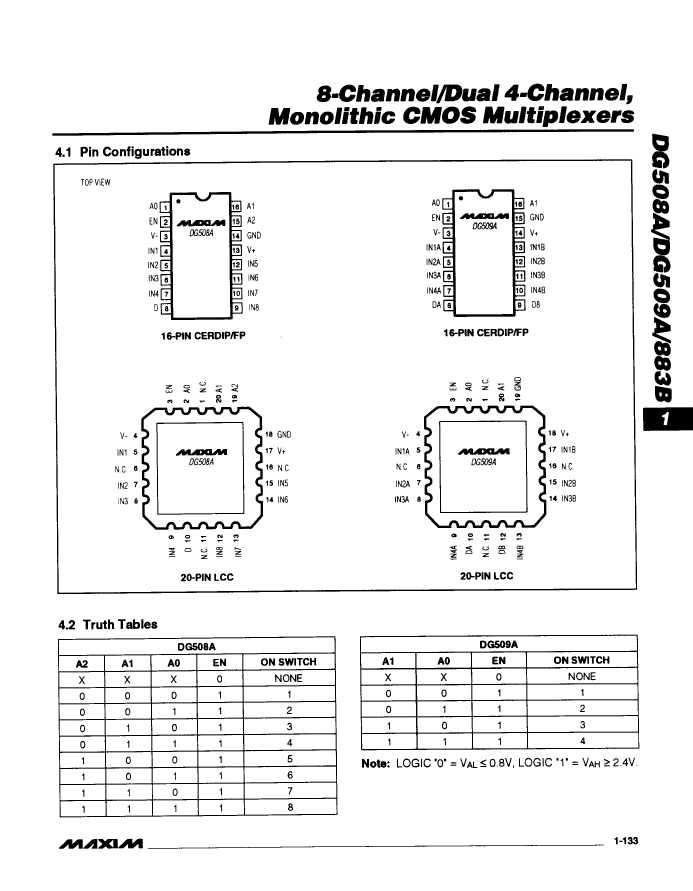

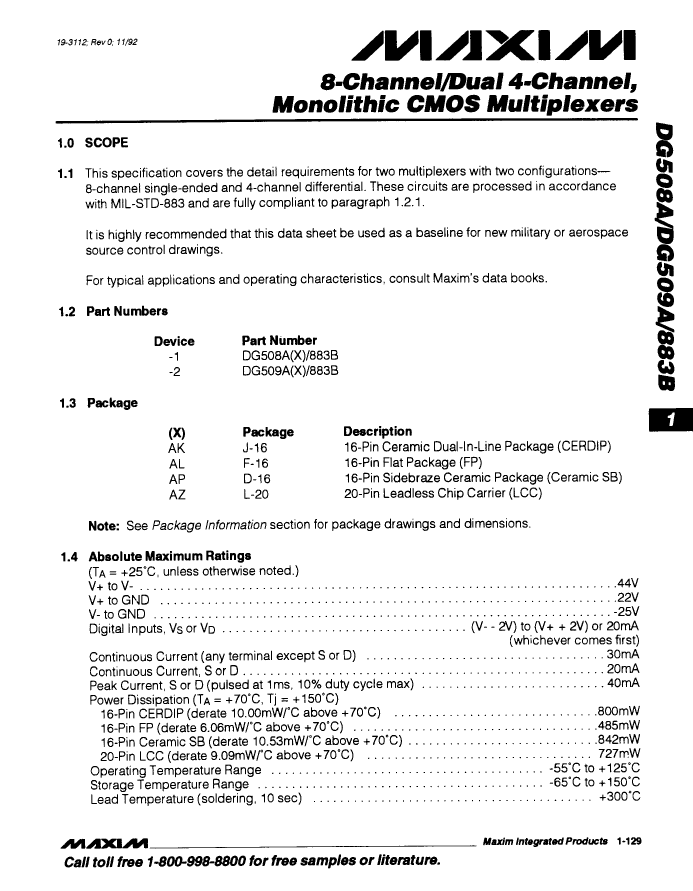

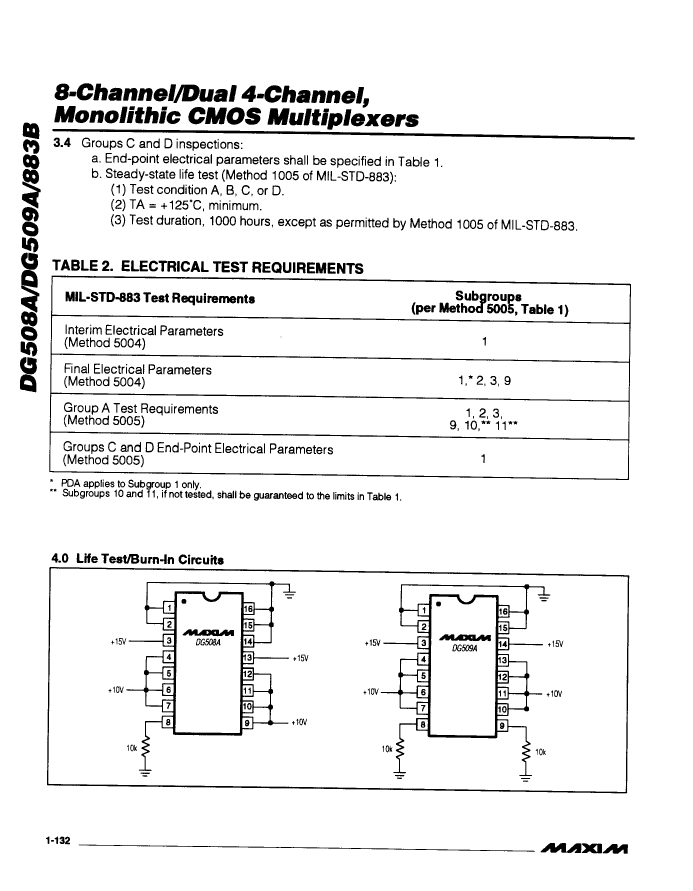

Multiplexers/Switches, 1 Func, 8 Channel, CMOS, PDIP16

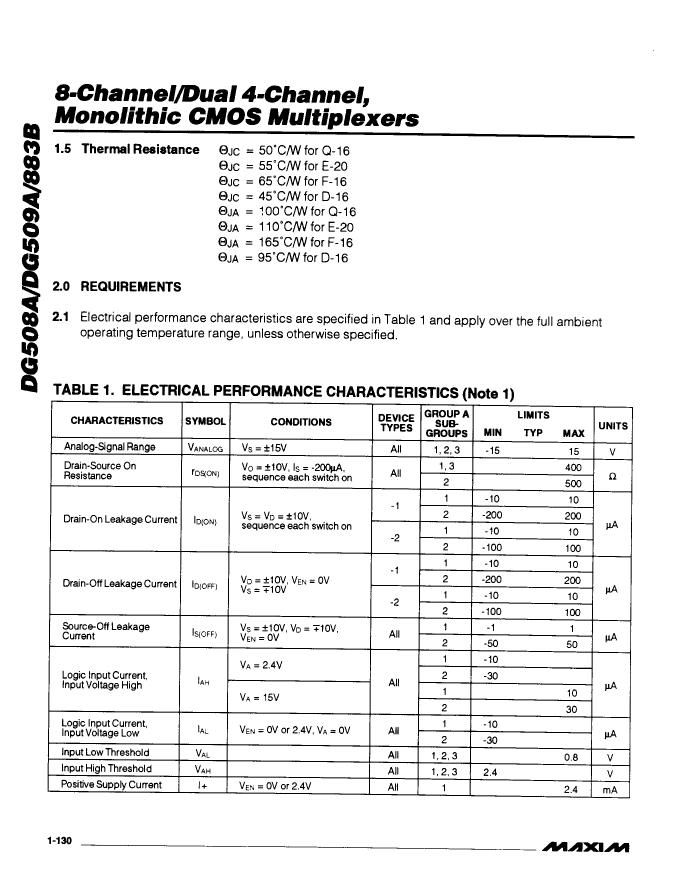

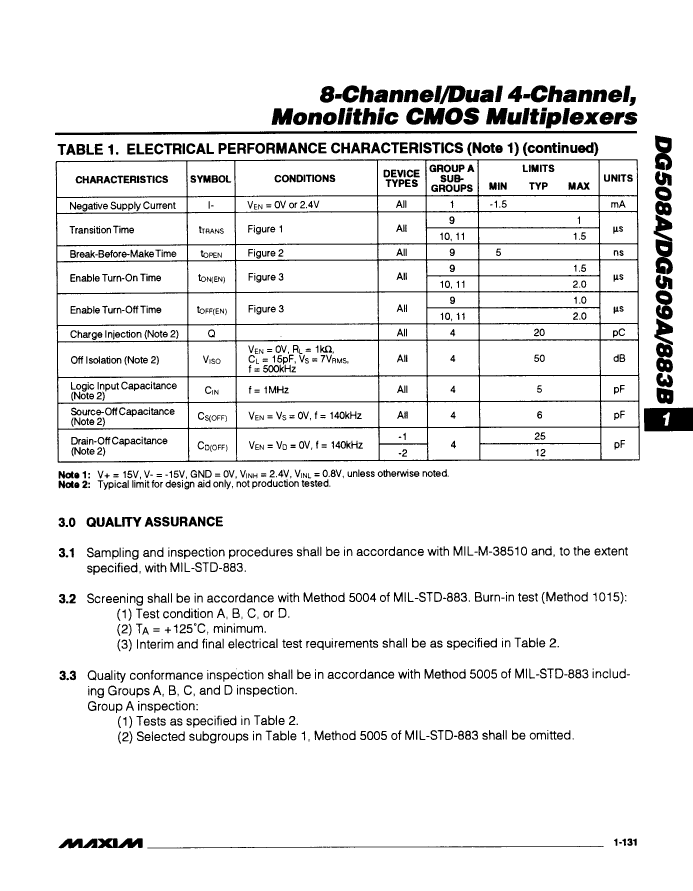

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | not_compliant |
| JESD-30 code | R-PDIP-T16 |
| JESD-609 code | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of channels | 8 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum on-state resistance (Ron) | 450 Ω |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| switch | BREAK-BEFORE-MAKE |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| MX508ACJ | MAX359MJE/883 | MX509ACWE | HIW-0509A-5 | MAX358CPE-2 | MAX359CPE-2 | MAX358MJE/883 | |
|---|---|---|---|---|---|---|---|
| Description | Multiplexers/Switches, 1 Func, 8 Channel, CMOS, PDIP16 | Multiplexers/Switches, 1 Func, 4 Channel, CMOS, CDIP16, | Multiplexers/Switches, 1 Func, 4 Channel, CMOS, PDSO16 | Multiplexers/Switches, 1 Func, 4 Channel, CMOS, PDSO16 | Multiplexers/Switches, 1 Func, 8 Channel, CMOS, PDIP16, | Multiplexers/Switches, 1 Func, 4 Channel, CMOS, PDIP16 | Multiplexers/Switches, 1 Func, 8 Channel, CMOS, CDIP16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | DIP, DIP16,.3 | DIP, DIP16,.3 | SOP, SOP16,.4 | SOP, SOP16,.4 | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| JESD-30 code | R-PDIP-T16 | R-XDIP-T16 | R-PDSO-G16 | R-PDSO-G16 | R-PDIP-T16 | R-PDIP-T16 | R-XDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of channels | 8 | 4 | 4 | 4 | 8 | 4 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum on-state resistance (Ron) | 450 Ω | 1800 Ω | 450 Ω | 2000 Ω | 2000 Ω | 2000 Ω | 1800 Ω |
| Maximum operating temperature | 70 °C | 125 °C | 70 °C | 70 °C | 70 °C | 70 °C | 125 °C |
| Package body material | PLASTIC/EPOXY | CERAMIC | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC |
| encapsulated code | DIP | DIP | SOP | SOP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP16,.3 | DIP16,.3 | SOP16,.4 | SOP16,.4 | DIP16,.3 | DIP16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE |
| power supply | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | YES | YES | NO | NO | NO |
| switch | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | - | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | - | - |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - | - |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum signal current | - | 0.02 A | - | - | 0.02 A | 0.02 A | 0.02 A |
| Maximum supply current (Isup) | - | 0.7 mA | - | - | 1 mA | 1 mA | 0.7 mA |
| Maximum connection time | - | 500 ns | - | - | 1000 ns | 1000 ns | 500 ns |
