MN39320FT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> Sensor/transducer> MN39320FT

MN39320FT: DescriptionCCD Sensor, 0.50V, Square, Through Hole Mount, DIP-14; CategoryThe sensor Sensor/transducer; File Size119KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

MN39320FT Overview

CCD Sensor, 0.50V, Square, Through Hole Mount, DIP-14

MN39320FT Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	10.16 mm
body height	3.55 mm
Body length or diameter	10 mm
Installation features	THROUGH HOLE MOUNT
optical format	1/6 inch
Output range	0.50V
Output type	ANALOG VOLTAGE
Package Shape/Form	SQUARE
Pixel size	3.75X3.75 µm
Sensor/Transducer Type	IMAGE SENSOR,CCD
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

New

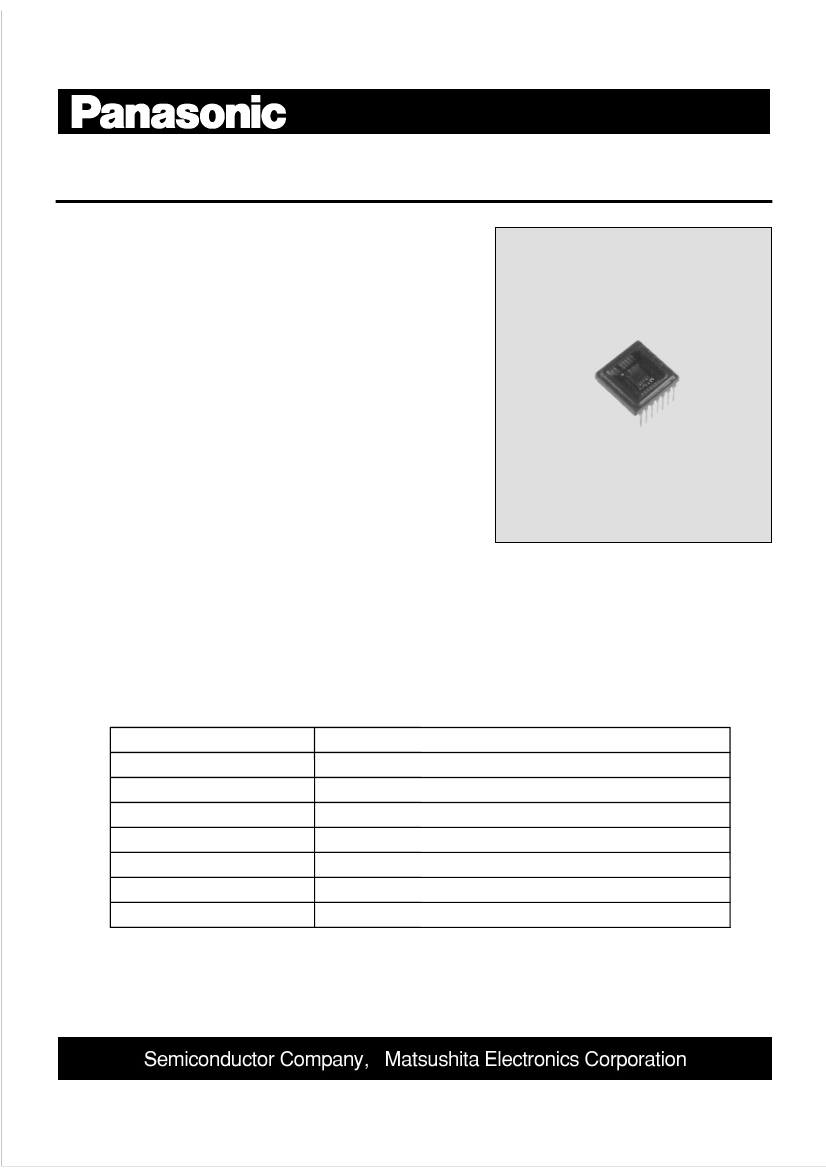

Compact & High Performance

Type-1/6 VGA 350K-Pixel CCD Image Sensor

■

Overview

The MN39320PT/FT is a type-1/6 350K-Pixel progressive-CCD

with square pixels. Progressive-scanning enables you to read out all

pixel signals separately in one vertical scanning period Square pixel

is VGA capture system.

Adopting RGB Bayer arrangement in color filter array provides

excellent color reproduction.

■

Feature

●

Square-pixelphoto diode arrangement

●

VGA compatible pixels (640H×480V)

●

Compact size (1/6-type image format)

●

Progressive-scan structure

●

Monitor mode compatible

●

Newly developed small size package

■

Applications

Image capture system for PC (VGA compatible)

Video input method for industrial use

Video phone

■

Specifications and Characteristics

Optical format

Total pixel number

Effective pixel number

Pixel size

Sensitivity(F11

：

1/5s)

Saturation output voltage

Color filter arrangement

Package type

Type-1/6 (3.03 mm diagonal)

699(H)

501(V) = 350,199

647(H)

485(V) = 313,795

3.75μm(H)

×3.75μm(V)

200 mV (typ)

500 mV (typ)

RGB

Bayer arrangement/Conprementary color mosaic

DIP 14Pin

The products and specification are subject to change without any notice. Please ask for the latest Product Standards to guarantee the satisfaction of your product requirements.

1.Kotari Yakemachi, Nagaokakyo, Kyoto, 617-8520 Japan

M00409AE

Tel. (075)951-8151

http://www.mec.panasonic.co.jp

New publication, effective from May.8.2000

MN39320FT Related Products

	MN39320FT	MN39320PT
Description	CCD Sensor, 0.50V, Square, Through Hole Mount, DIP-14	CCD Sensor, 0.50V, Square, Through Hole Mount, DIP-14
Reach Compliance Code	unknown	unknown
body width	10.16 mm	10.16 mm
body height	3.55 mm	3.55 mm
Body length or diameter	10 mm	10 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
optical format	1/6 inch	1/6 inch
Output range	0.50V	0.50V
Output type	ANALOG VOLTAGE	ANALOG VOLTAGE
Package Shape/Form	SQUARE	SQUARE
Pixel size	3.75X3.75 µm	3.75X3.75 µm
Sensor/Transducer Type	IMAGE SENSOR,CCD	IMAGE SENSOR,CCD
surface mount	NO	NO
Termination type	SOLDER	SOLDER
