24PC/26PC Specials
Pressure sensors with special fittings and sealings
FEATURES
· 0...35 mbar to 0...17 bar
gage or differential
· High impedance bridge
· Miniature package
· Different pinning configurations
· Usable for wet/wet applications
1
MEDIA COMPATIBILITY
1
All media compatible with
port 1:
- polyetherimide
- silver-filled silicone
- silicon nitride
- polyetherimide
- EPDM, neoprene or silicone
- silicon
port 2:
SPECIFICATIONS
(supply voltage, temperature limits, lead temperature,
humidity limits, mechanical shock, proof pressure...)
AND
ELECTRICAL CONNECTION
PRESSURE SENSOR CHARACTERISTICS
(V
s
=10.0 ±0.01 V, t
amb
=25°C, unless otherwise noted)
+Vs
1
see individual data sheets for 24PC or 26PC series
4
-
Output
Specification notes:
1.
P1 of all "gage" devices are normally vented to
atmosphere. P1 and P2 of differential devices might
be used for "wet-wet" applications, but the media
must be compatible with the materials specified under
"MEDIA COMPATIBILITY".
2
3
+
May 2008 / 593
1/12
www.sensortechnics.com
24PC/26PC Specials
Pressure sensors with special fittings and sealings

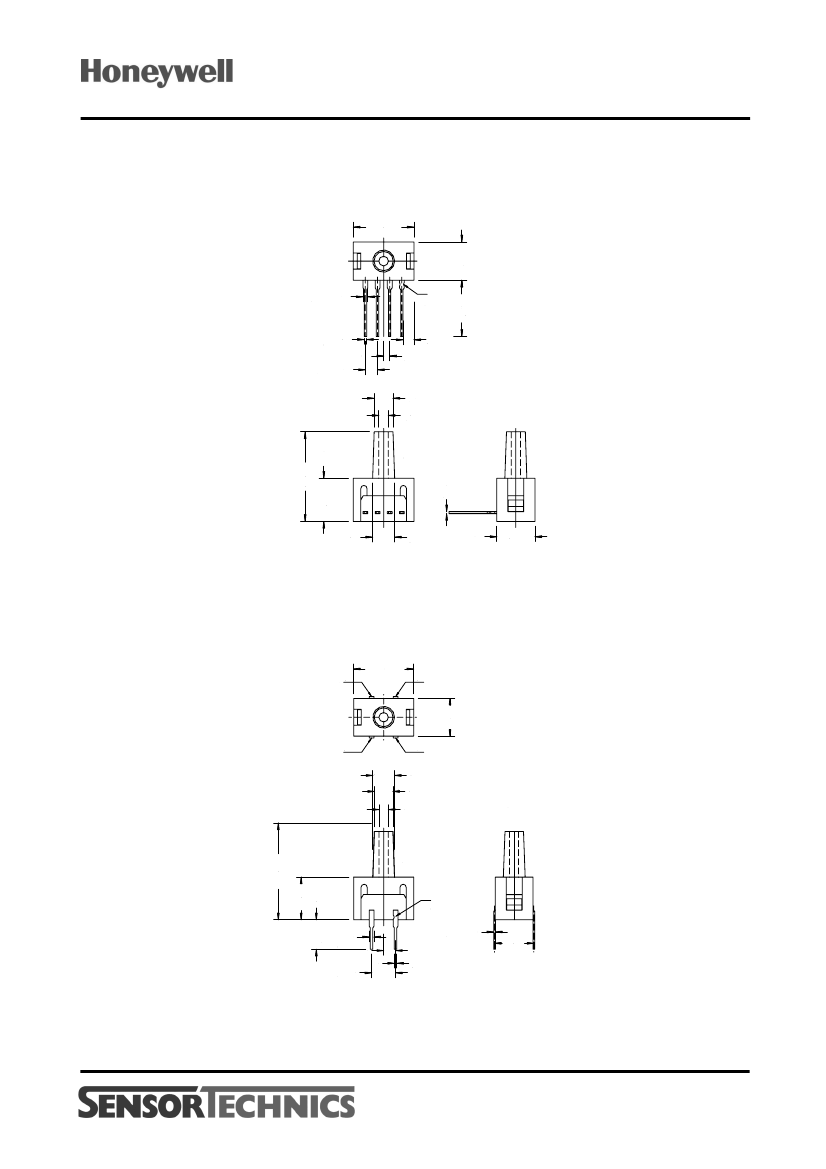

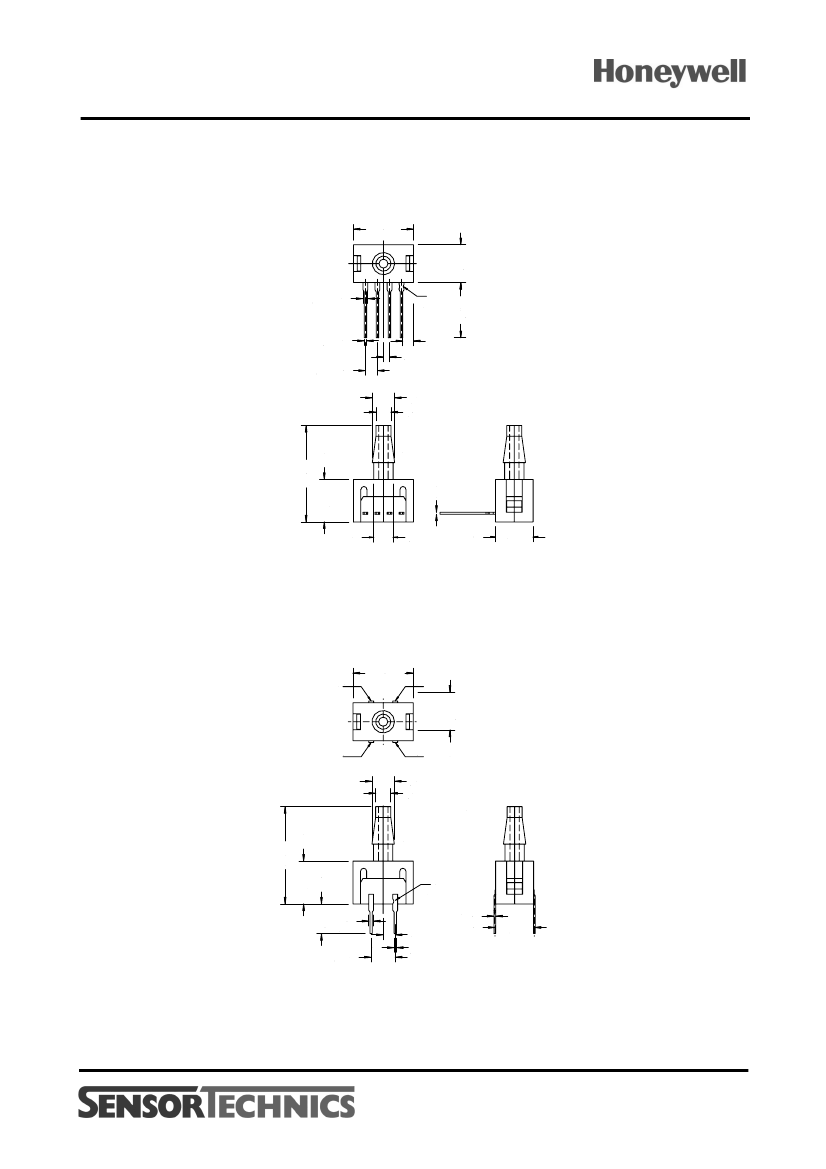

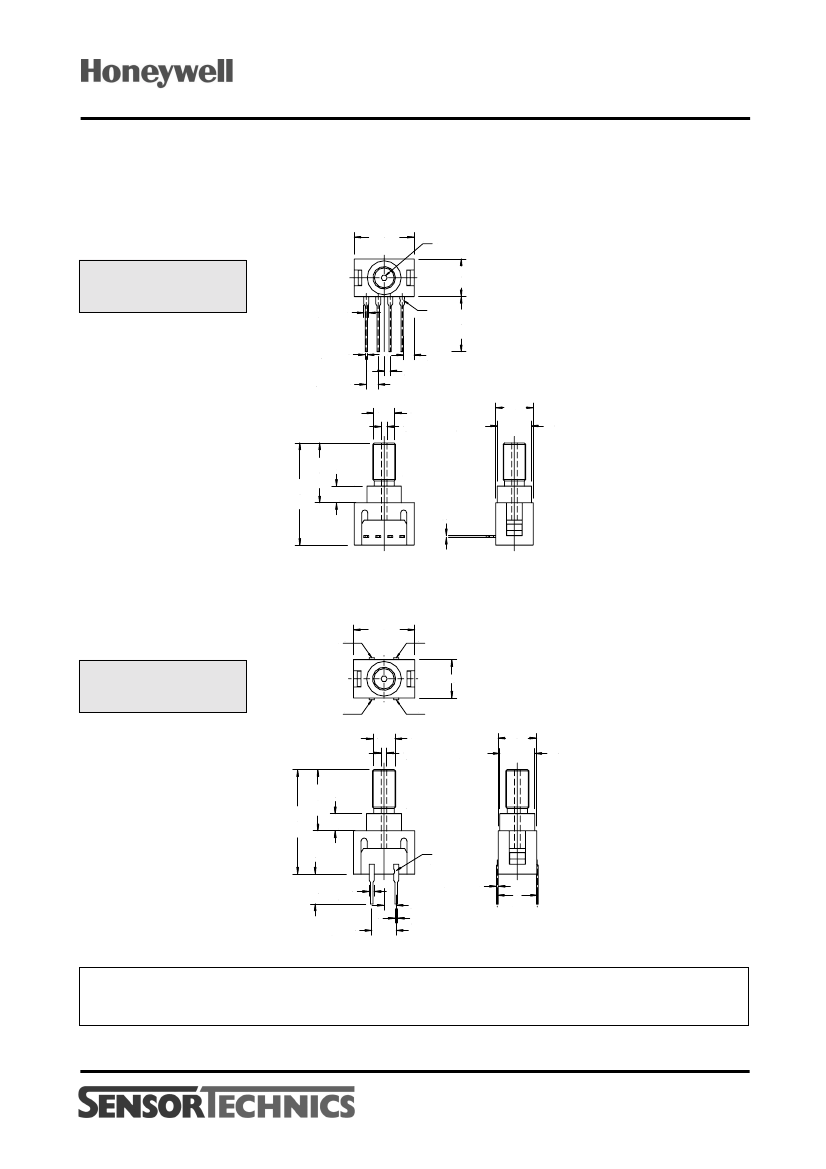

OUTLINE DRAWINGS
FOR GAGE DEVICES
2xPCxxxxG
6H
x
(M5 thread, pinning 1 x 4)
Tightening torque
3
:
Max. 67 Ncm
4x1,02
12,7
Ø1,3
7,9
4x0,5
1,27
3x2,54
M5
2,29
11,7
Notch
Pin 1
7,9
Ø1,3
Ø7,2
12,7
P2
3,5
21,6
4x0,41
mass:
2 g
dimensions in mm
2xPCxxxxG
2H
x
(M5 thread, pinning 2 x 2)
Tightening torque
3
:
Max. 67 Ncm
3
12,7
4
7,9
2
M5
1
7,9
Ø1,3
Ø7,2
12,7
21,6
P2
3,5
Notch
Pin 1
6,3
4x
1,02
5,08
4x0,41
2,54
4x0,5
8,4
dimensions in mm
mass:
2 g
Specification note:
3. Recommended O-ring: Ø 3,68 x 1,78, SH70,
recommended counter bore dimensions: Ø 7,62 x 1,02 deep
May 2008 / 593
5/12
www.sensortechnics.com
