CMPT7090LTR13LEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> CMPT7090LTR13LEADFREE

CMPT7090LTR13LEADFREE: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size458KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CMPT7090LTR13LEADFREE Overview

Transistor

CMPT7090LTR13LEADFREE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
Maximum collector current (IC)	3 A
Configuration	Single
Minimum DC current gain (hFE)	300
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.35 W
surface mount	YES
Nominal transition frequency (fT)	100 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

CMPT7090L

SURFACE MOUNT

LOW VCE(SAT) PNP

SILICON POWER TRANSISTOR

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMPT7090L is

a Low VCE(SAT) PNP Silicon Transistor in a space

saving Power SOT-23 surface mount package,

designed for DC-DC converters for mobile systems

and LAN cards, motor control, power management and

strobe flash units.

MARKING CODE: 709L

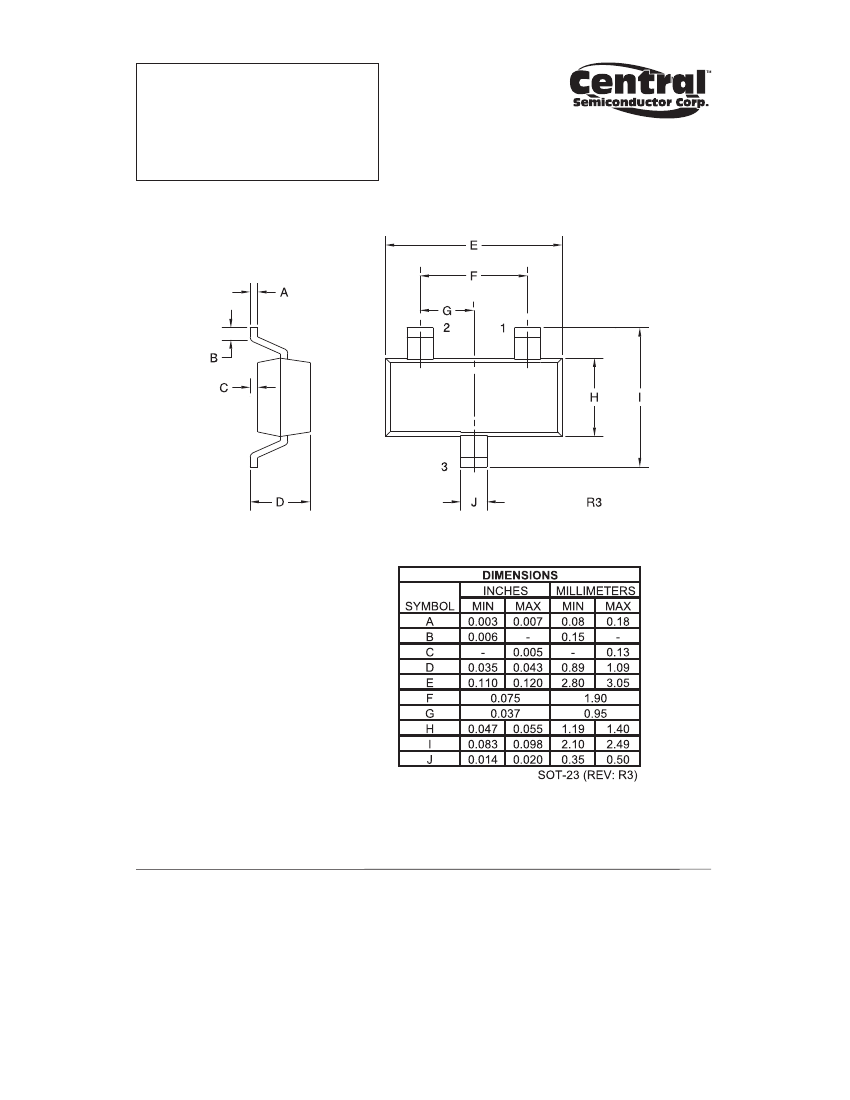

SOT-23 CASE

MAXIMUM RATINGS:

(TA=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Collector Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VCBO

VCEO

VEBO

ICM

TJ, Tstg

5.0

3.0

6.0

350

-65 to +150

357

UNITS

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

TYP

ICBO

IEBO

BVCBO

BVCEO

BVEBO

VCE(SAT)

VBE(SAT)

hFE

VCB=30V

VCB=30V, TA=100°C

VEB=4.0V

IC=100µA

IC=10mA

IE=100µA

IC=500mA, IB=5.0mA

IC=1.0A, IB=10mA

IC=2.0A, IB=50mA

IC=1.0A, IB=10mA

VCE=2.0V, IC=10mA

VCE=2.0V, IC=500mA

VCE=2.0V, IC=1.0A

VCE=2.0V, IC=2.0A

VCE=5.0V, IC=50mA, f=50MHz

5.0

100

175

250

0.8

300

250

200

150

100

MAX

100

UNITS

µA

250

450

750

1.0

800

MHz

R2 (1-February 2010)

CMPT7090LTR13LEADFREE Related Products

	CMPT7090LTR13LEADFREE	CMPT7090LLEADFREE	CMPT7090LBKLEADFREE	CMPT7090LBK
Description	Transistor	Small Signal Bipolar Transistor, 3A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, POWER23, 3 PIN	Transistor	Transistor
Is it Rohs certified?	conform to	conform to	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant	unknown
Maximum collector current (IC)	3 A	3 A	3 A	3 A
Configuration	Single	SINGLE	Single	Single
Minimum DC current gain (hFE)	300	150	300	300
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	PNP	PNP	PNP	PNP
surface mount	YES	YES	YES	YES
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	100 MHz
Base Number Matches	1	1	1	1
Maximum power dissipation(Abs)	0.35 W	-	0.35 W	0.35 W
