FAN5029 8-Bit Programmable 2- to 5-Phase Synchronous Buck Controller
December 2005
FAN5029
8-Bit Programmable 2- to 5-Phase Synchronous
Buck Controller
Features
■
Selectable 2-, 3-, 4-, or 5-phase operation at up to
■
■
■
■
■
■
Description

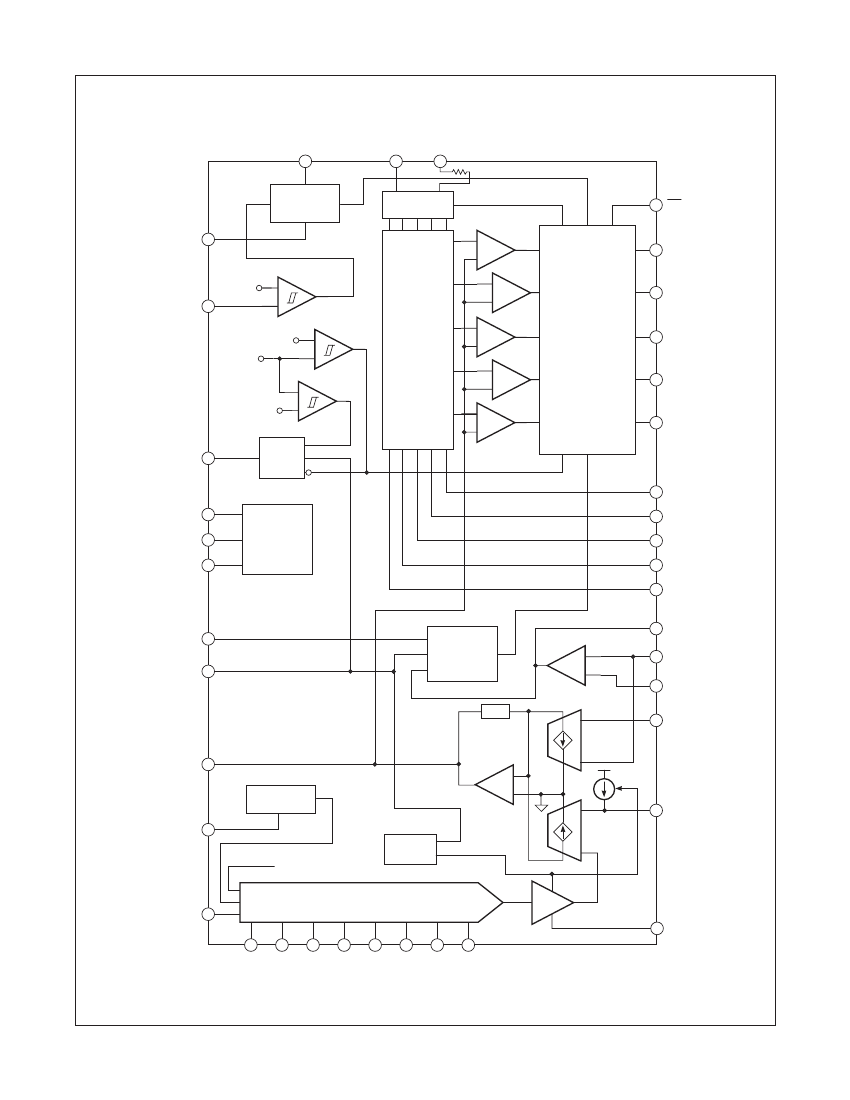

The FAN5029 is a highly efficient multi-phase synchro-
nous buck switching regulator controller optimized for
converting a 12V main supply into the core supply volt-
age required by high performance Intel processors. It
uses an internal 8-bit DAC to read voltage identification
(VID) code directly from the processor, which is used to
set the output voltage between 0.5V and 1.6V. It uses a
multi-mode PWM architecture to drive the logic-level out-
puts at a programmable switching frequency that can be
optimized for VR size and efficiency. The phase relation-
ship of the output signals can be programmed to provide
2-, 3-, 4-, or 5-phase operation, allowing for the construc-
tion of up to five complementary buck switching stages.
The FAN5029 also includes programmable no-load off-
set and slope functions to adjust the output voltage as a
function of the load current, so that it is always optimally
positioned for a system transient. The FAN5029 also pro-
vides accurate and reliable short circuit protection,
adjustable current limiting, and a delayed Power Good
output that accommodates on-the-fly output voltage
changes requested by the CPU.
FAN5029 is specified over the extended commercial
temperature range of 0°C to +85°C and is available in a
40-lead MLP package.
1 MHz per phase
±8 mV worst-case differential sensing error over
temperature
Logic-level PWM outputs for interface to external
high-power drivers
Active current balancing between all output phases
Built-in power good/crowbar blanking supports on-the-
fly VID code changes
Digitally programmable 0.5 V to 1.6 V output supports
both VR10 and VR11 specifications
Programmable short circuit protection with program-
mable latch-off delay
Applications
■
Desktop PC/Server power supplies for next generation
Intel processors
■
VRM modules
For more information, please contact
Ron Berthiaume at
ronald.berthiaume@fairchildsemi.com
Related Products
■
FAN5109MX
– Dual Bootstrapped 12V MOSFET Driver
■
FAN5068
– DDR-1/DDR-2 plus ACPI Regulator Combo
■
FAN5069
– PWM and LDO Controller Combo
■
FAN6520A
– Single Synchronous Buck PWM Controller
