S3961DA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> S3961DA

S3961DA: DescriptionToggle Switch, DPDT, Momentary, 14A, 36VDC, Screw Terminal, Metal Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size55KB，1 Pages; ManufacturerArcolectric; Environmental Compliance

Download Datasheet Parametric View All

S3961DA Overview

Toggle Switch, DPDT, Momentary, 14A, 36VDC, Screw Terminal, Metal Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT

S3961DA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	METAL LEVER
Contact (AC) maximum rated R load	16A@277VAC
Maximum contact current (AC)	16 A
Maximum contact current (DC)	14 A
Contact (DC) maximum rated R load	14A@36VDC
Maximum contact voltage (AC)	277 V
Maximum contact voltage (DC)	36 V
Manufacturer's serial number	3900
Installation features	PANEL MOUNT-THREADED
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

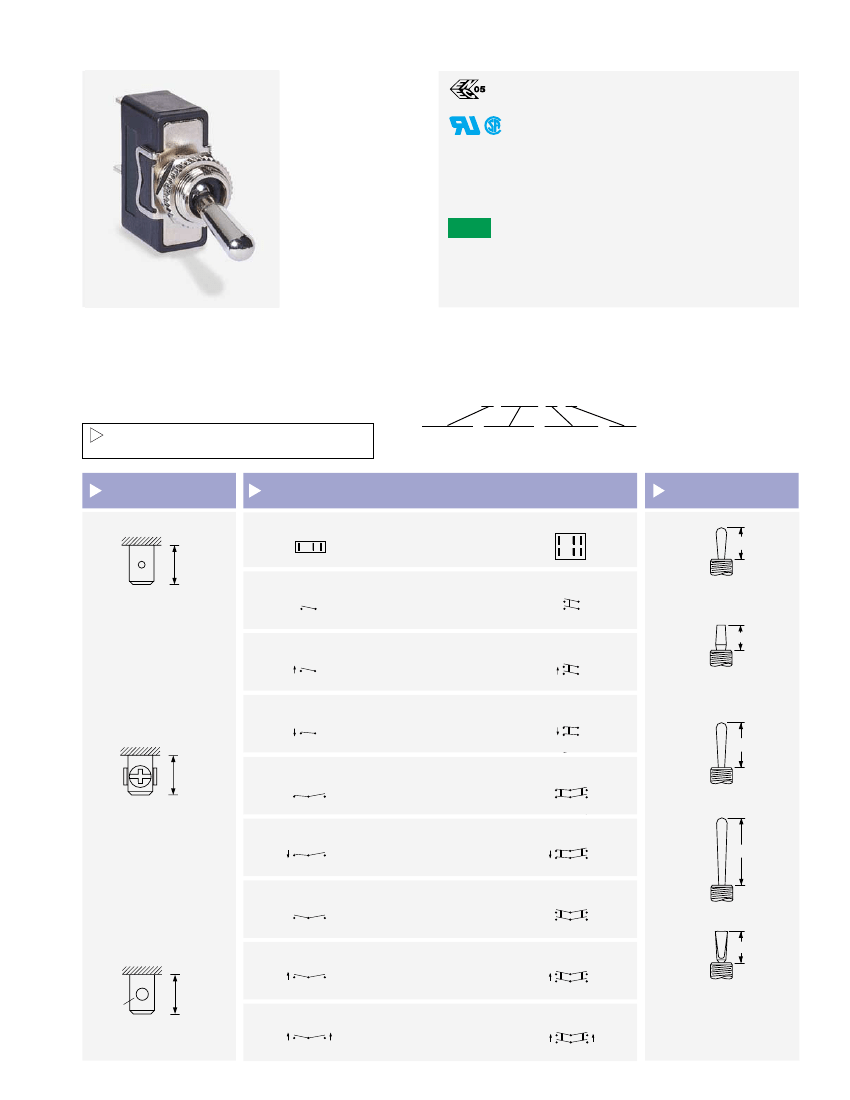

3900 Metal Lever Switches

16A 250Vac

Metal lever switches

Ratings up to 20A,

277V ac

Single and double pole

Choice of circuits

including 3 position and

momentary

6.3mm and solder

terminals

Guard option

Approvals and ratings vary with function.

3mm contact gap except where marked µ.

Technical data on pages 4 & 5.

16(4)A 250Vac T85 (3900 & 3950)

10(4)A 250Vac T85 (All other circuits)

UL CSA 20A 125/277Vac (ON-OFF Circuits)

UL CSA 16A 125/277Vac (Other Circuits)

UL CSA 7A 72Vdc, 14A 36Vdc

UL 250Vac 1hp, 125Vac 1/2hp

UL 85˚C, file E45221, CSA file LR10990

Inrush rating - Contact factory for details

RoHS

RoHS compliant

C 3900 B A

ORDER FORMAT

TERMINAL

CODE

FUNCTION

CODE

ACTUATOR

CODE

BODY

CODE

FUNCTION

Single pole

2 3

ACTUATOR

Double pole

5 6

2 3

10.5

17.5

3900

6.3 x 0.8

ON - OFF

3950

3951

ON - OFF

(momentary ON)

metal

3901

14.0

metal

3902

3910

ON - ON

ON - OFF

(momentary OFF)

10.5

3952

25.4

3960

metal

Screw & clamp

3911

ON - ON

(momentary 1 side)

3961

38.1

3920

ON - OFF - ON µ

3970

metal

10.5

Ø3.1

3921

ON - OFF - ON µ

(momentary 1 side)

3971

17.5

nylon

3922

Solder

ON - OFF - ON µ

(momentary 2 sides)

3972

Switches with F toggles have

double pole bodies, regardless of circuit

Metal toggle finish is nickel plate

ARCOLECTRIC CORPORATION

31-315 Plantation Drive, Thousand Palms, CA 92276 Tel: 760-343-3650 Fax: 760-343-3651 email: info@arcolectric.com
