T9-CS1-21B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> T9-CS1-21B

T9-CS1-21B: DescriptionToggle Switch, SPDT, Latched, 20A, 28VDC, Screw Terminal, Locking Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size1MB，4 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com; Environmental Compliance

Download Datasheet Parametric View All

T9-CS1-21B Overview

Toggle Switch, SPDT, Latched, 20A, 28VDC, Screw Terminal, Locking Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT

T9-CS1-21B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	OTTO
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	LOCKING LEVER
body width	16.13 mm
body height	29.97 mm
Body length or diameter	32.26 mm
Contact (AC) maximum rated R load	15A@115VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Electrical life	20000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	T9
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C
Minimum operating temperature	-65 °C
seal	ENVIRONMENTALLY SEALED; IP68S
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	Silver (Ag)
Termination type	SCREW

Preview

Download Datasheet

View All

COMMERCIAL & MIL TOGGLE SWITCHES

ENVIRONMENTALLY SEALED TOGGLE

TOGGLE

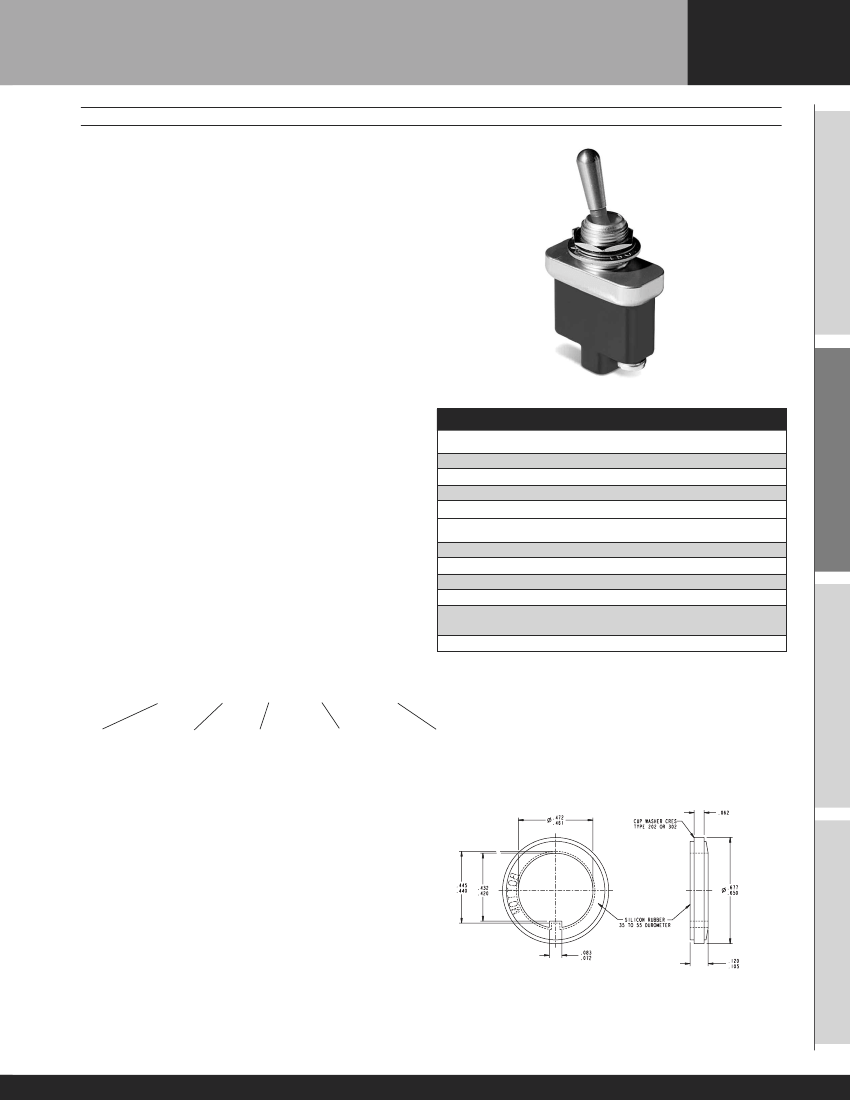

The T9 Toggle Switch is an ideal switch for demanding applications.

Qualified to MIL-PRF-3950, this high performance switch is a logical

choice for use in environments where sealing and resistance to

shock and vibration are required. The T9 is particularly suitable

for applications in military, off-highway, aviation, commercial and

industrial equipment. This compact, environmentally sealed switch

is available in single and double pole configurations with a lever

lockout option. Circuitry configurations include two or three

positions with many combinations of OFF-ON in momentary and

maintained action including ON-ON-ON.

Features:

•

Qualified to MIL-PRF-3950

Sealed per IP68S

Lever lockout option available

UL, CSA & CE approvals (pending)

Maintained & momentary toggle action

Optional panel seal

RoHS & WEEE compliant

TOGGLE SWITCHES

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

See Product Family Table

Electrical Life:

Mechanical Life:

Seal:

20,000 cycles

40,000 cycles

IP68S

Operating Temp Range:

-65°C to +71°C

MATERIALS:

Toggle:

Bushing & Cover:

Case:

Terminal Hardware:

Mounting Hardware:

Stainless steel, passivated

Aluminum, clear anodized or zinc alloy

Thermoset plastic

None required

Hex nuts, lockwasher, keyway washer, 0.138-32 UNC-2A

screw with lockwasher

T9 PART NUMBER CODE

Type

MIL Qualified to

MIL-PRF-3950

Commercial

Version

–

Contacts

Poles

–

Circuit ID

21.

33.

1 or 2-Pole

(See Chart)

01.

06.

2-Pole Only

(See Chart)

Lockout Suffix

A, B, D, E, F, G, H, J,

K, L, M, N, P

(See Chart)

Std.

(Silver Plate)

Low Level

(Gold Plate)*

* Available in

commercial only.

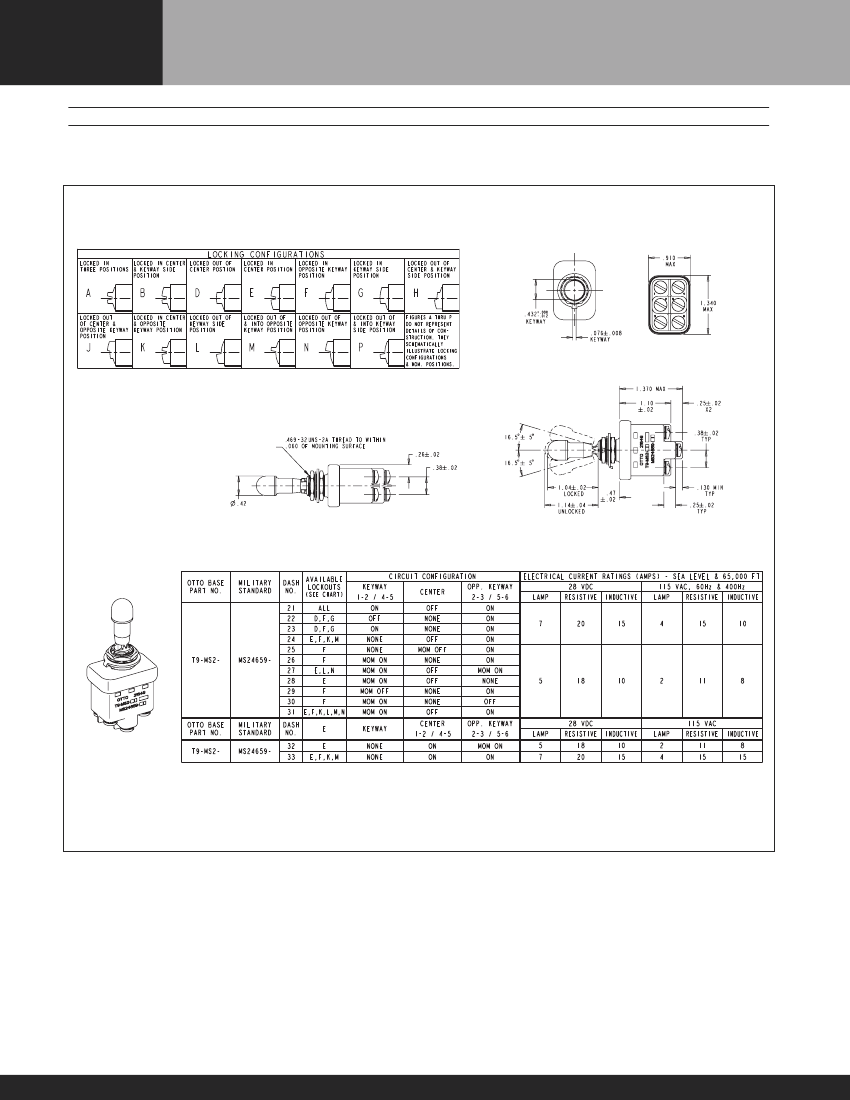

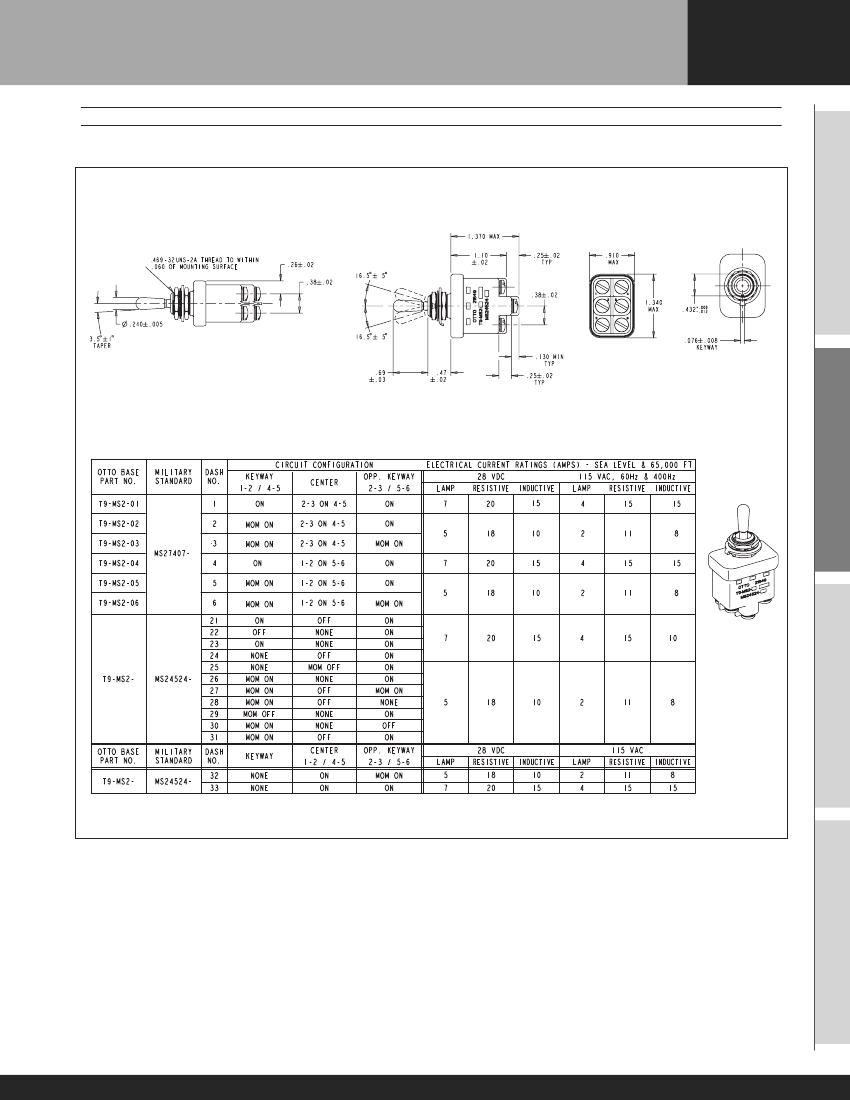

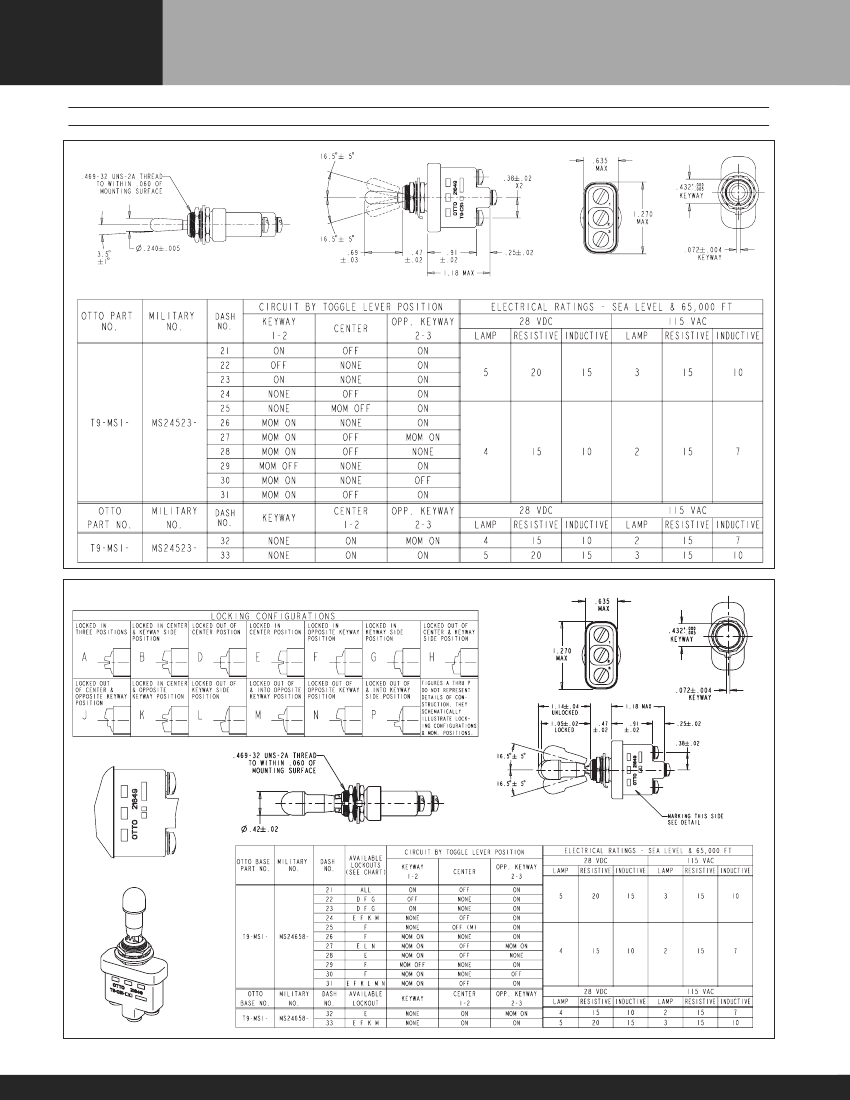

Single Pole

Double Pole

Optional Panel Seal P/N 710196

Specifications Subject To Change Without Notice

www.ottoexcellence.com

135
