KC7050P190.0000L3SE00

Description
XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 190 MHz, LVDS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN
CategoryPassive components    oscillator
File Size57KB,1 Pages
ManufacturerKyocera
Environmental Compliance
Download Datasheet Parametric View All

KC7050P190.0000L3SE00 Overview

XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 190 MHz, LVDS OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN

KC7050P190.0000L3SE00 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time0.6 ns
Frequency Adjustment - MechanicalNO
frequency stability30%
JESD-609 codee4
Manufacturer's serial numberKC7050P-L3
Installation featuresSURFACE MOUNT
Nominal operating frequency190 MHz
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Oscillator typeLVDS
Output load100 OHM
physical size7.0mm x 5.0mm x 1.6mm
longest rise time0.6 ns
Maximum supply voltage3.63 V
Minimum supply voltage2.97 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry45/55 %
Terminal surfaceNickel/Gold (Ni/Au)
Base Number Matches1

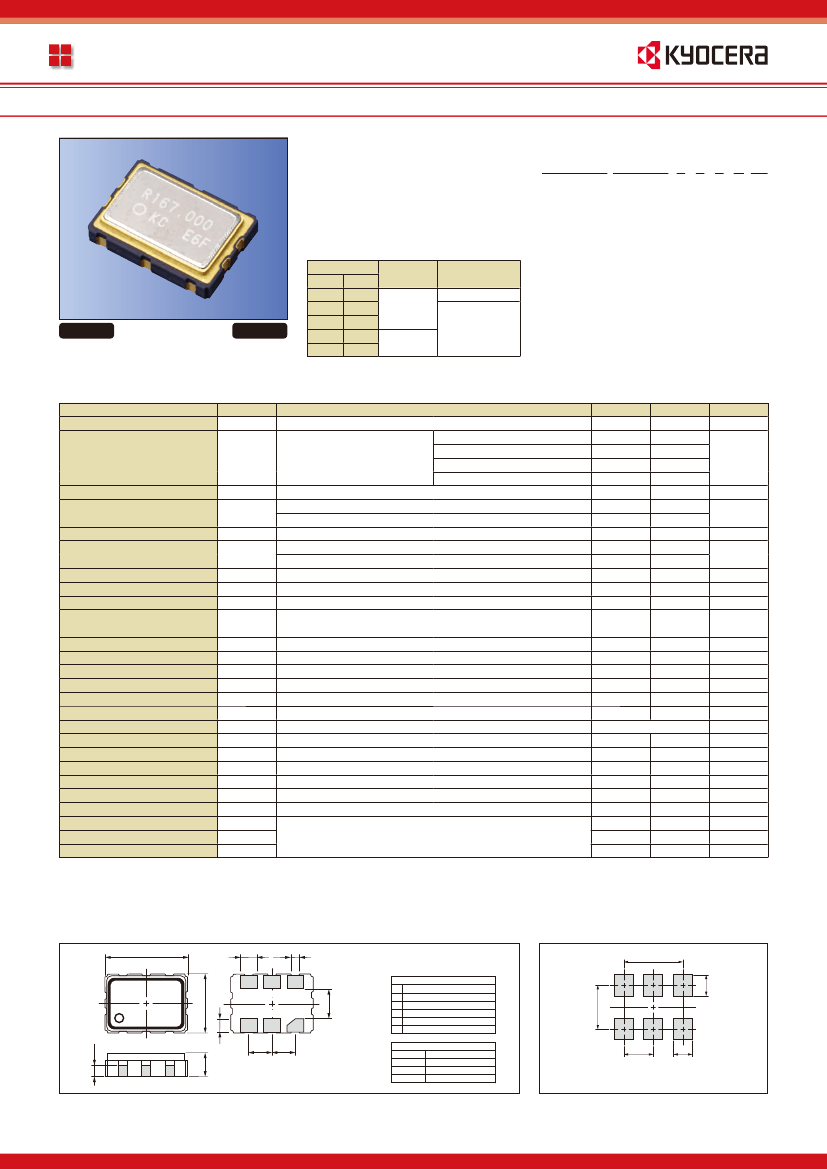

Clock Oscillators Surface Mount Type
KC7050P-L3 Series
LVDS/ 3.3V/ 7.0×5.0mm
Features
• Miniature ceramic package
• Highly reliable with seam welding
• LVDS output
• Supply voltage V
CC
=3.3V
±25×10
−6
available
How to Order
KC7050P 125.000 L 3 0 E 00
③④⑤⑥ ⑦
Table 1
Operating
Freq. Tol.
Temperature
Note
−6
Code
×
10
Range (°C)
0
Standard specifications
±
50
S
±
30 0 to
+70
U
±
25
With only certain
frequencies
F
±100
−40
to
+85
G
±
50
Type (7.0×5.0mm SMD)
Output Frequency
Output Type (LVDS)
Supply Voltage (3.3V)
Frequency Tolerance (See Table 1)
Symmetry/ Enable Function
(45/ 55%, Stand-by)
Customer Special Model Suffix
(STD Specification is “00”)
Packaging (Tape & Reel 1000 pcs./ reel)
Pb Free
RoHS Compliant
Specifications
Item
Output Frequency Range
Frequency Tolerance
Storage Temperature Range
Operating Temperature Range
Max. Supply Voltage
Supply Voltage
Current Consumption
Stand-by Current
Symmetry
Rise/ Fall Time
(20% to 80% Output Level)
Low Level Output Voltage
High Level Output Voltage
Diffrentical Output Voltage
Diffrentical Output Voltage Error
Offset Voltage
Offset Voltage Error
Output Load
Input Voltage Range
Low Level Input Voltage
High Level Input Voltage
Disable Time
Enable Time
Start-up Time
Deterministic Jitter (DJ)
1 Sigma Jitter
Peak to Peak Jitter
Symbol
fo
f
_tol
T
_stg
T
_use
V
CC
I
CC
I
_std
SYM
tr/ tf
V
OL
V
OH
V
OD
dV
OD
V
OS
dV
OS
RL
V
IN
V
IL
V
IH
t
_dis
t
_ena
t
_str
DJ
J
Sigma
J
PK-PK
Freq. Tol.Code: 0, S, F
Freq. Tol.Code: U, G
Standard Specifications
Extend (Option)
Conditions
Initial tolerance, Operating tem-
perature range, Rated power supply
voltage change, Load change, Aging
(1 year @25°C), Shock and vibration
Op. Temp.:
−40
to
+85°C
Op. Temp.: 0 to
+70°C/ −40
to
+85°C
Op. Temp.: 0 to
+70°C
Op. Temp.: 0 to
+70°C
Min.
50
−100
−50
−30
−25
−55
0
−40
−0.5
2.97
3.14
45
0.9
247
1.125
100
0
70% V
CC
V
CC
30% V
CC
200
10
10
2
4
30
Max.
190
+100
+50
+30
+25
+125
+70
+85
+5
3.63
3.46
70
30
55
0.6
1.6
454
50
1.375
50
Units
MHz
×10
−6
°C
°C
V
V
mA
μA
%
nS
V
V
mV
mV
V
mV
ohm
V
V
V
nS
mS
mS
pS
pS
pS
100ohm @50% Output Swing
100ohm
Typ. 1.1V
Typ. 1.43V
Typ. 330mV
dV
OD
=|V
OD1
−V
OD2
|
Typ. 1.25V
dV
OS
=|V
OS1
−V
OS2
|
LVDS Output
@Minimum operating voltage to be 0 sec.
Measured with Wavecrest DTS-2079
VISI 6.3.1
Note: All electrical characteristics are defined at the maximum load and operating temperature range.
Please contact us for inquiry about operating temperature range, available frequencies and other conditions.
Dimensions
7.0
1.4
0.6
(Unit: mm)
Recommended Land Pattern
(Unit: mm)
1.17
2.46
5.0
Pad Connections
Enable/ Disable
NC
Case GND
Output
Complementary Output
V
CC
0.75
2.54
1.6
2.54
Plating: Ni Au
Tolerance: 0.2
Enable/ Disable Function
Pad1
Pad4/ Pad5 (Output)
Open
Active
"H" Level
Active
"L" Level High Z (No-Oscillation)
μ
μ
