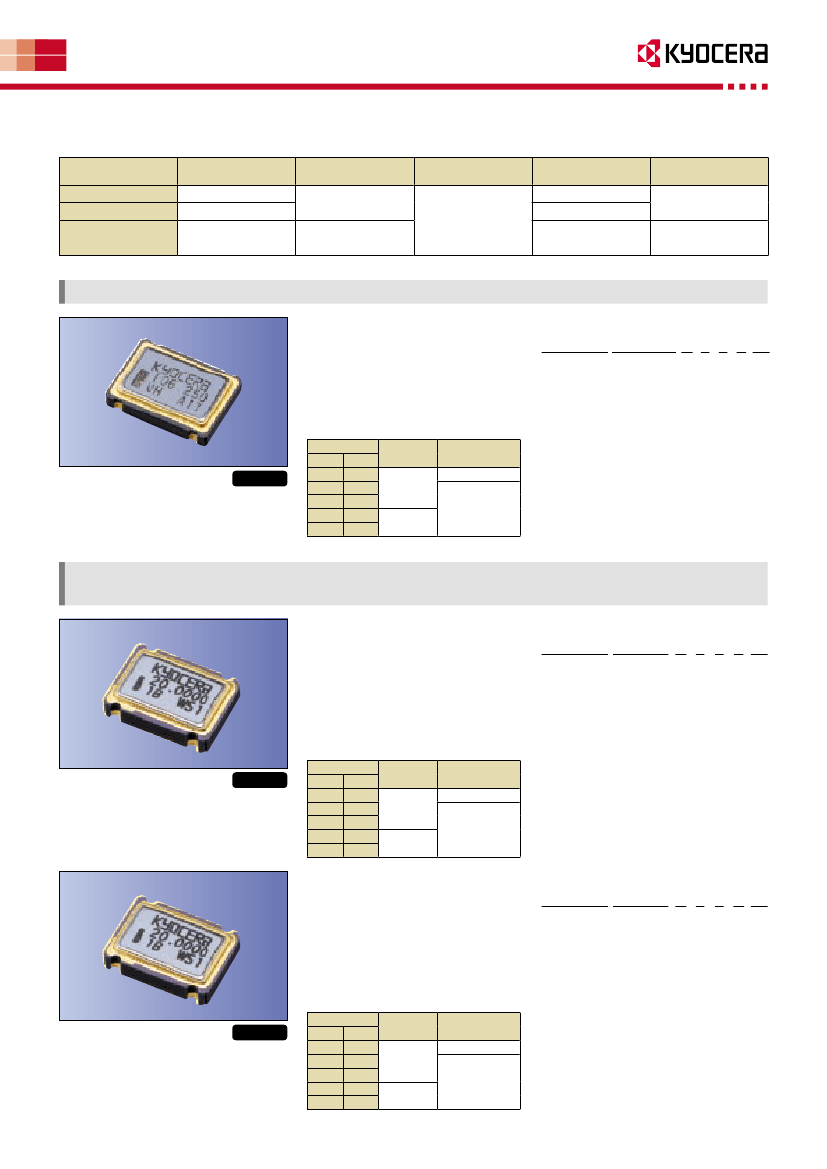

Clock Oscillators Surface Mount Type
CMOS/ 3.3V/ 5.0V/ 7.0×5.0mm
Specifications
Type
KC7050H-C3
KC7050C-C3
KC7050C-C5
Output Frequency
Range (MHz)
80 to 170
1.5 to 80
1.5 to 68
Supply Voltage
(Vcc)
3.3±10%
3.3± 5%
5.0±10%
5.0± 5%
Frequency
Tolerance (× 10
-
6
)
±
25
±
30
±
50
±100
Current Consumption
(mA)
max. 60
max. 30
max. 50
Output Load
(pF)
15
50 (1.5≤fo≤50MHz)
15 (50<fo≤68MHz)
Note: Please contact us for inquiry about operating temperature range, available frequencies and other conditions.
KC7050H-C3 Series (K50H-3C Series)
Features
• Miniature ceramic package
• Highly reliable with seam welding
• CMOS output
• Supply voltage V
CC
=3.3V
• With built-in by-pass capacitor
How to Order
KC7050H 125.0000 C 3 0 E 00
①
②
③④⑤⑥ ⑦
①
Type (7.0×5.0mm SMD)
②
Output Frequency
③
Output Type (CMOS)
④
Supply Voltage (3.3V)
⑤
Frequency Tolerance (See Table 1)
⑥
Symmetry/ INH Function
⑦
Customer Special Model Suffix
(STD Specification is “00”)
(45/ 55%, Stand-by)
Table 1
RoHS Compliant
Operating
Freq. Tol.
Temperature
Note
×
10
-
6
Range (
°
C)
Code
±
50
0
Standard specifications
±
30
-10
to
+70
S
±
25
U
With only certain
frequencies
±100
F
-40
to
+85
±
50
G
Packaging (Tape & Reel 1000 pcs./ reel)
KC7050C-C3 Series (K50-3C Series)
KC7050C-C5 Series (K50-HC Series)
KC7050C-C3 Series
Features
• Miniature ceramic package
• Highly reliable with seam welding
• CMOS output
• Supply voltage V
CC
=3.3V
•
±25×10
-
6
available
How to Order
KC7050C 25.0000 C 3 0 E 00
①
②
③④⑤⑥ ⑦
①
Type (7.0×5.0mm SMD)
②
Output Frequency
③
Output Type (CMOS)
④
Supply Voltage (3.3V)
⑤
Frequency Tolerance (See Table 1)
⑥
Symmetry/ INH Function
(E: 45/ 55%, Stand-by)
(D: 45/ 55%, Disable)
⑦
Customer Special Model Suffix
(STD Specification is “00”)
Table 1
RoHS Compliant
Operating
Freq. Tol.
Note
-
6
Temperature
Code
×
10
Range (
°
C)
±
50
0
Standard specifications
±
30
-10
to
+70
S
±
25
U
With only certain
frequencies
±100
F
-40
to
+85
±
50
G
Packaging (Tape & Reel 1000 pcs./ reel)
KC7050C-C5 Series
Features
• Miniature ceramic package
• Highly reliable with seam welding
• CMOS output
• Supply voltage V
CC
=5.0V
•
±25×10
-
6
available
How to Order
KC7050C 25.0000 C 5 0 D 00
①
②
③④⑤⑥ ⑦
①
Type (7.0×5.0mm SMD)
②
Output Frequency
③
Output Type (CMOS)
④
Supply Voltage (5.0V)
⑤
Frequency Tolerance (See Table 1)
⑥
Symmetry/ INH Function
(45/ 55%, Disable)
⑦
Customer Special Model Suffix
(STD Specification is “00”)
Table 1
RoHS Compliant
Operating
Freq. Tol.
Note
-
6
Temperature
Code
×
10
Range (°C)
±
50
0
Standard specifications
±
30
-10
to
+70
S
±
25
U
With only certain
frequencies
±100
F
-40
to
+85
±
50
G
Packaging (Tape & Reel 1000 pcs./ reel)
