KT3225F19200ACV28T

Description
Sine Output Oscillator, 19.2MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 4 PIN
CategoryPassive components    oscillator
File Size193KB,1 Pages
ManufacturerKyocera
Environmental Compliance
Download Datasheet Parametric View All

KT3225F19200ACV28T Overview

Sine Output Oscillator, 19.2MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 4 PIN

KT3225F19200ACV28T Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Ageing1 PPM/YEAR
Frequency Adjustment - MechanicalNO
frequency stability0.5%
Installation featuresSURFACE MOUNT
Nominal operating frequency19.2 MHz
Maximum operating temperature80 °C
Minimum operating temperature-30 °C
Oscillator typeSINE
Output impedance10000 Ω
Output level0.8 V
physical size3.2mm x 2.5mm x 0.5mm
Nominal supply voltage2.8 V
surface mountYES
Base Number Matches1

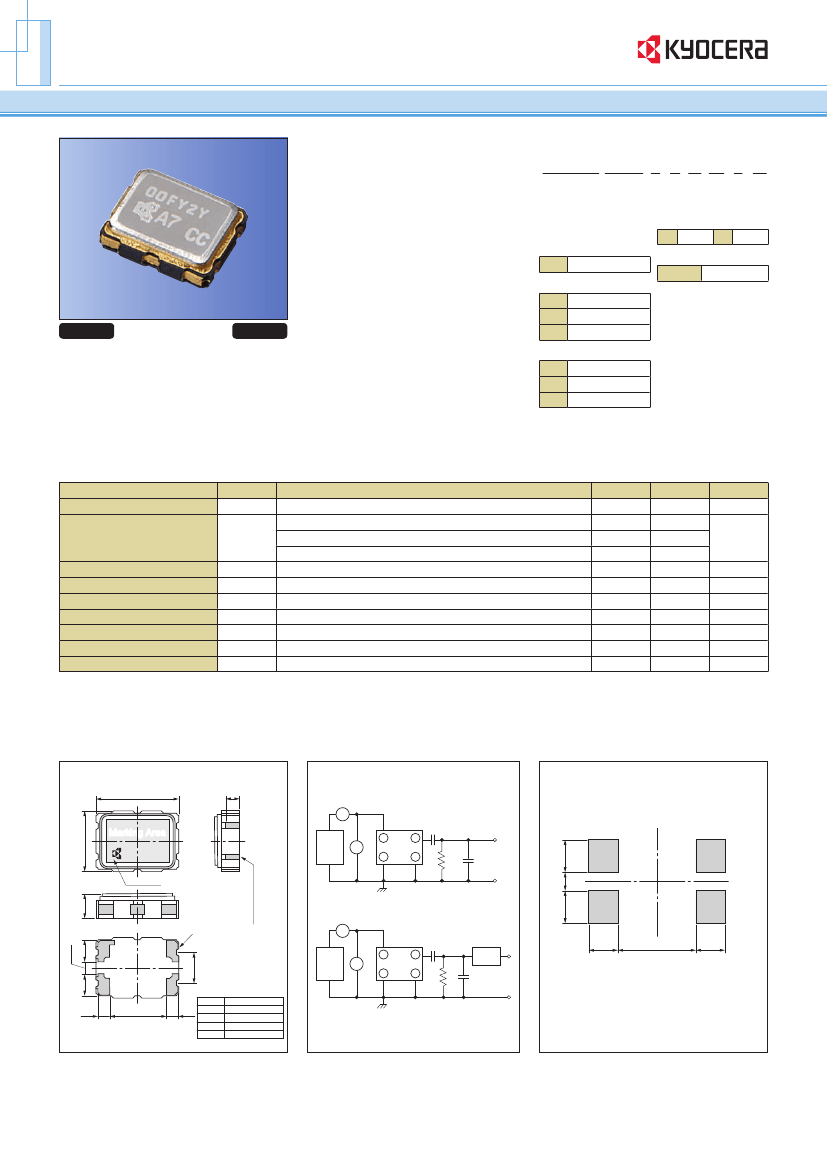

Temperature Compensated Crystal Oscillators (TCXO)
Surface Mount Type TCXO (LSI Type) KT3225 Series for GPS
3.2×2.5mm
Features
• Ultra-miniature SMD type
(3.2×2.5×1.0mm)
• Frequency stability
: ±0.5×10
-6
/
-30
to
+85°C
• 1.7 to 3.5V drive available
• Reflow compatible
How to Order
KT3225F 27456 A C W 18 T xx
Series
S
⑥
upply Voltage
18
1.8V
28
2.8V
③ ④ ⑤ ⑥ ⑦ ⑧
Applications
• GPS Units
Output Frequency
Frequency Tolerance
A
C
E
G
W
V
U
±0.5×10
-6
-30°C
-20°C
-10°C
+85°C
+80°C
+75°C
Voltage Control Range
TCXO
T
O
⑧
ption Code
Lower Operating Temp.
Pb Free
RoHS Compliant
Upper Operating Temp.
Specifications
Item
Output Frequency Range
Frequency Tolerance
Frequency Aging
Storage Temperature Range
Operating Temperature Range
Supply Voltage
Output Level
Current Consumption
Harmonics
Symbol
fo
f
_tol
f
_age
T
_stg
T
_use
V
CC
Vpp
I
CC
Conditions
Standard Frequency: 16.368, 16.369, 19.2, 23.104, 24.5535, 26, 27.456
vs Temperature
vs Load
vs Voltage
Per Year
Min.
-0.5
-0.1
-0.2
-1
-40
-30
1.7
0.8
Max.
+0.5
+0.1
+0.2
+1
+85
+85
3.5
2
-5
Units
MHz
×10
-6
×10
-6
°C
°C
V
Vp-p
mA
dBc
10k ohm / / 10pF
Dimensions
3.2±0.2
0.5
(Unit: mm)
Test Circuit
Recommended Land Pattern
(Unit: mm)
2.5±0.2
Marking Area
#1 pin mark
1.0 max.
Terminal: W Ni (2 to 6µm) Au (0.3 to 0.6µm)
(0.50)
0.87
#1pin
#2pin
1.27
0.87
#4pin
#3pin
#1pin
#2pin
#3pin
#4pin
Pin Configuration
GND
GND
OUTPUT
V
CC
0.40
2.24
0.40
