SMD-49-FREQ-STBY2-TOL2-CL1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> SMD-49-FREQ-STBY2-TOL2-CL1

Preview

SMD-49-FREQ-STBY2-TOL2-CL1: DescriptionParallel - Fundamental Quartz Crystal, 3.2MHz Min, 70MHz Max,; CategoryPassive components Crystal/resonator; File Size55KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/; Environmental Compliance

Download Datasheet Parametric View All

SMD-49-FREQ-STBY2-TOL2-CL1 Overview

Parallel - Fundamental Quartz Crystal, 3.2MHz Min, 70MHz Max,

SMD-49-FREQ-STBY2-TOL2-CL1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	AT CUT CRYSTAL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.01%
frequency tolerance	100 ppm
JESD-609 code	e2
load capacitance	12 pF
Manufacturer's serial number	SMD-49
Installation features	SURFACE MOUNT
Maximum operating frequency	70 MHz
Minimum operating frequency	3.2 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11XB4.6XH4.2 (mm)
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Base Number Matches	1

Preview

Download Datasheet

View All

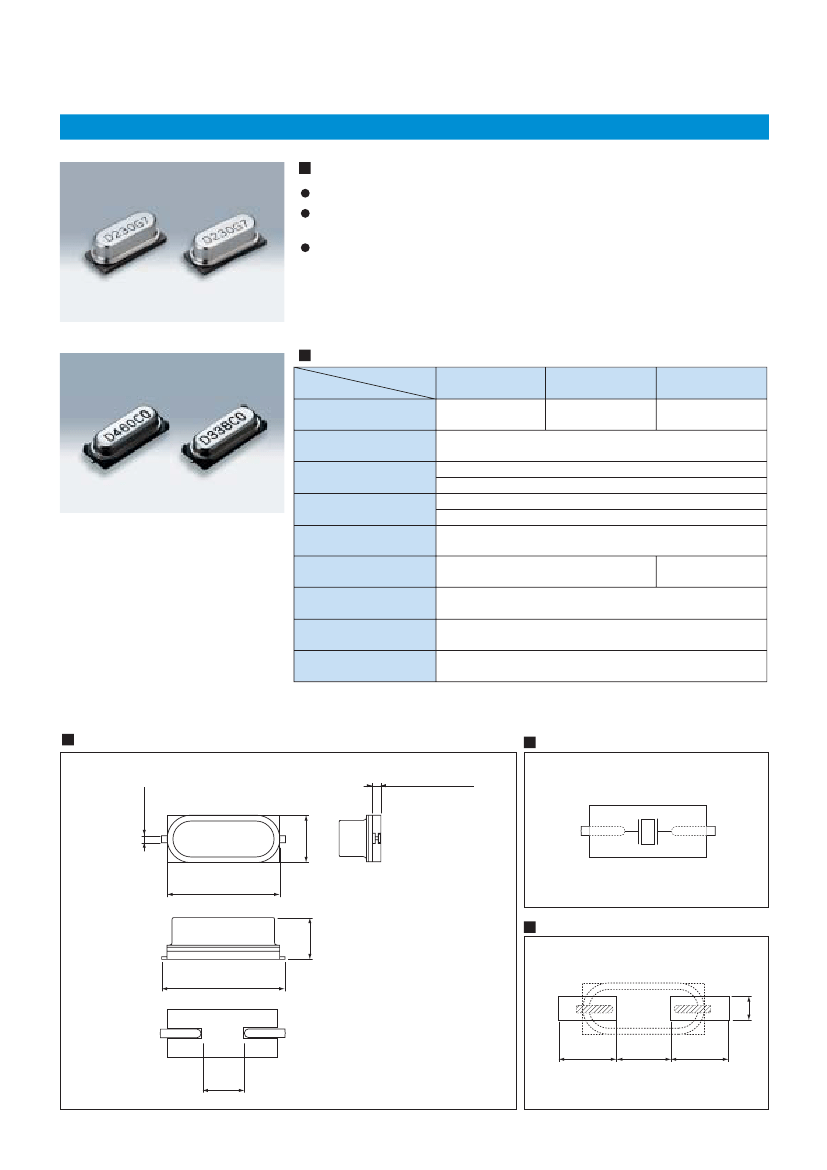

SMD Type Crystal Resonators

SMD-49, SMD-49TA/TB

Features

Surface mount type of AT-49 crystal resonators.

Highest reliability due to complete hermetic seal

with metal package.

Good for automatic mounting and reflow soldering.

SMD-49

Generic Specification

Type

Item

SMD-49

3.2∼70.0MHz

SMD-49TA

3.579∼

16.000MHz

SMD-49TB

16.000∼

70.000MHz

Frequency Range

Vibration Mode

Load Capacitance

Drive Level

SMD-49TA/TB

Fundamental, 3rd overtone

Series 12pF, 16pF, 20pF, 32pF（Fund.）

8pF, 10pF, 12pF, 16pF（3rd）

Fund : 10μW（300μW max.）

3rd : 50μW（1mW max.）

±50×10

-6

, ±100×10

-6

（at 25℃）

40∼300Ω

40∼100Ω

Frequency Tolerance

Series Resistance

Frequency Characteristics

±50×10

-6

, ±100×10

-6

／−10∼＋60℃(Ref. to 25℃)

over Temperature

Storage Temperature

Range

Aging

Packing Unit : SMD-49

1000pcs./reel

SMD-49TA/TB 2000pcs./reel

−30∼＋80℃

±5×10

-6

max.／year

Consult our sales representative for other

specifications or special specifications.

Dimensions[mm]

（1）

0.72min.

（3）

（2） 0.43±0.05

0.8±0.2

Internal Connections

〈Top View〉

（1）

11.0±0.5

（3）

11.4±0.5

（2）

（1）

4.2±0.3

（2）

2.8max.

（3）

2.5max.

4.6±0.4

Recommended Land Pattern [mm]

12.1±0.3

2

4.5

（1）SMD-49

（2）SMD-49TA

（3）SMD-49TB

4

4.5

4.9±0.2

15
