PCLR1907-LA: DescriptionSingle Color LED Array, Amber, Diffused, T-1 3/4, 4.8mm,; CategoryLED optoelectronic/LED photoelectric; File Size318KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com

Download Datasheet Parametric View All

PCLR1907-LA Overview

Single Color LED Array, Amber, Diffused, T-1 3/4, 4.8mm,

PCLR1907-LA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
color	AMBER
Configuration	SEPARATE, 7 ELEMENTS
JESD-609 code	e0
Lens type	DIFFUSED
Nominal luminous intensity	12.0 mcd
Installation features	RADIAL MOUNT
Number of functions	7
Number of terminals	14
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	5.99 mm
method of packing	BULK
peak wavelength	585 nm
shape	ROUND
size	4.8 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

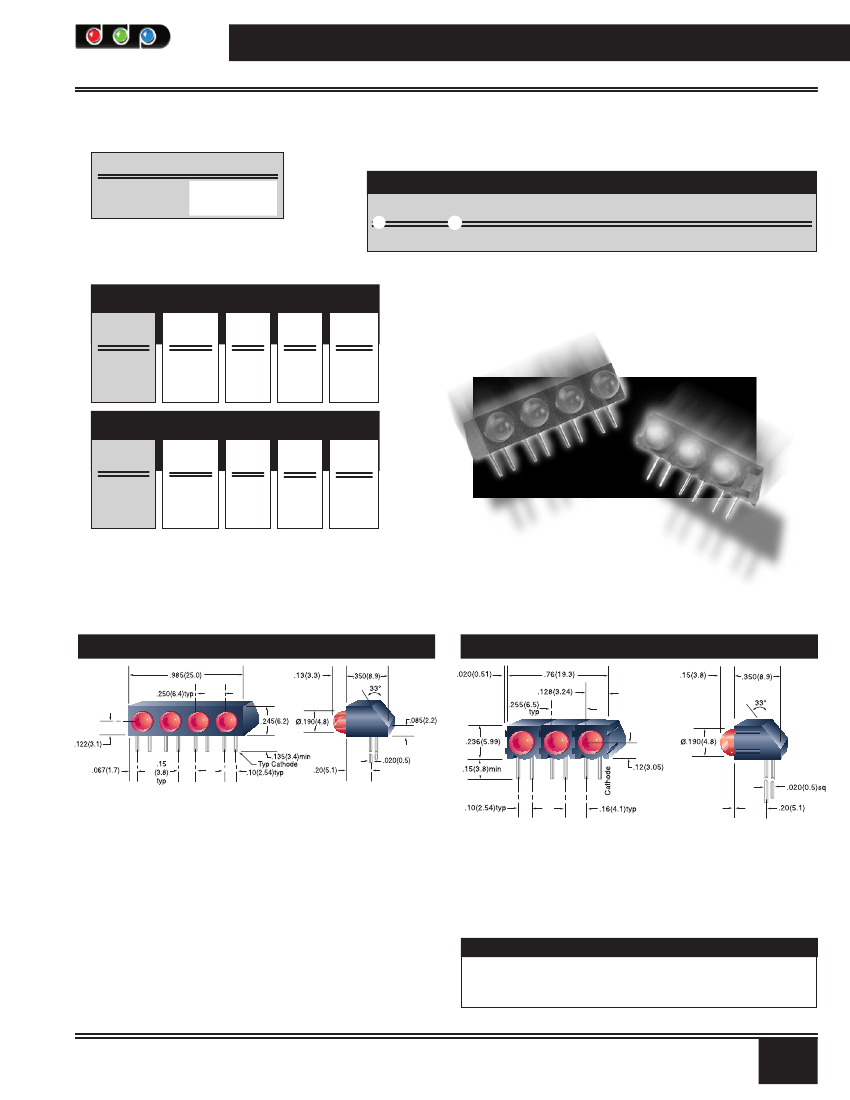

Data Display Products

®

T-1

3

/

4

PCB MOUNT LEDs

Medium Profile, Array

- For Detailed LED Data, See Discrete Section, MODEL 190

1

Model

PCL1904

PCLR190N

[1]

Right Angle

TO ORDER, FOLLOW THE EXAMPLE:

Select one

BOLD

component from each SHADED column in the tables below.

1

Model

2

LED

PCLR1904

-LG

➜

Part Number

PCLR1904-LG

2

LED

-LR

-LA

-LG

STANDARD INTENSITY -

DIFFUSED ENCAPSULATION

λpk

Color

RED

AMB

GRN

(nm)

Iv

[2]

(mcd)

Viewing

Angle

60

635

585

565

12

MEDIUM INTENSITY -

TINTED ENCAPSULATION

LED

-LCR

-LCA

-LCG

λpk

Color

RED

AMB

GRN

(nm)

Iv

[2]

(mcd)

Viewing

Angle

30

635

585

565

60

PCL1904

PCLR1903

[1] Replace “N” with the number of LEDs in the array, 2 – 4 (e.g. PCLR1903).

[2] Iv = typical luminous intensity @ If = 20mA (Ta=25°C).

All dimensions are in inches (mm)

Tolerances: .xx"(.x) ±.025"(.63) / .xxx"(.xx)±.010"(.25)

Specifications are subject to change without notice.

445 S. Douglas Street, El Segundo, CA 90245-4630 • (800) 421-6815 • (310) 640-0442 • FAX (310) 640-7639

ww w.datadisplay.com

23
