ASPI-0315FS-4R7M-T datasheet, PDF

Datasheet> All Categories > Passive components> inductor> ASPI-0315FS-4R7M-T

ASPI-0315FS-4R7M-T: DescriptionGeneral Purpose Inductor, 4.7uH, 20%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 3030-15M, CHIP, 3030-15M, ROHS COMPLIANT; CategoryPassive components inductor; File Size2MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ASPI-0315FS-4R7M-T Overview

General Purpose Inductor, 4.7uH, 20%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 3030-15M, CHIP, 3030-15M, ROHS COMPLIANT

ASPI-0315FS-4R7M-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3030-15M
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	3030-15M
core material	NICKEL-ZINC FERRITE
DC Resistance	0.12 Ω
Nominal inductance(L)	4.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ASPI-0315FS
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 20% TOLERANCE
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

LOW PROFILE SHIELDED SMD CHIP POWER INDUCTOR

ASPI-0315FS

FEATURES:

•

Small size and low profile: 1.5mm

Small DCR and high rated current

High reliability to mechanical stress

Magnetically shielded by magnetic powder molding

Suitable for RoHS reflow profile

RoHS

Compliant

APPLICATIONS:

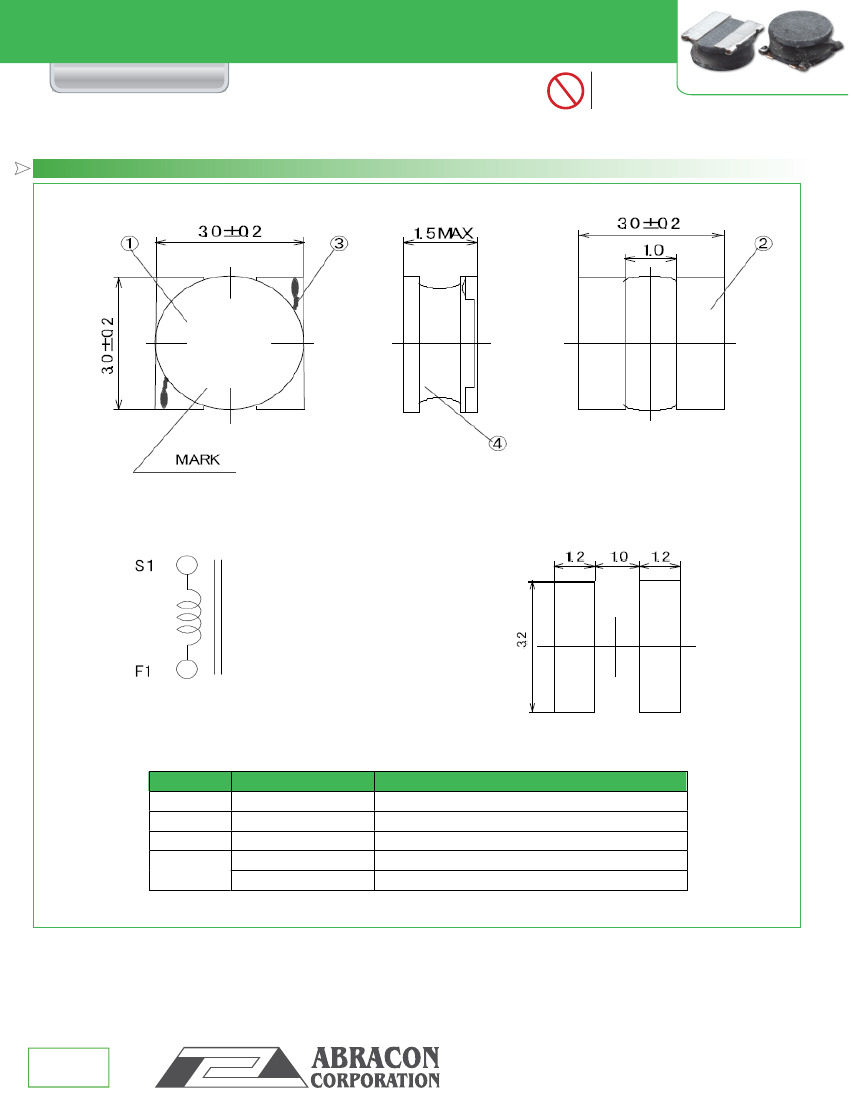

3.0 x 3.0 x 1.5mm

• Mobile phones

• MP3 & 4 and other portable communication equipment

• Digital cameras.

ELECTRICAL SPECIFICATIONS:

Abracon P/N:

Operating Temperature & Humidity:

Storage Temperature & Humidity:

ASPI-0310FS Series

-30°C to +100°C, 5% to 85% RH. Please avoid moisture due to the humidity.

-20°C to +60°C, 5% to 85% RH. Please avoid moisture due to the humidity.

Part Number

Units

Symbol

ASPI-0315FS-2R2M

ASPI-0315FS-3R3M

ASPI-0315FS-4R7M

ASPI-0315FS-6R8M

ASPI-0315FS-100M

ASPI-0315FS-220M

Inductance

µH±20%

2.2

3.3

4.7

6.8

10.0

22.0

DCR

mΩ±20%

DCR

120

160

230

550

Saturation

Current

Isat*

1.45

1.22

1.02

0.87

0.70

0.50

Temperature

Rise Current

Irms*

1.45

1.25

1.10

0.90

0.85

0.50

Marking

−

2R2

3R3

4R7

6R8

100

220

*The rated current is subject to change depending upon the temperature cooling condition.

Test Conditions

Inductance:

DCR:

Isat:

Irms:

100kHz,0.3V, Ta=20°C

Ta=20°C

∆L/L (initial) ≥ -30%

∆T ≤ 40°C

OPTIONS AND PART IDENTIFICATION

ASPI-0315FS -

Inductance Code

Please refer to the

table above

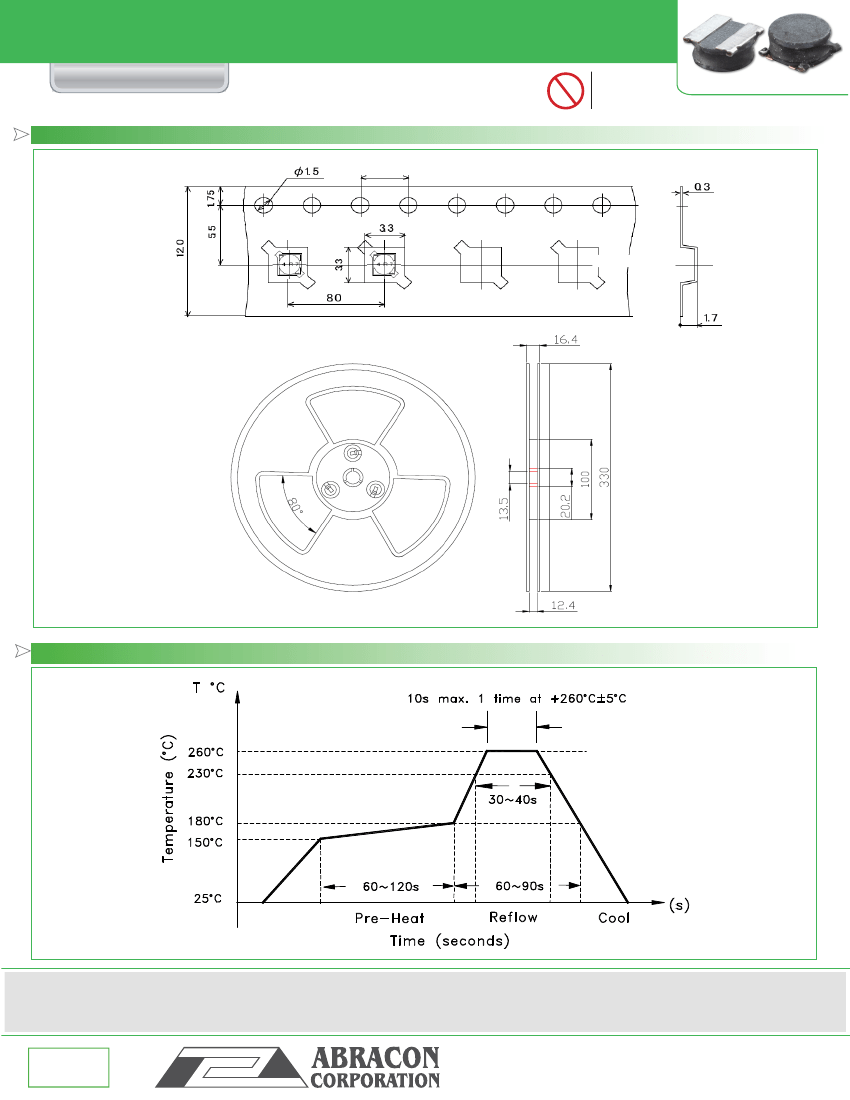

Packaging

T: Tape and Reel

(1kpcs / reel)

T4: Tape and Reel

(4kpcs / reel)

ABRACON IS

ISO9001:2008

CERTIFIED

、

Revised: 08.31.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

ASPI-0315FS-4R7M-T Related Products

	ASPI-0315FS-4R7M-T	ASPI-0315FS-6R8M-T	ASPI-0315FS-100M-T	ASPI-0315FS-2R2M-T	ASPI-0315FS-220M-T	ASPI-0315FS-3R3M-T
Description	General Purpose Inductor, 4.7uH, 20%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 3030-15M, CHIP, 3030-15M, ROHS COMPLIANT	General Purpose Inductor, 6.8uH, 20%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 3030-15M, CHIP, 3030-15M, ROHS COMPLIANT	General Purpose Inductor, 10uH, 20%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 3030-15M, CHIP, 3030-15M, ROHS COMPLIANT	General Purpose Inductor, 2.2uH, 20%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 3030-15M, CHIP, 3030-15M, ROHS COMPLIANT	General Purpose Inductor, 22uH, 20%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 3030-15M, CHIP, 3030-15M, ROHS COMPLIANT	General Purpose Inductor, 3.3uH, 20%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 3030-15M, CHIP, 3030-15M, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	3030-15M	3030-15M	3030-15M	3030-15M	3030-15M	3030-15M
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	3030-15M	3030-15M	3030-15M	3030-15M	3030-15M	3030-15M
core material	NICKEL-ZINC FERRITE	NICKEL-ZINC FERRITE	NICKEL-ZINC FERRITE	NICKEL-ZINC FERRITE	NICKEL-ZINC FERRITE	NICKEL-ZINC FERRITE
DC Resistance	0.12 Ω	0.16 Ω	0.23 Ω	0.06 Ω	0.55 Ω	0.08 Ω
Nominal inductance(L)	4.7 µH	6.8 µH	10 µH	2.2 µH	22 µH	3.3 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ASPI-0315FS	ASPI-0315FS	ASPI-0315FS	ASPI-0315FS	ASPI-0315FS	ASPI-0315FS
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES
special characteristics	DCR IS MEASURED AT 20% TOLERANCE	DCR IS MEASURED AT 20% TOLERANCE	DCR IS MEASURED AT 20% TOLERANCE	DCR IS MEASURED AT 20% TOLERANCE	DCR IS MEASURED AT 20% TOLERANCE	DCR IS MEASURED AT 20% TOLERANCE
surface mount	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%
Base Number Matches	1	1	1	1	1	1
