SL28773ELC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> SL28773ELC

SL28773ELC: DescriptionProcessor Specific Clock Generator, 100MHz, CMOS, 5 X 5 MM, ROHS COMPLIANT, QFN-32; CategoryThe embedded processor and controller Microcontrollers and processors; File Size418KB，22 Pages; ManufacturerSilicon Laboratories Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

SL28773ELC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SL28773ELC	-	-	View	Buy Now

SL28773ELC Overview

Processor Specific Clock Generator, 100MHz, CMOS, 5 X 5 MM, ROHS COMPLIANT, QFN-32

SL28773ELC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	QFN
package instruction	HVQCCN,
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	S-XQCC-N32
length	5 mm
Number of terminals	32
Maximum operating temperature	85 °C
Minimum operating temperature
Maximum output clock frequency	100 MHz
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Master clock/crystal nominal frequency	14.318 MHz
Certification status	Not Qualified
Maximum seat height	0.8 mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC
Base Number Matches	1

Preview

Download Datasheet

View All

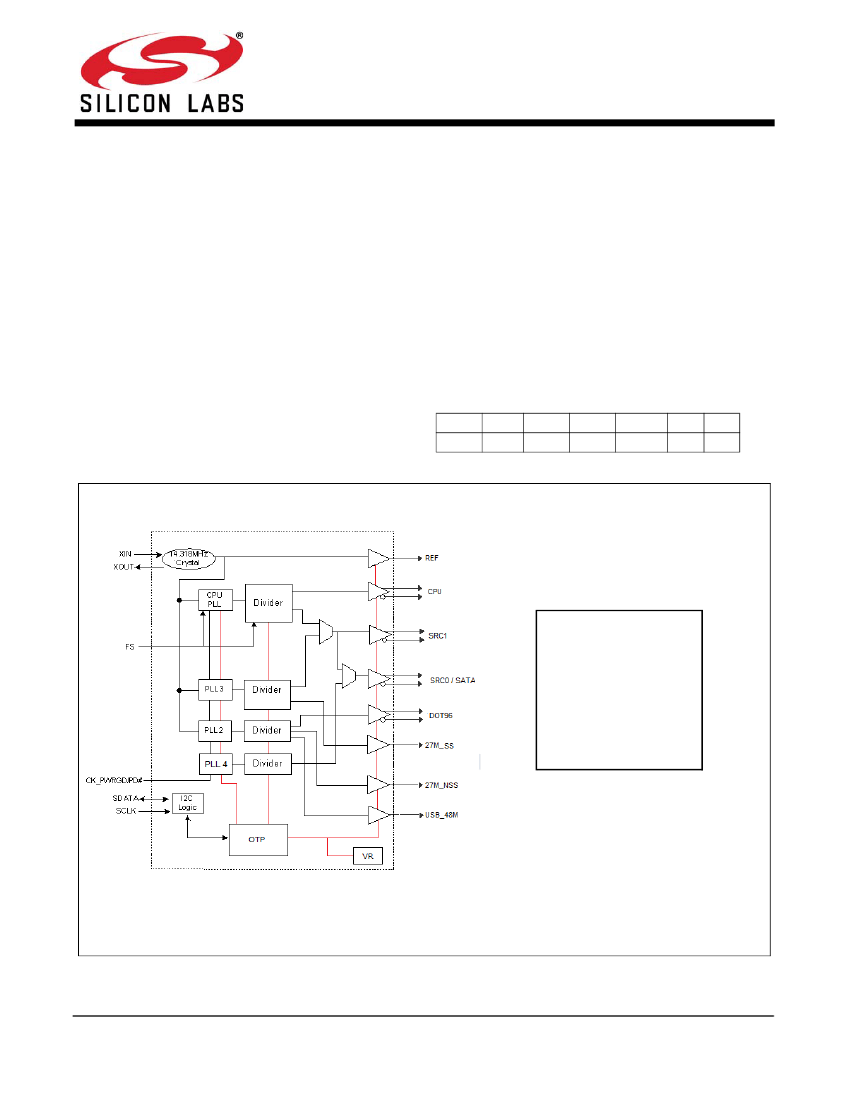

SL28773

EProClock

Generator for Intel Calpella Chipset

Features

•

Intel CK505 Clock Revision 1.0 Compliant

• Hybrid Video Support - Simultaneous DOT96,

27MHz_SS and 27MHz_NSS video clocks

• PCI-Express Gen 2 Compliant

• Low power push-pull type differential output buffers

• Integrated voltage regulator

• Integrated resistors on differential clocks

• Scalable low voltage VDD_IO (3.3V to 1.05V)

• Wireless friendly 3-bits slew rate control on

single-ended clocks.

• Differential CPU clocks with selectable frequency

• 100MHz Differential SRC clocks

• 100MHz Differential SATA clocks

• 96MHz Differential DOT clock

• 27MHz Video clock

• 48MHz USB clock

• Buffered Reference Clock 14.318MHz

• PC EProClock

Programmable Technology

• I

C support with readback capabilities

• Triangular Spread Spectrum profile for maximum

electromagnetic interference (EMI) reduction

• 3.3V Power supply

• 32-pin QFN package

CPU

SRC

SATA DOT96 USB_48 REF 27M

Block Diagram

Pin Configuration

CKPWRGD/ PD#

VDD_CPU

CPU0

CPU#0

SL28773

VSS_CPU

CPU1

CPU#1

VDD_CPU_IO

VDD_SRC

9 10 11 12 13 14 15 16

SRC0# / SATA#

VDD_SRC_IO

SRC0 / SATA

CPU_STP#

VSS_SRC

VSS_27

SRC1

SRC#1

REF0/ FS**

XTAL_OUT

32 31 30 29 28 27 26 25

VDD_DOT

VSS_DOT

DOT96

DOT96#

USB_48

VDD_27

27_NSS

27_SS

** Internal 100K-ohm Pull-Down Resistor

........................ Document #: 001-08400 Rev ** Page 1 of 21

400 West Cesar Chavez, Austin, TX 78701

1+(512) 416-8500

1+(512) 416-9669

www.silabs.com

VSS_REF

VDD_REF

XTAL_IN

SDATA

SCLK
