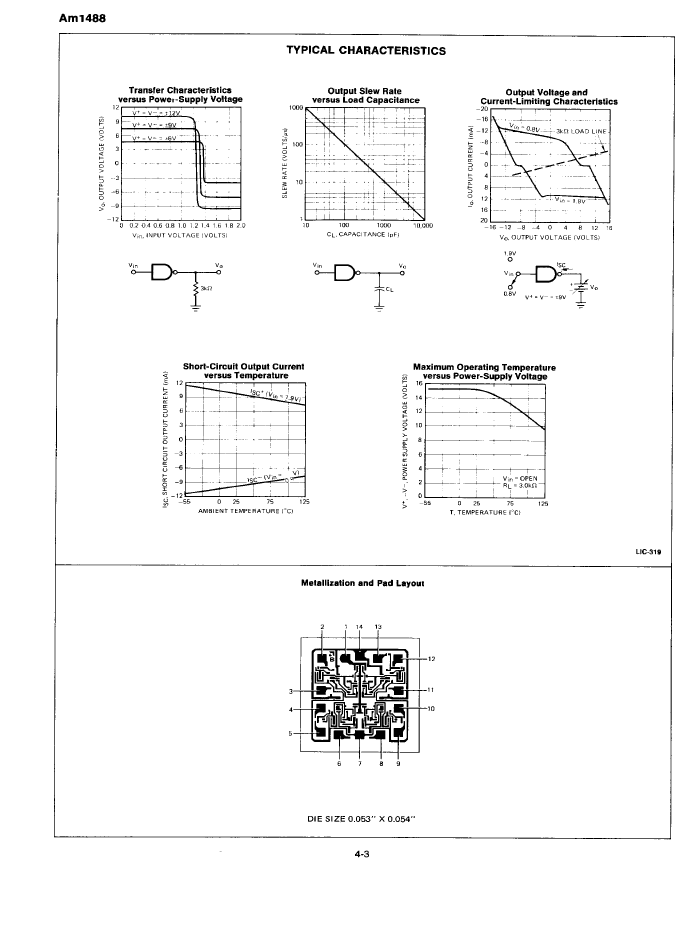

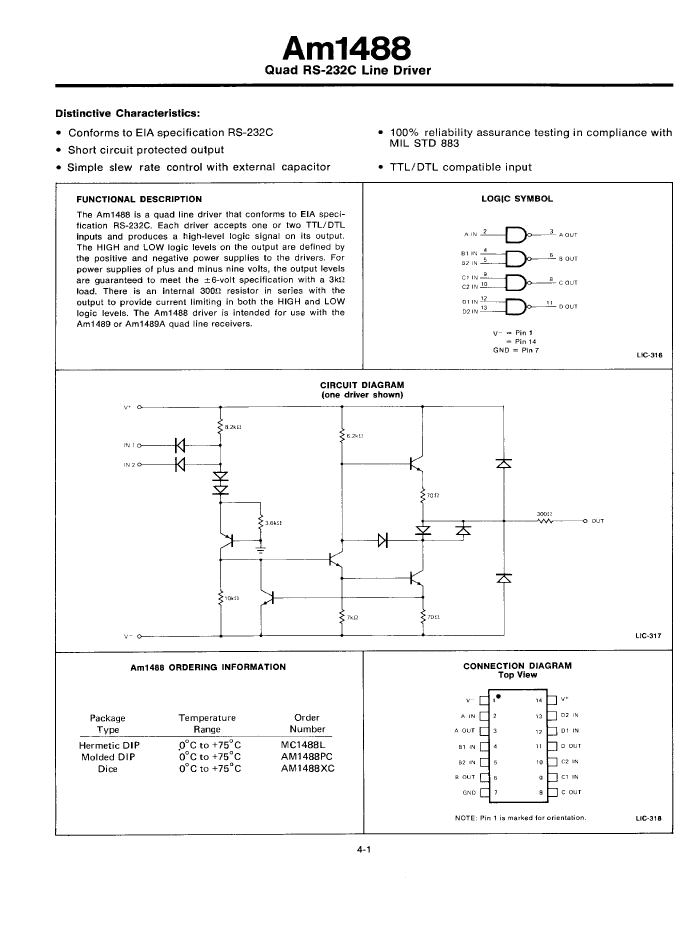

Line Driver, 4 Func, 1 Driver, TTL, 0.053 X 0.054 INCH, DIE-14

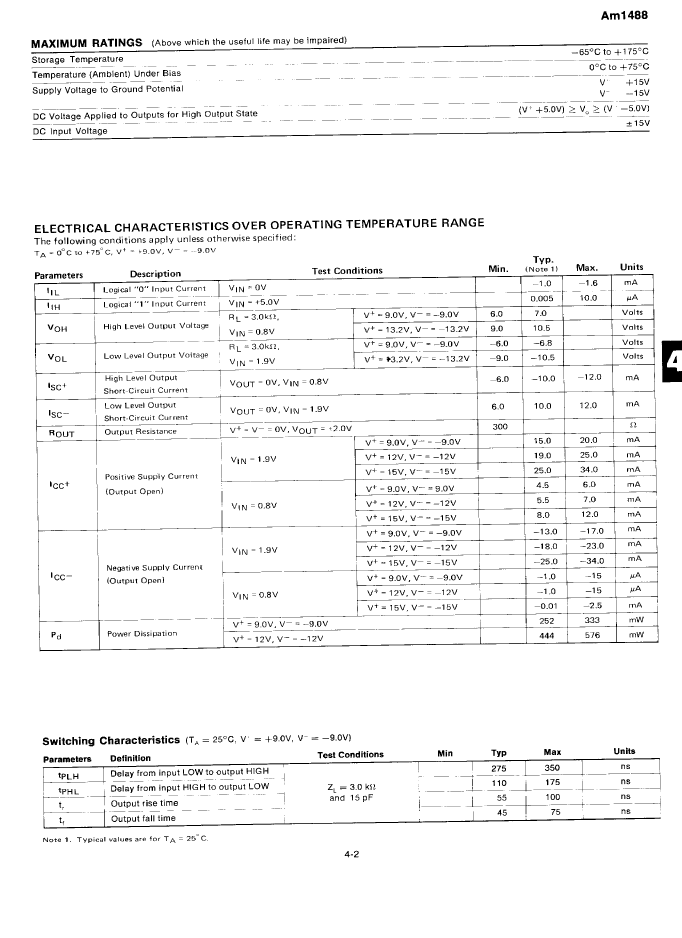

| Parameter Name | Attribute value |
| Parts packaging code | DIE |
| package instruction | DIE, |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Differential output | NO |
| Number of drives | 1 |
| Input properties | GATED |
| Interface integrated circuit type | LINE DRIVER |
| Interface standards | EIA-232-C |
| JESD-30 code | R-XUUC-N14 |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | |
| Package body material | UNSPECIFIED |
| encapsulated code | DIE |
| Package shape | RECTANGULAR |
| Package form | UNCASED CHIP |
| Certification status | Not Qualified |
| Maximum receive delay | |
| Nominal supply voltage | 9 V |
| Supply voltage1-Nom | -9 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal form | NO LEAD |
| Terminal location | UPPER |
| maximum transmission delay | 175 ns |
| Base Number Matches | 1 |
| AM1488XC | AM1488PC | MC1488L | |
|---|---|---|---|
| Description | Line Driver, 4 Func, 1 Driver, TTL, 0.053 X 0.054 INCH, DIE-14 | Line Driver, 4 Func, 1 Driver, TTL, PDIP14, PLASTIC, DIP-14 | Line Driver, 4 Func, 1 Driver, TTL, CDIP14, HERMETIC SEALED, DIP-14 |
| Parts packaging code | DIE | DIP | DIP |
| package instruction | DIE, | DIP, DIP14,.3 | DIP, DIP14,.3 |
| Contacts | 14 | 14 | 14 |
| Reach Compliance Code | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Differential output | NO | NO | NO |
| Number of drives | 1 | 1 | 1 |
| Input properties | GATED | GATED | GATED |
| Interface integrated circuit type | LINE DRIVER | LINE DRIVER | LINE DRIVER |
| Interface standards | EIA-232-C | EIA-232-C | EIA-232-C |
| JESD-30 code | R-XUUC-N14 | R-PDIP-T14 | R-CDIP-T14 |
| Number of functions | 4 | 4 | 4 |
| Number of terminals | 14 | 14 | 14 |
| Maximum operating temperature | 75 °C | 75 °C | 75 °C |
| Package body material | UNSPECIFIED | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIE | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | UNCASED CHIP | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage | 9 V | 9 V | 9 V |
| Supply voltage1-Nom | -9 V | -9 V | -9 V |
| surface mount | YES | NO | NO |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED |
| Terminal form | NO LEAD | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | UPPER | DUAL | DUAL |
| maximum transmission delay | 175 ns | 175 ns | 175 ns |
| Base Number Matches | 1 | 1 | - |
| Is it Rohs certified? | - | incompatible | incompatible |
| High level input current maximum value | - | 0.00001 A | 0.00001 A |
| JESD-609 code | - | e0 | e0 |
| length | - | 19.304 mm | 19.431 mm |
| Nominal negative supply voltage | - | -9 V | -9 V |
| Minimum output swing | - | 12 V | 12 V |
| Encapsulate equivalent code | - | DIP14,.3 | DIP14,.3 |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED |
| power supply | - | +-9 V | +-9 V |
| Maximum seat height | - | 5.08 mm | 5.08 mm |
| Terminal surface | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal pitch | - | 2.54 mm | 2.54 mm |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED |
| width | - | 7.62 mm | 7.62 mm |
