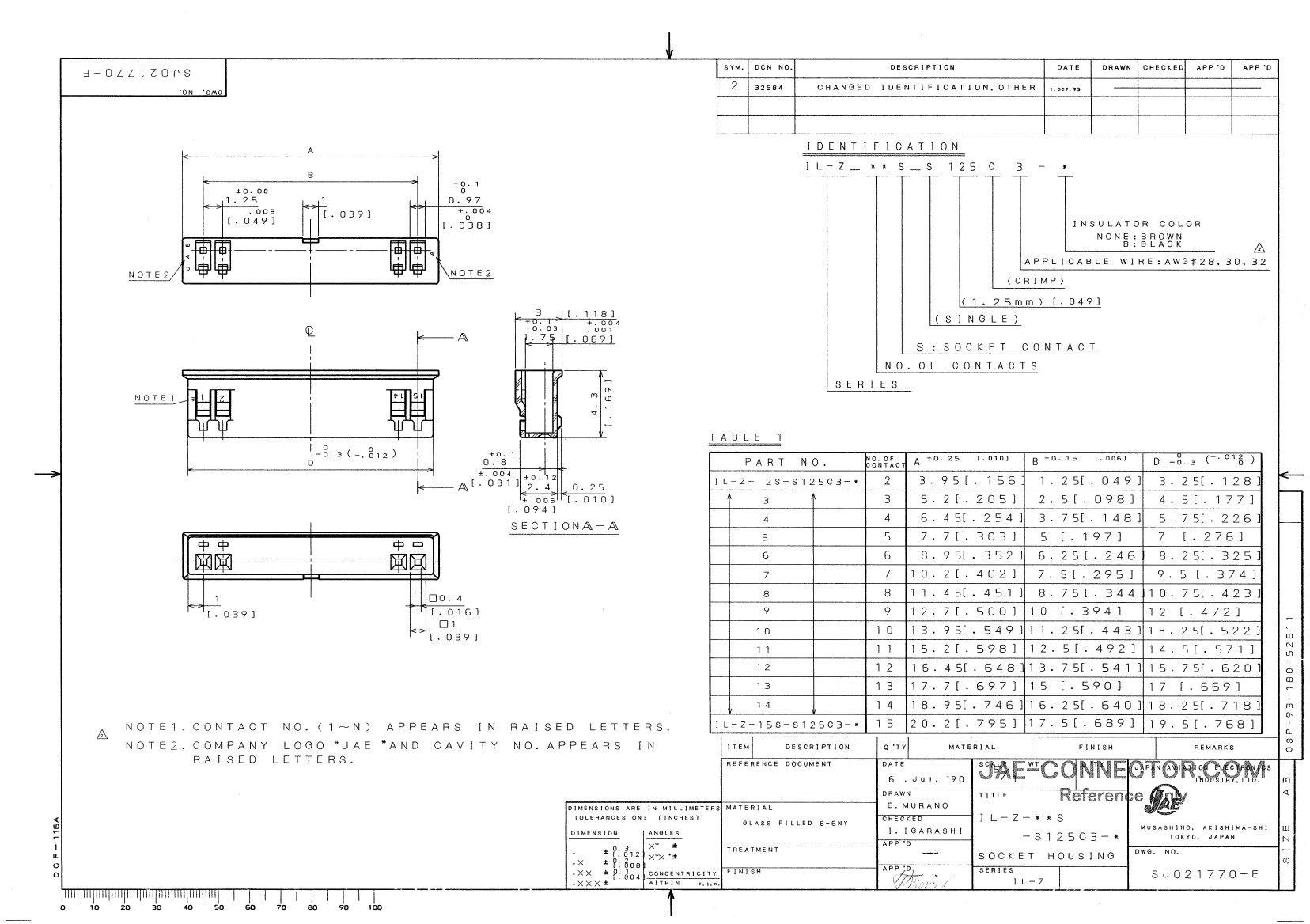

14 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, SOCKET, LEAD FREE
| Parameter Name | Attribute value |
| package instruction | LEAD FREE |
| Reach Compliance Code | unknown |
| Other features | COMPATIBLE CONTACT: IL-Z-C3-A-15000 |
| body width | 0.118 inch |
| subject depth | 0.169 inch |
| body length | 0.746 inch |
| Body/casing type | SOCKET |
| Connector type | BOARD CONNECTOR |
| Contactor design | PREASSEM CONN |
| Contact to complete cooperation | TIN |
| Contact completed and terminated | TIN |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Filter function | NO |
| IEC compliance | NO |
| Minimum insulation diameter | 0.02 inch |
| Insulation resistance | 100000000 Ω |
| Insulator color | BROWN |
| insulator material | NYLON |
| MIL compliance | NO |
| Manufacturer's serial number | IL-Z |
| Plug contact pitch | 0.049 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING MECH |
| Installation type | CABLE |
| Number of rows loaded | 1 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | |
| Termination type | CRIMP |
| Total number of contacts | 14 |
| UL Flammability Code | 94V-0 |
| Maximum wire diameter | 28 AWG |
| Minimum wire diameter | 32 AWG |
| Base Number Matches | 1 |
| IL-Z-14S-S125C3 | IL-Z-7S-S125C3 | IL-Z-11S-S125C3 | IL-Z-4S-S125C3 | IL-Z-3S-S125C3 | |
|---|---|---|---|---|---|
| Description | 14 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, SOCKET, LEAD FREE | Board Connector, 7 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking Mech, Brown Insulator, Socket | 11 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP, SOCKET, LEAD FREE | Board Connector, 4 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking Mech, Brown Insulator, Socket | Board Connector, 3 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking, Socket |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Other features | COMPATIBLE CONTACT: IL-Z-C3-A-15000 | COMPATIBLE CONTACT: IL-Z-C3-A-15000 | COMPATIBLE CONTACT: IL-Z-C3-A-15000 | COMPATIBLE CONTACT: IL-Z-C3-A-15000 | COMPATIBLE CONTACT: IL-Z-C3-A-15000 |
| body width | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch |
| subject depth | 0.169 inch | 0.169 inch | 0.169 inch | 0.169 inch | 0.169 inch |
| body length | 0.746 inch | 0.402 inch | 0.598 inch | 0.254 inch | 0.205 inch |
| Body/casing type | SOCKET | SOCKET | SOCKET | SOCKET | SOCKET |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | TIN | TIN | TIN | TIN | TIN |
| Contact completed and terminated | TIN | Tin (Sn) | TIN | Tin (Sn) | Tin (Sn) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 700VAC V |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| insulator material | NYLON | NYLON | NYLON | NYLON | NYLON |
| MIL compliance | NO | NO | NO | NO | NO |
| Manufacturer's serial number | IL-Z | IL-Z | IL-Z | IL-Z | IL-Z |
| Plug contact pitch | 0.049 inch | 0.049 inch | 0.049 inch | 0.049 inch | 0.049 inch |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING MECH | LOCKING MECH | LOCKING MECH | LOCKING MECH | LOCKING |
| Installation type | CABLE | CABLE | CABLE | CABLE | CABLE |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | 1 A |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Termination type | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP |
| Total number of contacts | 14 | 7 | 11 | 4 | 3 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Maximum wire diameter | 28 AWG | 28 AWG | 28 AWG | 28 AWG | 28 AWG |
| Minimum wire diameter | 32 AWG | 32 AWG | 32 AWG | 32 AWG | 32 AWG |
| Contactor design | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN | - |
| Minimum insulation diameter | 0.02 inch | 0.02 inch | 0.02 inch | 0.02 inch | - |
| Insulator color | BROWN | BROWN | BROWN | BROWN | - |
| Guideline | UL | UL | UL | UL | - |
| Base Number Matches | 1 | 1 | 1 | - | - |
| Is it Rohs certified? | - | conform to | - | conform to | conform to |
| JESD-609 code | - | e3 | - | e3 | e3 |
