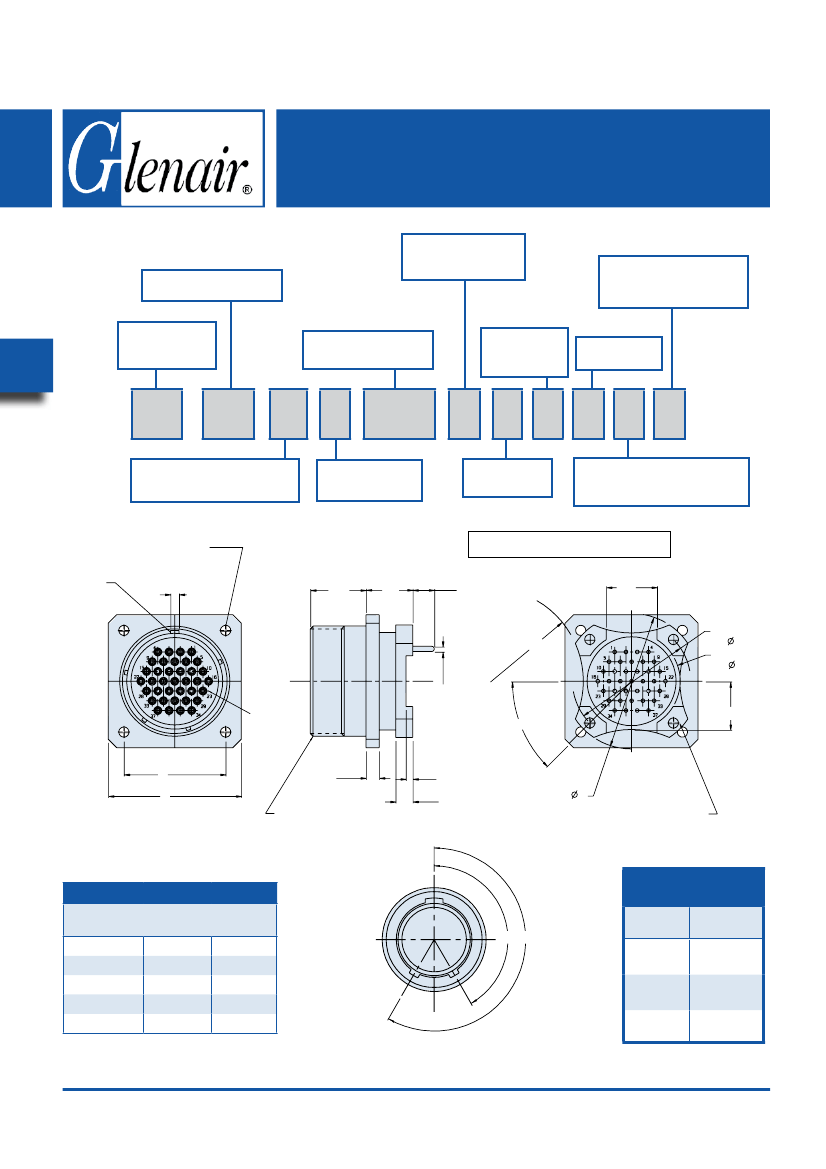

MIL-DTL-38999
Connectors
MIL-DTL-38999 Series III
Dual Flange Wall Mount Receptacle with P.C.Tails
240-383D
MIL-DTL-38999 Series III Filter Connector
Contact Gender
P
- Pin
S
- Socket
Alternate Key Position
Per MIL-DTL-38999
A, B, C, D, E, N = Normal
B
Filter Connector
Product Code
Insert Arrangement
IAW MIL-STD-1560
Filter Type
P
- Pi Circuit
C
- C Circuit
Capacitance
(See Table II)
240 - 383
D
P
15-35
P
P
Termination
P
- PC Tail
P
A
N
N
Shell Style
D
- Dual Flange Wall Mount
Connector Class
(See Table I)
Flange Mounting Style
N
- Not Applicable/Mfgs. Option
Diameter
Ø
Q
Master
Keyway
.820 (20.8) .691 (17.6)
.815 (20.7) .686 (17.4)
.131 (3.3)
.125 (3.2)
D
- Dual Flange Wall Mount
.155
±.020
(3.9 ± .5)
P
4PL
Interrupted
K
Interrupted
L
Rad H 4PL
U
(See Table IV)
See Note 3
45° 4PL
N 4PL
R
S
.195 (5.0)
Thread B
.100 (2.5)
.250 (6.4)
Interrupted
J
4-40 Helicoils
Installed per NASM 33537
Tang Removed
TABLE IV
ALTERNATE KEY AND
KEYWAY POSITION
Position
A
B
C
D
A°
150°
75°
95°
140°
B°
210°
210°
230°
275°
A° B°
TABLE V:
PC TAIL DIAMETER
Contact
Size
22D
20
16
ØU
.018/.021
(0.5/0.5)
.029/.031
(0.7/0.8)
.038/.042
(1.0/1.1)
Normal and Alternate Position
Key Rotation
© 2008 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
B-30

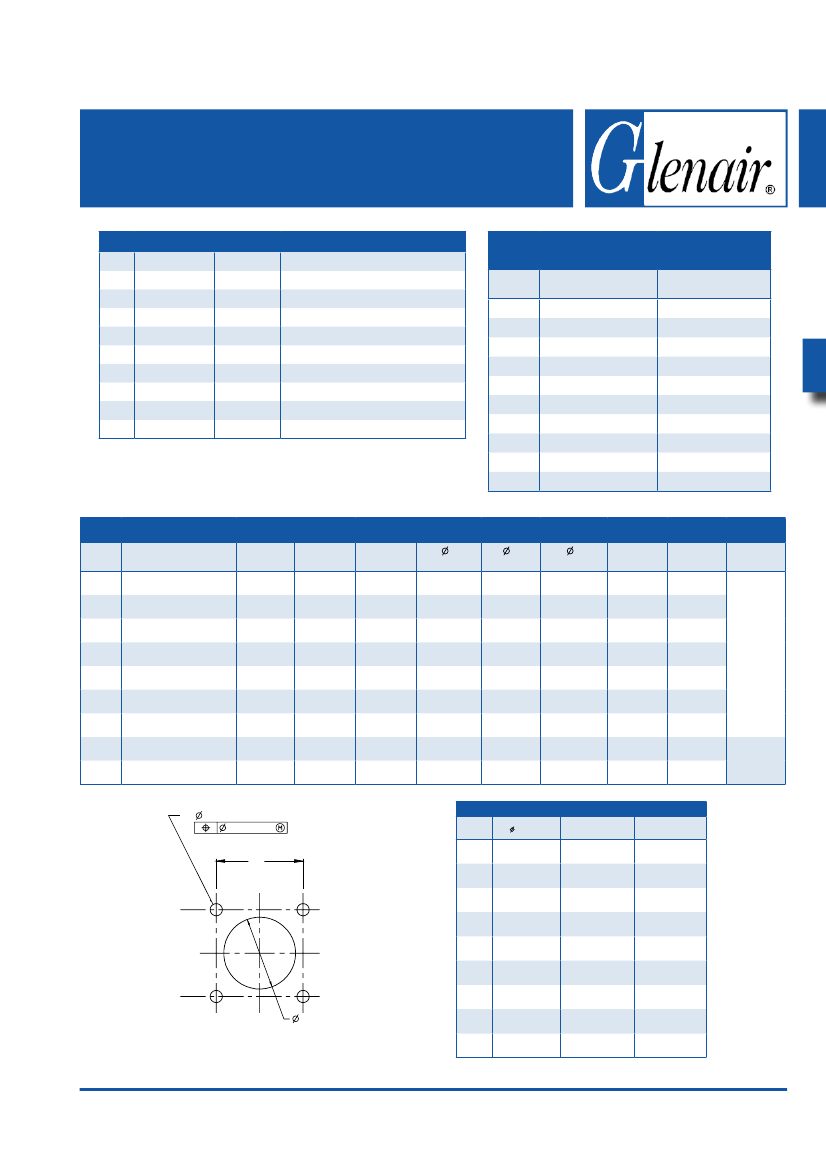

Dual Flange Wall Mount Receptacle with P.C.Tails
TABLE I: CONNECTOR CLASS
SYM
M
MT
NF
P
XM
XMT
XW
ZN
H2*
CLASS
Environmental
Environmental
Environmental
Environmental
Environmental
Environmental
Environmental
Environmental
Hermetic
MATERIAL
Aluminum
Aluminum
Aluminum
Stainless
Composite
Composite
Composite
Aluminum
Stainless
FINISH DESCRIPTION
Electroless Nickel
Nickel Fluorocarbon Polymer (Ni-PTFE)
240-383D
MIL-DTL-38999 Series III Filter Connector
TABLE II: CAPACITOR ARRAY CODE
CAPACITANCE RANGE
CLASS
X*
Y*
Z*
A
B
C
D
E
F
G
PI - CIRCUIT (pF)
160,000 - 240,000
80,000 - 120,000
60,000 - 90,000
38,000 - 56,000
32,000 - 45,000
18,000 - 33,000
8,000 - 12,000
3,300 - 5,000
800 - 1,300
400 - 600
C - CIRCUIT (pF)
80,000 - 120,000
40,000 - 60,000
30,000 - 45,000
19,000 - 28,000
16,000 - 22,500
9,000 - 16,500
4,000 - 6,000
1,650 - 2,500
400 - 650
200 - 300
Cad. O.D. Over Electroless Nickel
Electro-Deposited Nickel
Electroless Nickel
Nickel Fluorocarbon Polymer (Ni-PTFE)
Cad. O.D. Over Electroless Nickel
Zinc-Nickel Over Electroless Nickel
Electroless Nickel
* Some dimensions do not apply, see sales drawing 240-383JH2
Consult Factory for Additional Filter Types, TVS
Diodes, and other Custom Configurations.
* Reduced DWV – Please consult factory.
TABLE III: DIMENSIONS
SHELL
SIZE
B THREAD (PLATED)
P
+/- .01 (.25)
R
BSC
S
+/- .012 (.3)
J
+/- .005 (.13)
K
BSC
L
+/- .005 (.13)
H
N
+/- .020 (.51) +/- .020 (.51)
ØQ
± .010
9
11
13
15
17
19
21
23
25
.625-.1P-.3L-TS-2A
.7500- .1P- .3L-TS-2A
.8750- .1P- .3L-TS-2A
1.000- .1P- .3L-TS-2A
.225 (5.7)
.250 (6.4)
.250 (6.4)
.325 (8.2)
.719 (18.3) .937 (23.8) 1.016 (25.8) .752 (19.1)
.812 (20.6) 1.181 (30.0) 1.062 (27.0) .850 (21.6)
.906 (23.0) 1.277 (32.4) 1.250 (31.8) .994 (25.2)
.532 (13.5)
.595 (15.1)
.720 (18.3)
.225 (5.7)
.250 (6.4)
.375 (9.5)
.275 (7.0)
.290 (7.4)
.370 (9.4)
.128
(3.3)
.969 (24.6) 1.371 (34.8) 1.375 (34.9) 1.119 (28.4) .843 (21.4)
.438 (11.1) .440 (11.2)
1.1875- .1P- .3L-TS-2A .375 (9.5) 1.062 (27.0) 1.462 (37.1) 1.500 (38.1) 1.237 (31.4) 1.000 (25.4) .562 (14.3) .495 (12.6)
1.2500- .1P- .3L-TS-2A .500 (12.7) 1.156 (29.4) 1.588 (40.3) 1.625 (41.3) 1.379 (35.0) 1.125 (28.6) .875 (22.2) .540 (13.7)
1.3750- .1P- .3L-TS-2A .562 (14.3) 1.250 (31.8) 1.714 (43.5) 1.750 (44.5) 1.489 (37.8) 1.240 (31.5) 1.170 (29.7) .625 (15.9)
1.5000- .1P- .3L-TS-2A .688 (17.5) 1.375 (34.9) 1.840 (46.7) 1.875 (47.6) 1.619 (41.1) 1.328 (33.7) 1.250 (31.8) .660 (16.8)
1.6250- .1P- .3L-TS-2A .750 (19.1) 1.500 (38.1) 1.962 (49.8) 2.000 (50.8) 1.744 (44.3) 1.453 (36.9) 1.375 (34.9) .740 (18.8)
.156
(4.0)
4x
M Holes
.005 (.13)
N
Shell
Size
09
11
13
15
17
19
21
Panel Cutout Dimensions
L Min
.516 (13.1)
.625 (15.9)
.750 (19.1)
.906 (23.0)
1.016 (25.8)
1.141 (29.0)
1.266 (32.2)
1.375 (34.9)
1.484 (37.7)
M Holes
.133 (3.4)
.123 (3.1)
.133 (3.4)
.123 (3.1)
.133 (3.4)
.123 (3.1)
.133 (3.4)
.123 (3.1)
.133 (3.4)
.123 (3.1)
.133 (3.4)
.123 (3.1)
.133 (3.4)
.123 (3.1)
.159 (4.0)
.149 (3.8)
.155 (3.9)
.145 (3.7)
N BSC
.719 (18.3)
.812 (20.6)
.906 (23.0)
.969 (24.6)
1.062 (27.0)
1.156 (29.4)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
Back Panel
Mounting
L Min
23
25
© 2008 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
B-31
MIL-DTL-38999
B
