8308 SC and 8208 FC
Hot Melt Connectors
Ultra High Temp Single-mode
3M SC and FC Ultra High Temp Hot Melt
Connectors are the first connectors in the
industry to be truly field mountable and meet
Telcordia environmental specifications for
single-mode telephony.
Think of the headaches that you have with managing cable
assembly inventories and the logistics of ordering the correct
length. These problems can be solved by pulling the cable
first and then terminating the connector at the frame. 3M’s
Hot Melt connectors can now be used in telephony
applications to make central office and outside plant
installations neat and easy.
3M
TM
Ultra High Temp Hot Melt Connectors
have been tested to 100°C (212°F) and can be
used in even the hottest outdoor
environments.
3M’s years of experience with preloaded adhesive in fiber
optic connectors has enabled the development of a connector
with all the advantages of Hot Melt, including the ability to
reheat and reposition the fiber in the termination process. This
is an easy-to-install field-mount connector with no additional
internal splice and the proven fiber retention of Hot Melt
connectors.

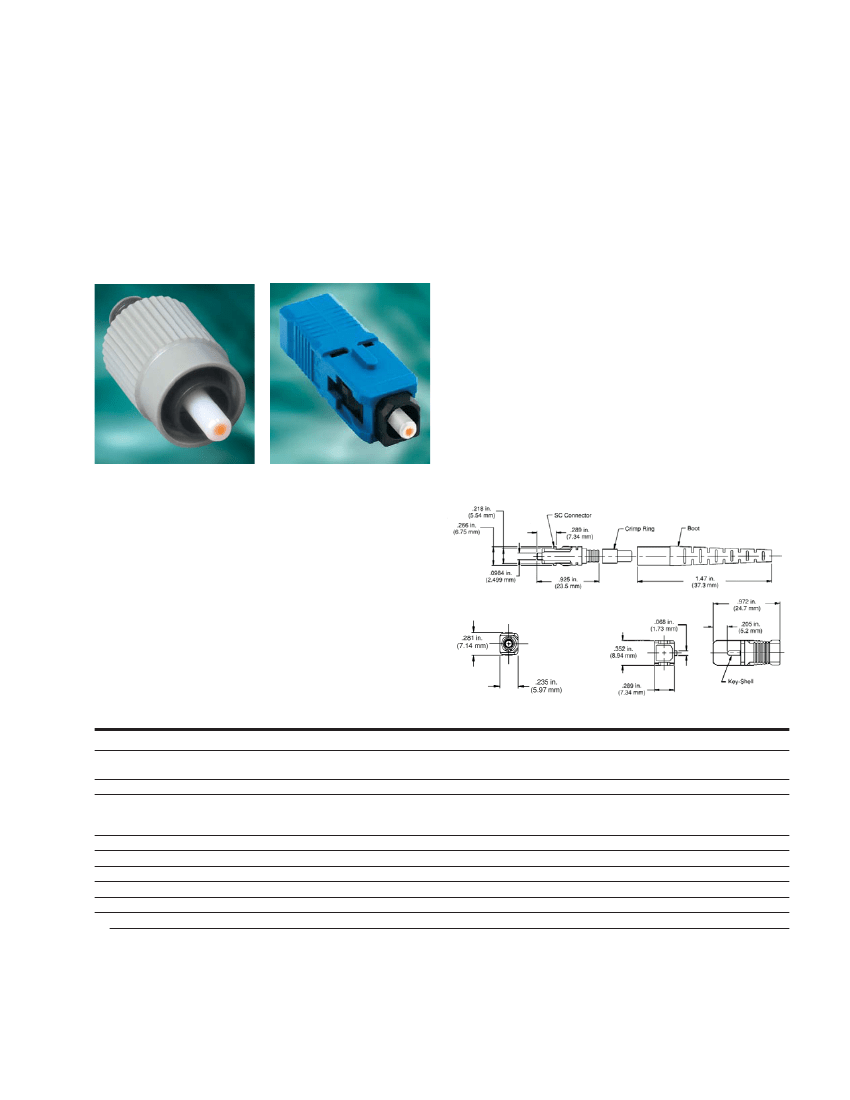

SC Connector
(short boot available)
Features
Designed to meet Telcordia GR-326-CORE, Issue 3 single-mode
environmental specifications and exceeds TIA/EIA 568-B.3 standard
Ease of use on site
Allows custom length cable assemblies to be built on site
Benefits
Meets or exceeds telephone and data industry
requirements for long-term reliability, except as noted below*
Quick termination in <2 minutes; High-yield
Enhances cable management in CO or network
Eliminates quality inspection for cable slack
Reduces cable assembly inventory
Single fiber interface provides low loss
Not dependent on mechanical retention alone
Stable in outside plant environment
Reliable in high-speed transmission
No epoxy mess; no pot life
Allows fiber repositioning; High-yield
Easier to see when polishing is complete
No pre-polished stub with internal splice
Proven adhesive for fiber retention
<0.2dB change at 100°C (212°F)
3M field-polishing process produces -55 dB reflection
Pre-loaded adhesive
Re-heatable adhesive
Red dot of adhesive
* SC connectors pass all of the mechanical tests in Telecordia GR-326, except transmission under applied tensile load at a 90° pull of 3.3 lbs.
or greater. This is consistent with other SC connectors that adhere to the NTT standard boot design. Transmission returns to the original
readings as soon as the load is released.

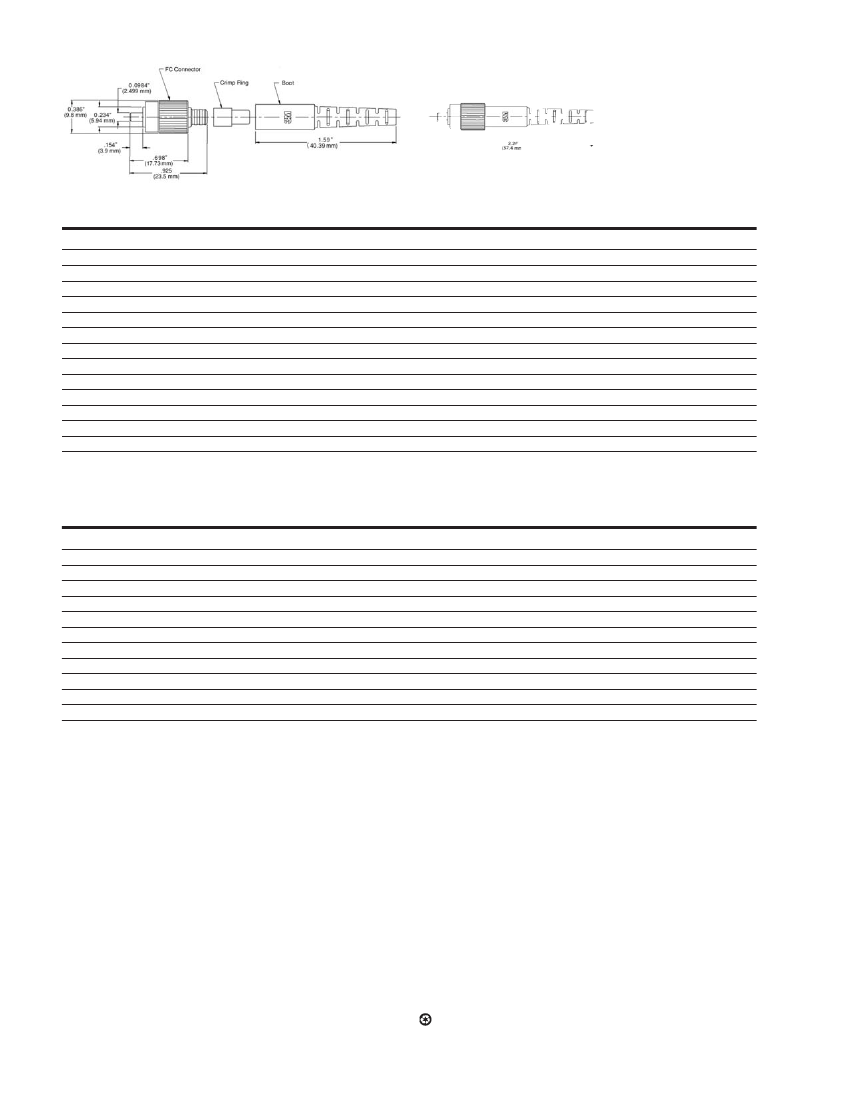

FC Connector
FC Connector
(short boot available)
Specifications
Product Number
Operating and Storage Temperature
Insertion Loss* (one mated pair)
Reflection*
Mating Durability (500 matings)
Proof Test
Straight Pull
Side Pull
Testing Specification
Materials and Identification
Ferrule
Housing Body
Boot
Flame Retardancy
Adhesive
*Single-mode connectors tested at 1310 nm and 1550 nm
8308 SC and 8208 FC
-40°C to 100°C (-40°F to 212°F)
<0.2 dB typical
<-55 dB typical
<0.2 dB change
<0.2 dB increase @ 15 lbs.
<0.2 dB increase @ 7.5 lbs.
Telcordia GR-326-CORE, TIA/EIA 568.B
Zirconia Ceramic
Engineered Resin
Thermoplastic Elastomer
UL-94 V-0
Red dot on ferrule
Ordering Information
Model Number
8308-U
8308-U1K
8208-U
8208-U1K
Kits and Accessories
6355
6351
6355-U
05-00053
661X-0.5S
863X-0.02S
6850-A
Description
SC SM UHT Hot Melt Connector, blue boot
SC SM UHT Hot Melt Connector, Bulk, blue boot
FC SM UHT Hot Melt Connector, blue boot
FC SM UHT Hot Melt Connector, Bulk, blue boot
Hot Melt Termination Kit for 3M ST, FC, SC Hot Melt Connectors, 120V
Hot Melt Termination Kit for 3M ST, FC, SC Hot Melt Connectors, 230V
UHT Hot Melt Upgrade Kit
Soft Polishing Pad
0.5 µm Diamond Lapping Film
0.02 µm Lapping Film
Hot Melt Polishing Machine
MOQ
60 each
1,000 each
60 each
1,000 each
1 each
1 each
1 each
1
5 sheets
50 sheets
1 Kit
Packaging
1/bag, 60/carton
1,000/carton
1/bag, 60/carton
1,000/carton
Kit
Kit
Kit
1/carton
5 shts/pkg 100/carton
50 shts/carton
Kit
Important Notice
All statements, technical information, and recommendations
related to 3M’s products are based on information believed to
be reliable, but the accuracy or completeness is not guaranteed.
Before using this product, you must evaluate it and determine if
it is suitable for your intended application. You assume all risks
and liability associated with such use. Any statements related to
the product which are not contained in 3M’s current publications,
or any contrary statements contained on your purchase order shall
have no force or effect unless expressly agreed upon, in writing,
by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture
for a period of 1 year from the date of purchase.
3M MAKES NO
OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at
3M’s option, to replace or repair the 3M product or refund the
purchase price of the 3M product.
Except where prohibited by
law, 3M will not be liable for any loss or damage arising from
this 3M product, whether direct, indirect, special, incidental or
consequential regardless of the legal theory asserted.
Patented U.S. and in foreign countries
3M is a trademark of 3M Company.
3
Telecom Enterprise Department
3M Telecommunications
6801 River Place Blvd.
Austin, TX 78726-9000
800-695-0447
FAX 800-626-0329
www.3MTelecommunications.com
Printed in USA.
Minimum 10%
Post-Consumer Fiber
© 3M 2003 80-6111-3196-4
