MPV580T8PJFREQ datasheet, PDF - EEWORLD Datasheet

MPV580T8PJFREQ: DescriptionPECL Output Clock Oscillator, 0.75MHz Min, 800MHz Max; CategoryPassive components oscillator; File Size246KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MPV580T8PJFREQ Overview

PECL Output Clock Oscillator, 0.75MHz Min, 800MHz Max

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	TRI-STATE FUNCTION
Maximum control voltage	5 V
Minimum control voltage	0.5 V
maximum descent time	0.55 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	25 ppm
frequency stability	50%
linearity	10%
Manufacturer's serial number	MPV5
Installation features	SURFACE MOUNT
Maximum operating frequency	800 MHz
Minimum operating frequency	0.75 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	PECL
physical size	14.22mm x 9.78mm x 4.7mm
longest rise time	0.55 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

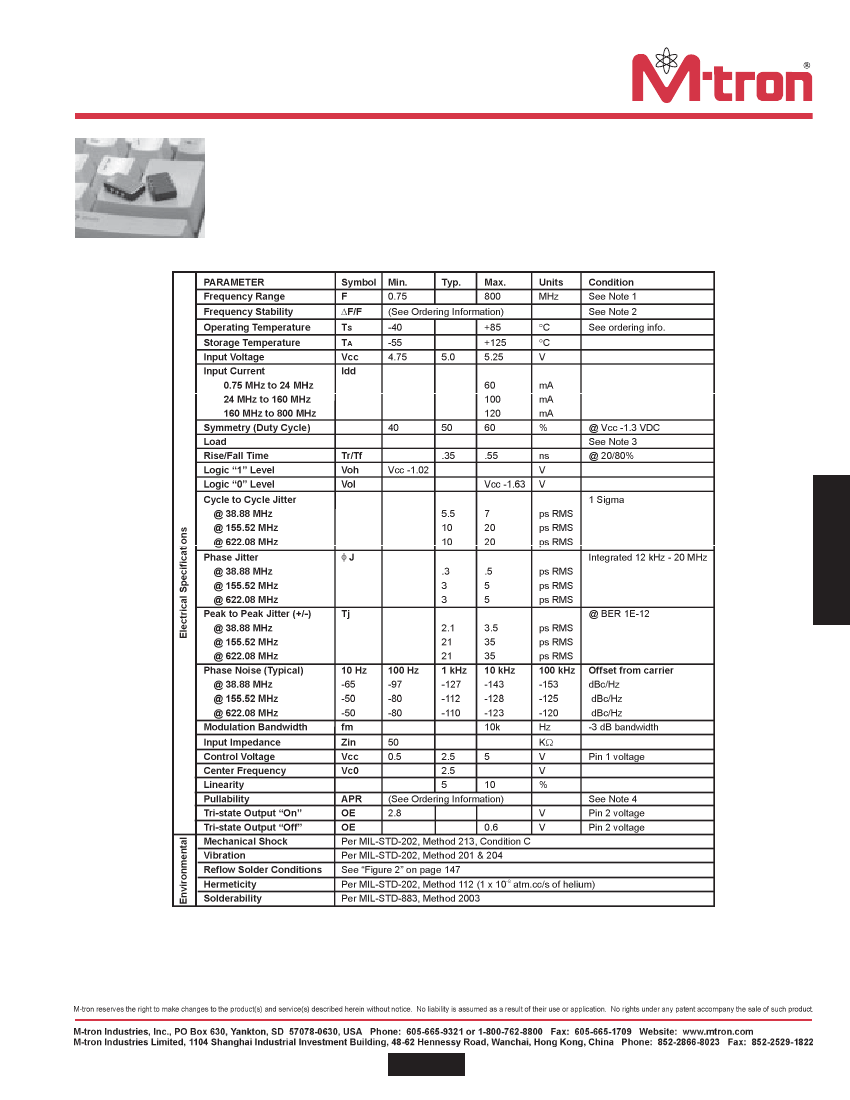

MPV5 Series

9x14 mm, 5.0 Volt, PECL, VCXO

•

LVDS and PECL Output Logic With

Good Integrated Jitter Performance

(5 ps)

•

Phase-Locked Loops (PLL’s), Clock

Recovery, Reference Signal Tracking,

Synthesizers, Frequency Modulation/

Demodulation

OBSOLETE

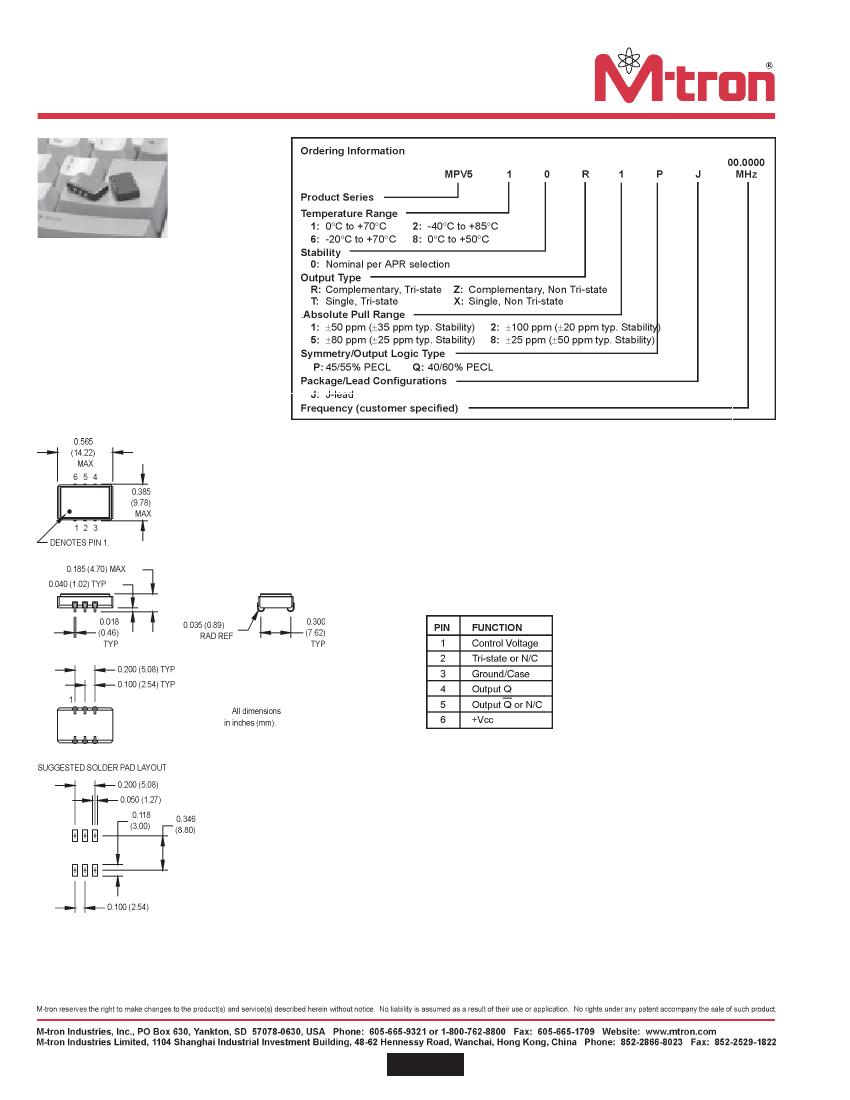

Pin Connections
