SB2P-HVQ-A: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, White Insulator, Receptacle,; CategoryThe connector The connector; File Size70KB，2 Pages; ManufacturerJST

Download Datasheet Parametric View All

SB2P-HVQ-A Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, White Insulator, Receptacle,

SB2P-HVQ-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	TOP ENTRY, 0.650 INCHES MATING
body width	0.094 inch
subject depth	0.13 inch
body length	0.197 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON CU
Contact completed and terminated	TIN/LEAD OVER COPPER
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Insulator color	WHITE
insulator material	NYLON
Manufacturer's serial number	SB
Plug contact pitch	0.098 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.197 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

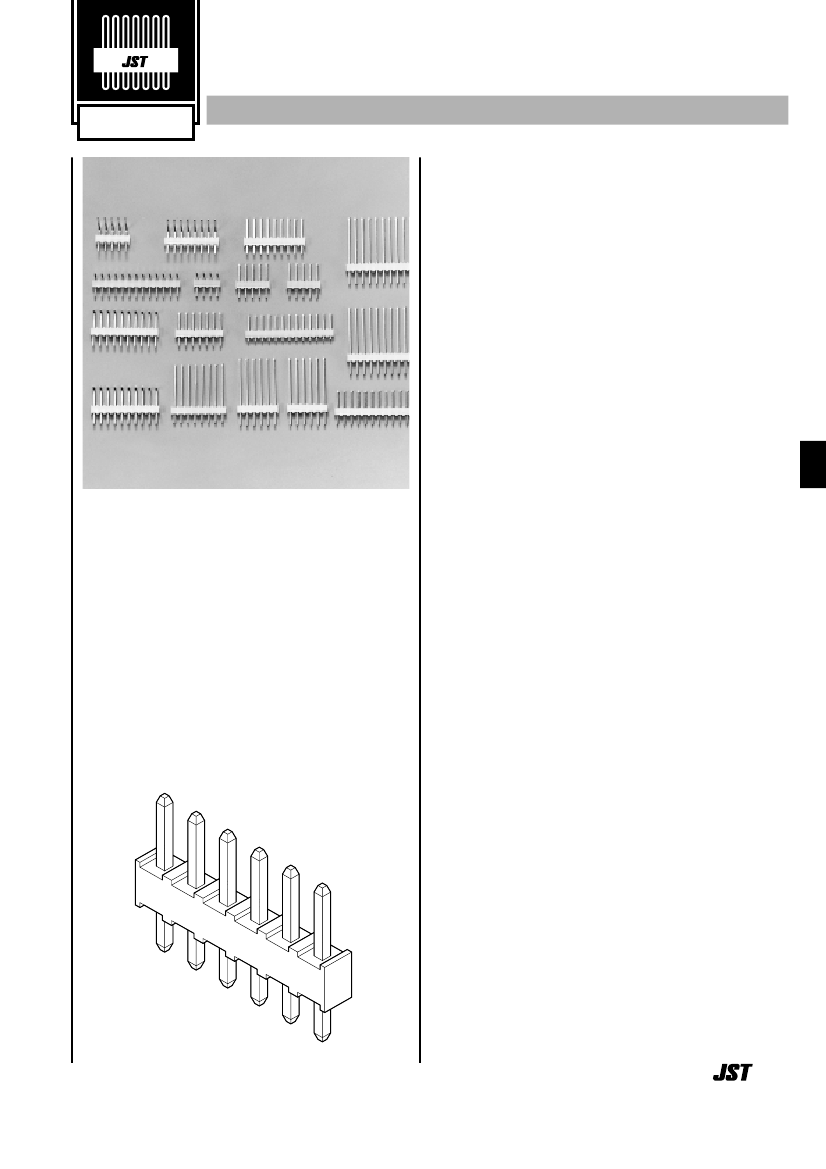

2.5SB

HEADER

2.5mm

(.098") pitch

Headers

The SB headers can be used to connect

any 2.5mm (.098") receptacles to printed

circuit boards. They can also be used to

directly connect PC boards. They come in

pitches of 2.5mm (.098") and in both top

entry and side entry type models.

2.54mm (.100") pitch SB headers are also

available. In addition, 2.0mm (.079") pitch

BC headers are available.

Specifications –––––––––––––––––––

• Current rating: 3A AC, DC

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Post: Brass, copper-undercoated

tin/lead-plated

• Wafer: Nylon 66, UL94V-0, natural (white)

• Pitch: 2.5mm(.098")

• Number of circutis: 2 to 20

Standards ––––––––––––––––––––––

Recognized E60389

Certified LR20812
