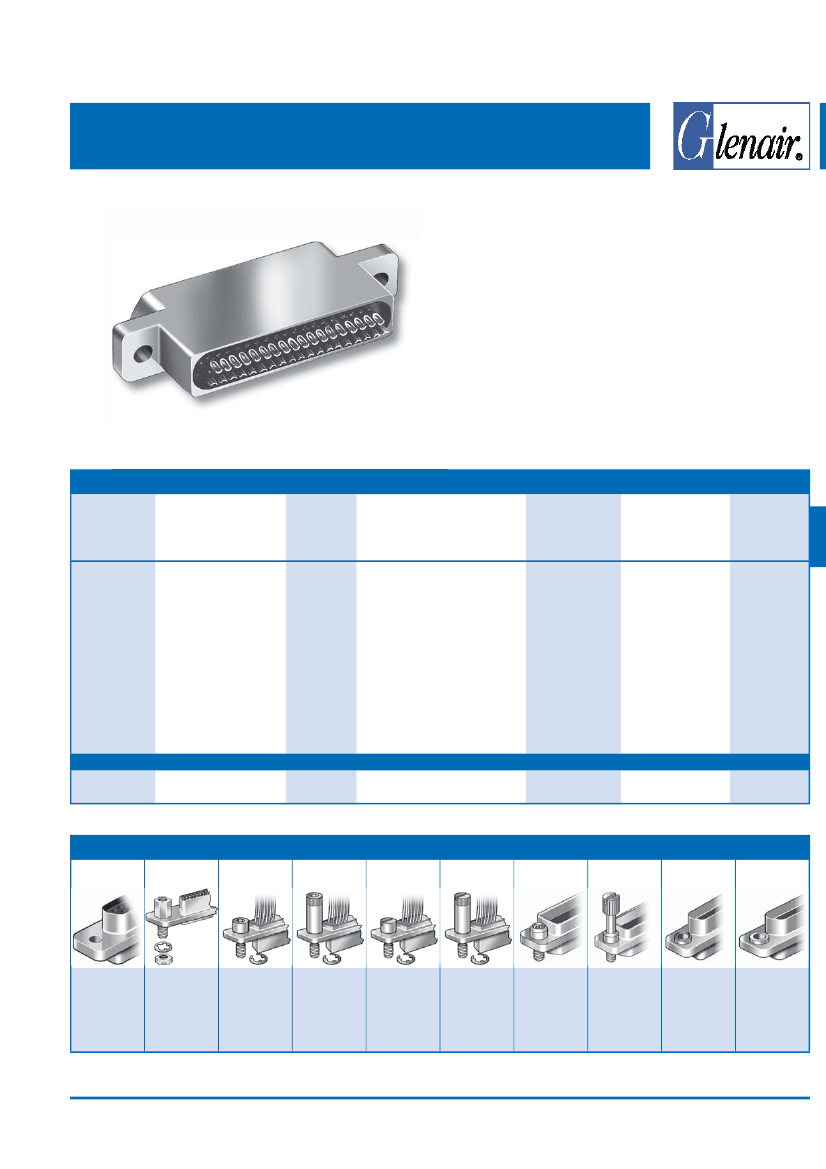

Micro-D Filter Connectors

Solder Cup

Glenair’s Filtered Solder Cup Micro-D's

provide EMI

solutions in a miniaturized M83513 type connector. These

connectors feature ceramic capacitor planar arrays and

ferrite inductors. Solder cups accept #26 thru #30 AWG

wire, or specify oversize contacts for #24 gage wire.

Choose Pi or C Filter Arrays

in seven ﬁlter classes and

six layouts. Glenair ﬁltered Micro-D connectors comply

with applicable MIL-DTL-83513 requirements and are

100% intermateable with standard connectors.

Choose 9 to 37 Contacts,

with standard cadmium or

nickel plating on the connector housing or choose

optional ﬁnishes such as gold or chem ﬁlm.

A

B

C

D

HOW TO ORDER FILTER MICRO-D CONNECTORS WITH SOLDER CUPS

Number of

Contacts

9

15

21

25

31

37

E

Hardware

B

P

M

M1

S

S1

L

K

F

R

Series

240-030

Shell Finish

Aluminum Shell

1

–

Cadmium

2

–

Nickel

Contact Type

Solder Cup Contacts for #24

AWG or Smaller Wire

Filter Type

C

–

C Filter

P

–

Pi Filter

Filter Class

A

B

C

D

E

F

G

See “Filter Classes”

on Following Page

F

4

–

Black Anodize

5

–

Gold

6

–

Chem Film

Stainless Steel Shell

3

–

Passivated

P

–

S

–

Socket

G

H

J

Sample Part Number

240-030

– 2

–

25

P

B

K

MICRO-D MOUNTING HARDWARE

B

P

M

M1

S

S1

L

K

F

R

L

M

Thru-Hole Jackpost Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Float Mount Float Mount

Order

Hardware

Separately

Removable

Includes Nut

and Washer

Hex Head

Removable

E-ring

Hex Head

Removable

E-ring

Extended

Slot Head

Removable

E-ring

Slot Head

Removable

E-ring

Extended

Hex Head

Non-

Removable

Slot Head

Non-

Removable

Extended

For Front

Panel

Mounting

For Rear

Panel

Mounting

N

P

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

F-5
