Rack & Panel
XAC Series
External Miniature Rectangular, Removable Contacts
XAC34SF2A010
XAC34PM1A000
XAC34PC1A700

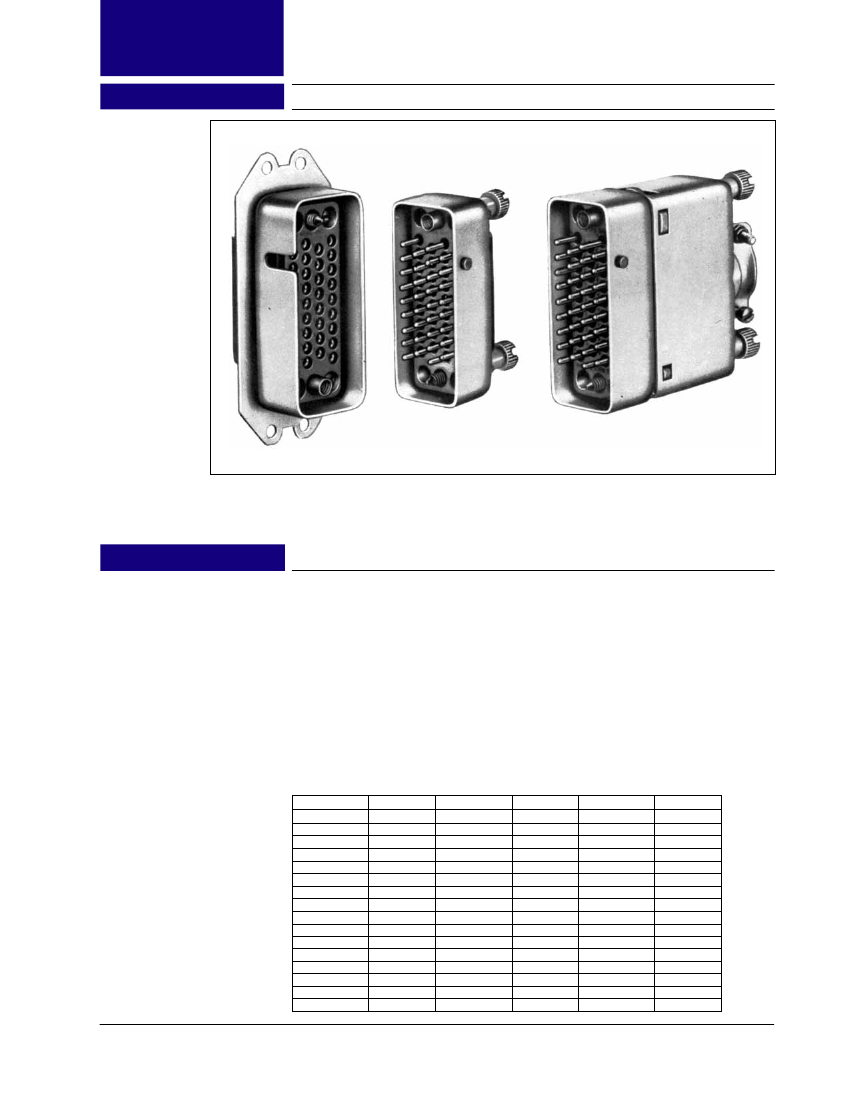

Designed for external installation, the XAC is
the MRAC removable contact connector
equipped with protective shells and mounting
plates for chassis or cable mounting on metal
containers, bulkheads, or any outside surface
equipment. Lighter and smaller than other
external connectors, they provide dependable
service under adverse conditions. Inserts are
housed in protective shells and there is screw
lock coupling of plug and receptacle.
SPECIFICATIONS
Current Rating:
Up to 13 amps
No. of
Contacts:
9, 14, 18, 20, 26, 34, 42, 50,
66, 75, 104
Contacts:
Contacts must be ordered
separately. Select from
crimp, solder, dip solder,
shielded or wire wrap
terminations.
Electrical Data:
Meets high potential
performance requirements of
MIL-C-28748. The dielectric
withstanding voltage is one
minute electrification at
2000 VAC.
Military versions are QPL’d to
M28748/3 and M28748/4.
CATALOG NO.
XAC9-0300X
XAC14-0300X
XAC20-0300X
XMRE9-0400X
XMRE14-0400X
XMRE20-0400X
XMRE26-0300X
XMRE26-0400X
XMRE34-0300X
XMRE34-0400X
XMRE42-0300X
XMRE42-0400X
XMRE50-0300X
XMRE50-0400X
XMRE75-0300XP
XMRE75-0300XS
MS 18192-T8
MS 18192-T1
MS 18192-T2
MS 18192-S8
MS 18192-S1
MS 18192-S2
MS18192-T9
MS 18192-S9
MS18192-T3
MS 18192-S3
MS 18192-T4
MS 18192-S4
MS18192-T5
MS 18192-S5
MS 18192-T6
MS 18192-TXX
Dielectric:
Polarization:
Accessories:
Diallyl Phthalate, MIL-M-14,
Type SDG-F, Color Gray
Seven positions available for
pin and slot polarization on
shells. Additional polariza-
tion can be provided with
various arrangements of
jackscrews and guides.
Shells, formed and drawn
hoods, mounting plates,
jackscrews and jacksockets.
CATALOG NO.
XMRE75-0400XS
XMRE75-0400XP
XMRA66-0700
XMRA66-0800
XMRA 104-0700
XMRA 104-0800
XJTCMS605P
XJTCMS605S
XJTCMS608P
XJTCMS608S
XJTMS605P
XJTMS605S
XJTMS606P
XJTMS606S
XJMS602P
XJMS602S
MS 18192SXX
MS 18192-S6
MS 18193-T1
MS 18193-S1
MS 18193-T2
MS 18193-S2
MS 18194-1
MS 18194-2
MS 18194-3
MS 18194-4
MS 18195-1
MS 18195-2
MS 18195-3
MS 18195-4
MS 18196-1
MS 18196-2
CATALOG NO.
XJMS603P
XJMS603S
XNMS700P
XNMS700S
XNMS702P
XNMS702-S
XMRA 14-0010
XMRA 20-0010
XMRA 34-0010
XMRA42-0010
XMRA50-0010
XMRA75-0010
XMRA66-0010
XMRA104-0010
MS 18196-3
MS 18196-4
MS 18197-1
MS 18197-2
MS 18197-3
MS 18197-4
MS 18198-1
MS 18198-2
MS 18199-1
MS 18199-2
MS 18199-3
MS 18199-4
MS 18200-1
MS 18200-2
Winchester/Retconn
62 Barnes Industrial Road North, Wallingford, Connecticut 06492 Phone:(203)741-5400 Fax:(203)741-5500 www.winchesterelectronics.com
RP /
11
Rack & Panel
XAC Series

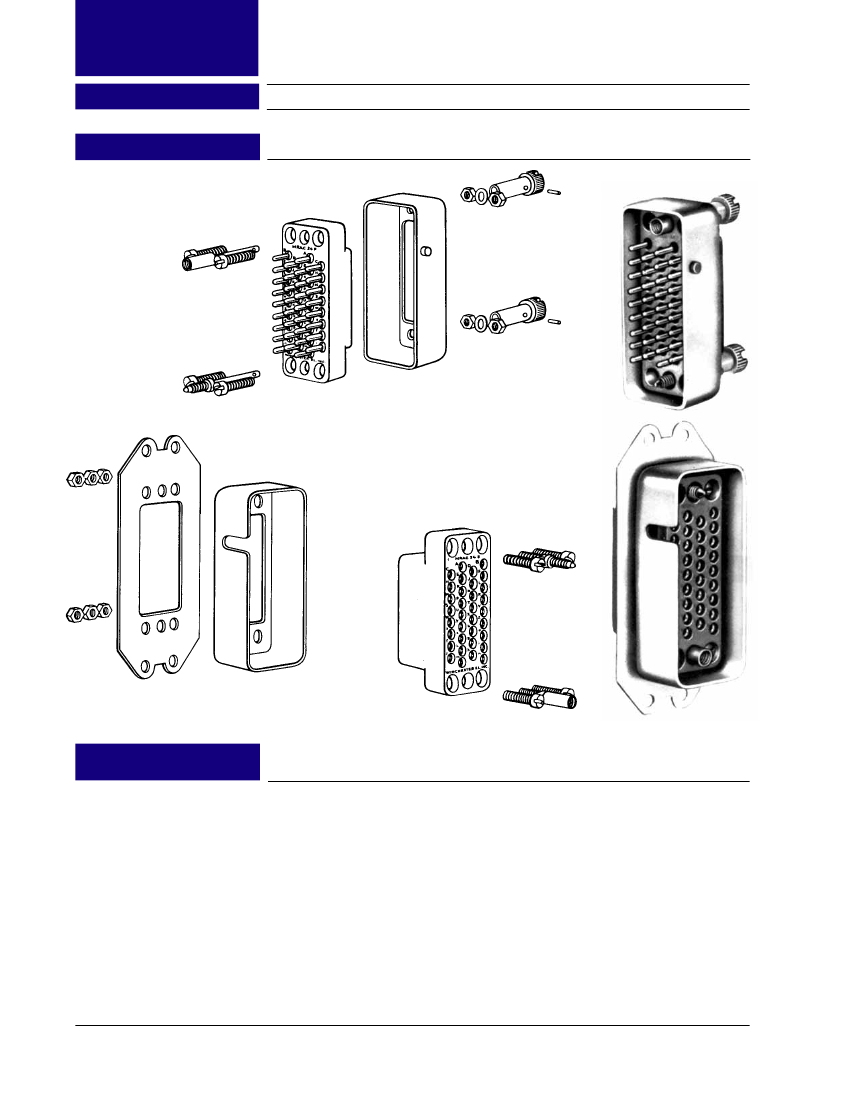

CONNECTOR ASSEMBLIES
External Miniature Rectangular, Removable Contacts
Self-locking
pins
Turnable
Jacksocket
Plug Shell
Male Insert
Turnable
Jackscrew
Jackscrew
and
Jacksocket
Knobs
Fixed
Jackscrew
Mounting Plate
Receptacle Shell
Female Insert
Fixed
Jacksocket
Receptacle
DEFINITIONS OF
CONNECTOR TERMS
Plug:
The complete connector half which
has the plug shell as part of its assembly.
Receptacle:
The complete connector half
which has the receptacle shell as part of its
assembly.
Shell:
The metal housing in which a male or
female insert is assembled. A shell is either a
plug shell or a receptacle shell:
Plug Shell - one which is designed to be
inserted into a receptacle shell.
Receptacle Shell - one which is designed
to receive and enclose the plug shell upon
engagement.
Male Insert:
The molded insulator body
containing pin contacts.
Female Insert:
The molded insulator body
containing socket contacts.
Pin Contacts:
Male Contacts that fit into the
socket contacts.
Socket Contacts:
Female Contacts tubular
in shape, which receive the pin contacts and
retain them by spring tension.
Polarization:
A means of controlling the
engagement of a plug and receptacle so that
correct mating of the contacts is achieved.
Accessories:
Those components such as
hoods and mounting plates which are
attachable to a plug or receptacle to facilitate
mounting and/or handling of the connector,
and to prevent inadvertent cross-mating.
Winchester/Retconn
62 Barnes Industrial Road North, Wallingford, Connecticut 06492 Phone:(203)741-5400 Fax:(203)741-5500 www.winchesterelectronics.com
RP /
12
Rack & Panel
XAC Series

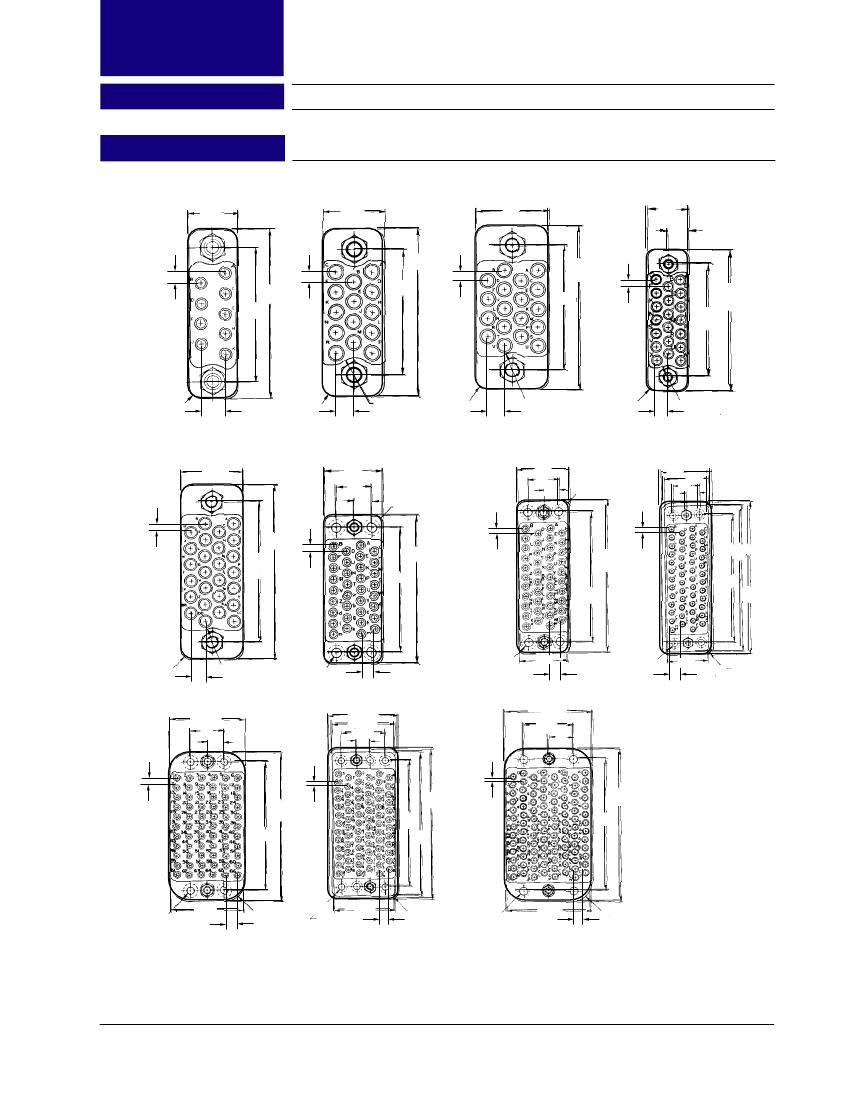

CONTACT ARRANGEMENTS
Dimensions are for reference only and are subject to change. Outline drawings on request.
Views are rear (wiring end) of female inserts. (Male inserts are opposite.)
.38
.075
Typ
.075
Typ
External Miniature Rectangular, Removable Contacts
.44
.075
Typ
.56
.44
.22
.075
Typ
1.250
.937
1.313
1.000
1.250
1.563
1.313
1.000
.09R
.172 Typ
.09R
.13R
.130 Typ
.09R
.13R
.130 Typ
.09R
.13R
.130 Typ
XAC 9
XAC 14
XAC 18
XAC 20
.56
.075
Typ
.075
Typ
.75
.47
.075
Typ
.75
.47
.23
.88
.09R
.075
Typ
.75
.47
.23
.23
.09R
.23
1.625
2.000
2.594
1.312
1.688
2.313
2.282
2.000
2.719
.09R
.13R
.130 Typ
Mounting
Holes For
No. 4
Machine
Screws
Mounting
Holes For
No. 4
Machine
Screws
.180 Typ
.73
.180 Typ
Mounting
Holes For
No. 4
Machine
Screws
.73
.16R
.180 Typ
XAC 26
1.125
.50
.25
.075
Typ
XAC 34*
1.234
1.109
.77
.23
XAC 42
1.531
.88
.075
Typ
XAC 50*
.150
Typ
.44
2.719
2.750
2.375
2.281
2.282
1.969
2.594
Mounting
Holes For
No. 4
Machine
Screws
1.109
.31R
.180 Typ
Mounting
Holes For
No. 4
Machine
Screws
1.094
.16R
.180 Typ
Mounting
Holes For
No. 6
Machine
Screws
1.469
.38R
.180 Typ
XAC 66
XAC 75
XAC 104*
Winchester/Retconn
*For numerical contact identification instead of alphabetical, order XNAC**P or S available in
sizes 34, 50, and 104.
Sizes 66 and 75 have numerical contact identification as standard.
The spacing, arrangement, and identificaion of contacts of the XAC inserts are the same as those
found on the Series MRAC removable contact connectors for the same number of contacts.
62 Barnes Industrial Road North, Wallingford, Connecticut 06492 Phone:(203)741-5400 Fax:(203)741-5500 www.winchesterelectronics.com
RP /
13
Rack & Panel
XAC Series

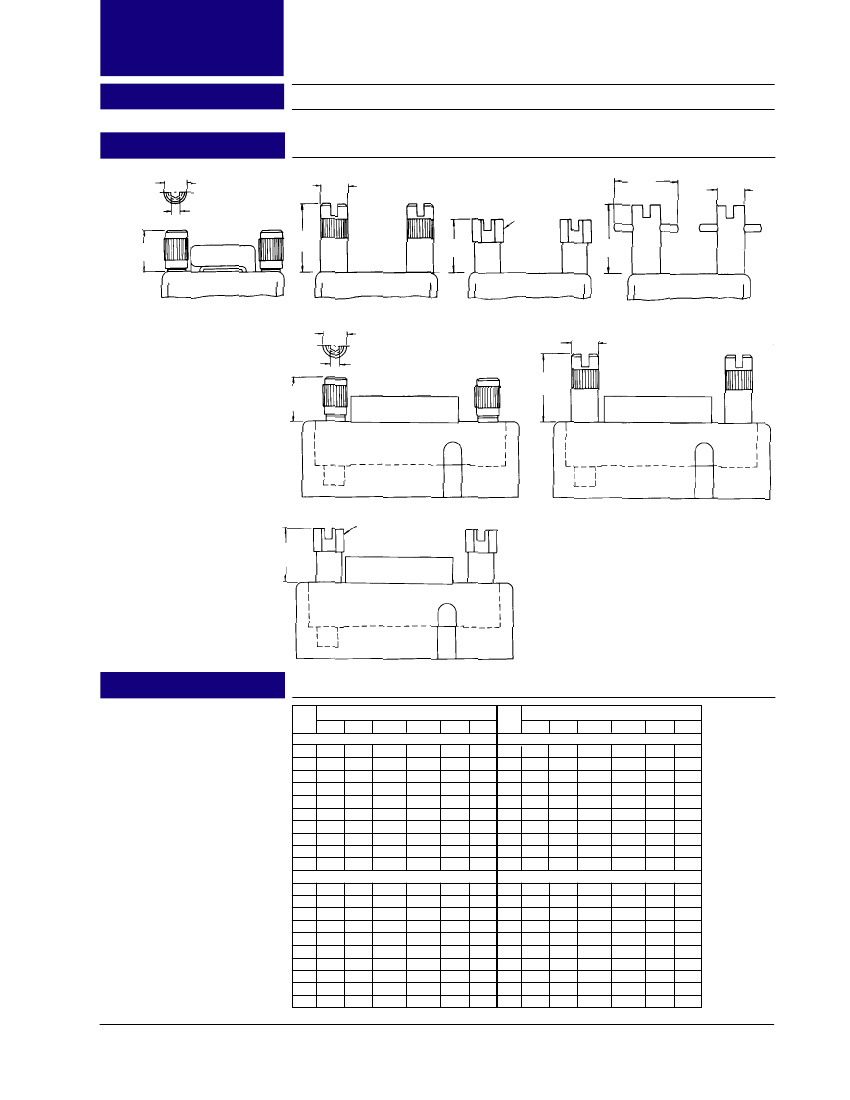

JACKSCREW & JACKSOCKETS
Dimensions are for reference only and
are subject to change. Outline drawings
on request.
Views are rear (wiring end)
of female inserts. (Male
inserts are opposite.)
External Miniature Rectangular, Removable Contacts
.73
Fixed Jackscrews (F)
Long Turning Jackscrews (C)
Used With Hoods
Short Turning Jackscrews (M)
Used Only Without Hoods
Monojacks (D)
Used With Hoods
SPECIFICATIONS
Turnable jackscrew-jacksocket combination (M,
C, or D) assembles on either Plug or Recep-
tacle; the mating connector-half (either
Receptacle or Plug) must then contain fixed
jackscrew-jacksocket combination (F).
Both short and long turning jackscrews (M and C)
have knurled and slotted knobs for locking by
hand or screwdriver. Knob is assembled on shaft
with hollow, removable, self-locking pin. Safety
wiring of engaged halves is achieved by using
the through-hole in self-locking pin in the knob.
Monojacks (D) are long turning one-peice
locking devices with slotted and knurled head.
Shaft has through-hole for safety wire.
available with hoods only, in sizes 34, 42, 50,
66, 75, and 104.
Drawings show extension of standard knobs
beyond shell and beyond hood.
APPLICATIONS
Jackscrew locking device assures positive
coupling of engaged connectors to prevent
accidental disconnecting from vibration or
physical shock. It also aids easy connection
and separation of connector plug and
LOCKING DEVICE
receptacle. Mounted connector-half houses
one non-turnable fixed jackscrew and
jacksocket to insure connector polarization.
Mating-half houses one of the three types of
turning jackscrew and jacksocket (M, C, or D).
Note 1: Weights are for pairs; i.e. for a
jackscrew and jacksocket, etc., so
weight figure may be added once to
weights of other accessories when
computing total weight of plug or
receptacle.
Note 2: Weights of turnable jack-
screws and turnable jacksockets
include knob and rollpins, except
mono-jackscrew and mono-jacksocket,
which is a one-piece construction (shaft
and knob made in one piece); weight of
fixed jackscrew and jacksocket
includes nuts.
SPECIFICATIONS
WT. OZ.
CODE See Notes MATERIAL AND
LETTER
1&2
FINISH
F
M
C
D
—
0.15
0.30
0.45
1.07
—
Nickel Plated Brass
Stainless Steel with
Passivating Dip
Stainless Steel with
Passivating Dip
Nickel Plated Brass
Aluminum Anodized
Jackscrew
Fixed
Jacksocket
}
Jackscrew
Short
Jacksocket
}
Turnable
Jackscrew
Long
Jacksocket
}
Turnable
Mono-Jackscrew
Long Turnable
Mono-Jacksocket
Knob Standard
DIMENSIONS
Standard Knobs - Extension
Beyond Hood
XAC
0300
0400
0700
0800
Dimension A
Dimension B
9* 14* 18* 20* 26 34 42 50 66 75 104 34 42 50 66 75 104
.55
.55
–
–
.55
.55
–
–
.55
.55
–
–
.55
.55
–
–
.77
.55
–
–
.58
.58
.58
.58
.53
.53
–
–
.53
.53
–
–
–
–
.64
.64
.52
.52
–
–
– .59 .55 .55 –
– .59 .55 .55 –
.52 – – – .38
.52 – – – .38
.53
.53
–
–
–
–
.38
.38
*On sizes 9, 14, 18, and 20, only large top opening hoods are available when (c) long turning jackscrews are used.
Catalog Number for large top opening hoods is - 0300X. Example: XAC20-0300X
Winchester/Retconn
62 Barnes Industrial Road North, Wallingford, Connecticut 06492 Phone:(203)741-5400 Fax:(203)741-5500 www.winchesterelectronics.com
RP /
14
Rack & Panel
XAC Series
OUTLINE - JACKSCREWS
.19 Dia.
.078 INT. HEX.
A
A
A
.22
Dia.
.25
HEX.
A
.50
.22
Dia.
External Miniature Rectangular, Removable Contacts
CW
.19
Dia.
CU
CX
.22
Dia.
CZ
.97
.33
Dimensions are for reference only and
are subject to change. Outline drawings
on request.
MW
.25 HEX.
MU
6-32 UNC 2 THD. (TYP.)
.73
.23
MX
FZ
DIMENSIONS
All jackscrews and sockets are stainless
steel, passivated (except F & D which
are nickel plated brass). All knobs are
aluminum, anodized except MW and CW
which are stainless steel, passivated.
Size
9
14
18
20
26
34
42
50
66
75
9
14
18
20
26
34
42
50
66
75
Hoods
Hoods
Size
0300 0400 0300X 0400X 0700 0800
0300 0400 0300X 0400X 0700 0800
Dimension A – Type CW
.36
.36
.36
–
.36
.36
.36
–
.36
.36
.36
–
.36
.36
.36
–
.36
.36
.36
–
.39
.39
.39
.47
.34
.34
.34
–
.34
.34
.34
–
–
–
–
.47
.33
.33
.33
–
Dimension A – Type CU
–
.61
.61
.61
–
–
.61
.61
.61
–
–
.61
.61
.61
–
–
.61
.61
.61
–
.61 .61
.61
.61
–
.64 .64
.64
.64
.72
.59 .59
.59
.59
–
.59 .59
.59
.59
–
–
–
–
–
.72
.58 .58
.58
.58
–
–
–
–
–
.36
.39
.34
.34
–
.33
–
–
–
–
–
.47
–
–
.47
–
–
–
–
–
–
.72
–
–
.72
–
9
14
18
20
26
34
42
50
66
75
9
14
18
20
26
34
42
50
66
75
–
–
–
–
.77
.52
.47
.47
–
.45
–
–
–
–
.92
.64
.59
.59
–
.58
Dimension A – Type CX
.48
.48
.48
–
.48
.48
.48
–
.48
.48
.48
–
.48
.48
.48
–
.48
.48
.48
–
.52
.52
.52
.61
.47
.47
.47
–
.47
.47
.47
–
–
–
–
.61
.45
.45
.45
–
Dimension A – Type CZ
.61
.61
.61
–
.61
.61
.61
–
.61
.61
.61
–
.61
.61
.61
–
.61
.61
.61
–
.64
.64
.64
.72
.59
.59
.59
–
.59
.59
.59
–
–
–
–
.72
.58
.58
.58
–
–
–
–
–
–
.61
–
–
.61
–
–
–
–
–
–
.72
–
–
.72
–
Winchester/Retconn
62 Barnes Industrial Road North, Wallingford, Connecticut 06492 Phone:(203)741-5400 Fax:(203)741-5500 www.winchesterelectronics.com
RP /
15
京公网安备 11010802033920号
EEWORLD
