F2H-42DRT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> F2H-42DRT

F2H-42DRT: DescriptionBoard Connector, 42 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Receptacle; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

F2H-42DRT Overview

Board Connector, 42 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking Mech, Black Insulator, Receptacle

F2H-42DRT Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LATCHED
body width	0.326 inch
subject depth	0.454 inch
body length	1.745 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	F2H
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	150u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.103 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	42
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

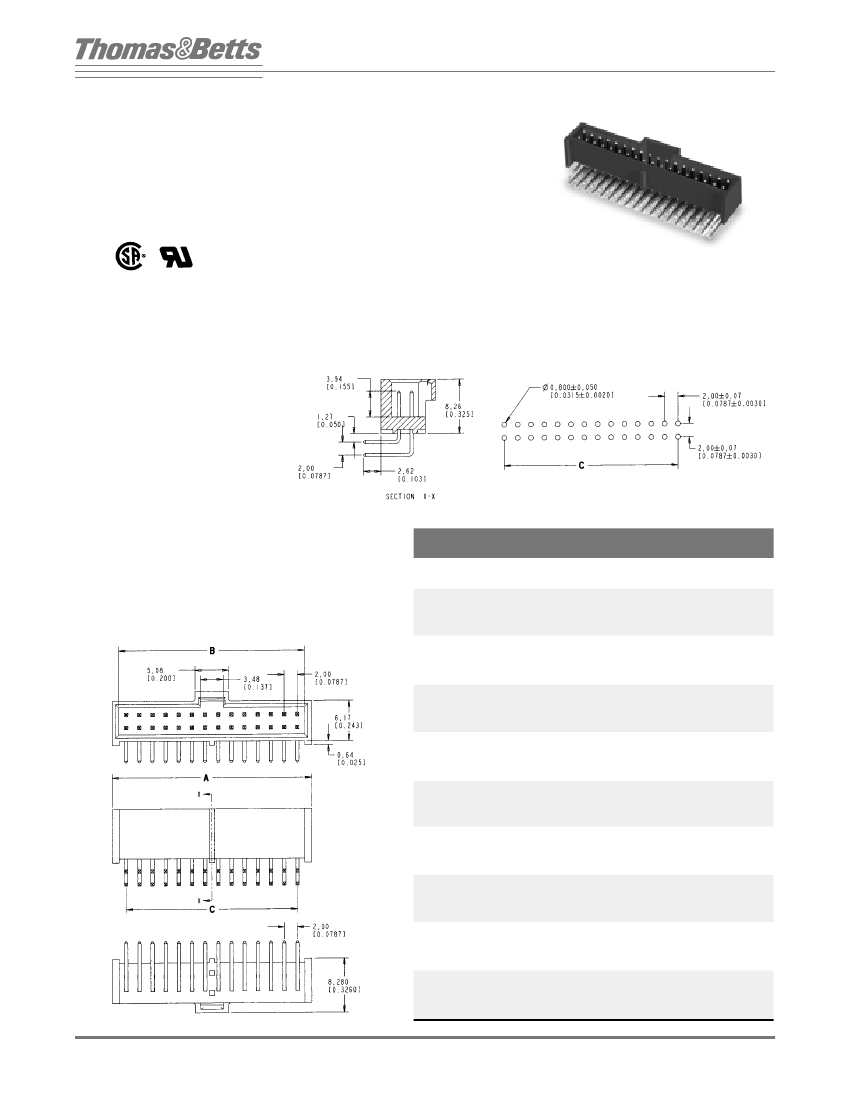

Flexible Interconnections

Flexpac

FLEXPAC

LOCKING HEADER

DOUBLE ROW

RIGHT ANGLE CONTACTS

(.079") x 2

(.079")

CENTER SPACING

LR49571

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass reinforced

thermoplastic rated 94V-0

OLOR

Black

ONTACT

ATERIAL

Copper alloy

ONTACT

LATING

.000150 tin/lead alloy over

.000050 nickel all over

LECTRICAL

ROPERTIES

URRENT

ATING

2.5 amps

NSULATION

ESISTANCE

>1 x 10

0hms @ 500 VDC

DWV:

> 500 VRMS at sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

Processing: 2 min. @ 250˚ C max.

Operating: -55˚ to 105˚ C

ATING

ONNECTOR

See page 186

Ordering Information

GOLD CONTACT

PLATING

TIN CONTACT

PLATING

NO. OF

POS.

*10

*12

*14

10.31 (.406)

12.32 (.485)

14.33 (.564)

16.31 (.642)

18.31 (.721)

20.32 (.800)

22.30 (.878)

24.30 (.957)

26.31 (1.036)

28.32 (1.115)

30.33 (1.194)

32.33 (1.273)

34.34 (1.352)

36.32 (1.430)

38.33 (1.509)

40.34 (1.588)

42.32 (1.666)

44.32 (1.745)

46.33 (1.824)

48.31 (1.902)

50.32 (1.981)

52.30 (2.059)

54.33 (2.139)

56.31 (2.217)

58.32 (2.296)

60.33 (2.375)

62.31 (2.453)

64.31 (2.532)

66.32 (2.611)

DIMENSIONS

8.19 (.322)

10.19 (.401)

12.19 (.480)

14.19 (.558)

16.19 (.637)

18.19 (.716)

20.19 (.795)

22.19 (.873)

24.19 (.952)

26.19 (1.031)

28.19 (1.110)

30.19 (1.189)

32.19 (1.268)

34.19 (1.346)

36.19 (1.425)

38.19 (1.504)

40.19 (1.582)

42.19 (1.661)

44.19 (1.740)

46.19 (1.818)

48.19 (1.897)

50.19 (1.975)

52.19 (2.055)

54.19 (2.133)

56.19 (2.212)

58.19 (2.291)

60.19 (2.369)

62.19 (2.448)

64.19 (2.527)

6.00 (.236)

8.00 (.315)

10.00 (.394)

12.00 (.472)

14.00 (.551)

16.00 (.630)

18.00 (.709)

20.00 (.787)

22.00 (.866)

24.00 (.945)

26.00 (1.024)

28.00 (1.102)

30.00 (1.181)

32.00 (1.260)

34.00 (1.339)

36.00 (1.417)

38.00 (1.496)

40.00 (1.575)

42.00 (1.654)

44.00 (1.732)

46.00 (1.811)

48.00 (1.890)

50.00 (1.969)

52.00 (2.047)

54.00 (2.126)

56.00 (2.205)

58.00 (2.283)

60.00 (2.362)

62.00 (2.441)

F2H-08DRG F2H-08DRT

F2H-10DRG F2H-10DRT

F2H-12DRG F2H-12DRT

F2H-14DRG F2H-14DRT

F2H-16DRG F2H-16DRT

F2H-18DRG F2H-18DRT

F2H-20DRG F2H-20DRT

F2H-22DRG F2H-22DRT

F2H-24DRG F2H-24DRT

F2H-26DRG F2H-26DRT

F2H-28DRG F2H-28DRT

F2H-30DRG F2H-30DRT

F2H-32DRG F2H-32DRT

F2H-34DRG F2H-34DRT

F2H-36DRG F2H-36DRT

F2H-38DRG F2H-38DRT

F2H-40DRG F2H-40DRT

F2H-42DRG F2H-42DRT

F2H-44DRG F2H-44DRT

F2H-46DRG F2H-46DRT

F2H-48DRG F2H-48DRT

F2H-50DRG F2H-50DRT

F2H-52DRG F2H-52DRT

F2H-54DRG F2H-54DRT

F2H-56DRG F2H-56DRT

F2H-58DRG F2H-58DRT

F2H-60DRG F2H-60DRT

F2H-62DRG F2H-62DRT

F2H-64DRG F2H-64DRT

*NOTE: Latches not available on 8– 14 positions;

positions 16 – 64 are with latches.

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).
