IDT74ALVCH16344PF8 datasheet, PDF

Datasheet> All Categories > logic> logic> IDT74ALVCH16344PF8

IDT74ALVCH16344PF8: DescriptionBus Driver, ALVC/VCX/A Series, 4-Func, 2-Bit, True Output, CMOS, PDSO56, 0.0157 INCH PITCH, TVSOP-56; Categorylogic logic; File Size81KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74ALVCH16344PF8 Overview

Bus Driver, ALVC/VCX/A Series, 4-Func, 2-Bit, True Output, CMOS, PDSO56, 0.0157 INCH PITCH, TVSOP-56

IDT74ALVCH16344PF8 Parametric

Parameter Name	Attribute value
Parts packaging code	SSOP
package instruction	TSSOP,
Contacts	56
Reach Compliance Code	unknown
series	ALVC/VCX/A
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
length	11.3 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	2
Number of functions	4
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	4.6 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.4 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

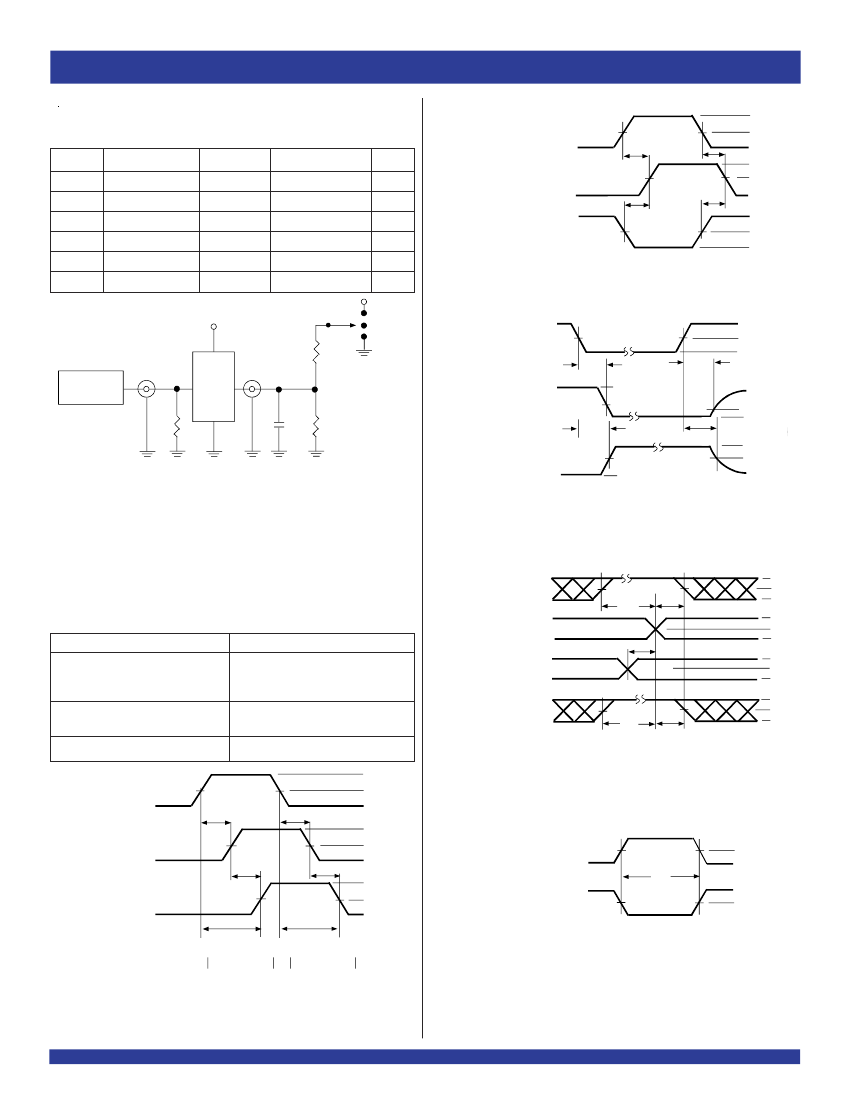

Preview

Download Datasheet

View All

IDT74ALVCH16344

3.3V CMOS 1-BIT TO 4-BIT ADDRESS DRIVER WITH 3-STATE OUTPUTS

INDUSTRIAL TEMPERATURE RANGE

3.3V CMOS 1-BIT TO 4-BIT

ADDRESS DRIVER WITH

3-STATE OUTPUTS

AND BUS-HOLD

• 0.5 MICRON CMOS Technology

• Typical t

SK(o)

(Output Skew) < 250ps

• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using

machine model (C = 200pF, R = 0)

• V

= 3.3V ± 0.3V, Normal Range

• V

= 2.7V to 3.6V, Extended Range

• V

= 2.5V ± 0.2V

• CMOS power levels (0.4µ W typ. static)

• Rail-to-Rail output swing for increased noise margin

• Available in SSOP, TSSOP, and TVSOP packages

IDT74ALVCH16344

FEATURES:

DESCRIPTION:

DRIVE FEATURES:

• High Output Drivers: ±24mA

• Suitable for heavy loads

FUNCTIONAL BLOCK DIAGRAM

FO E

C N

R O

N M T

EW M

ES DE

IG D

APPLICATIONS:

• 3.3V high speed systems

• 3.3V and lower voltage computing systems

This 1-bit to 4-bit address driver is built using advanced dual metal CMOS

technology. The ALVCH16344 device is used in applications in which four

separate memory locations must be addressed by a single address.

The ALVCH16344 has been designed with a ±24mA output driver. This

driver is capable of driving a moderate to heavy load while maintaining speed

performance.

The ALVCH16344 has “bus-hold” which retains the inputs’ last state

whenever the input goes to a high impedance. This prevents floating inputs and

eliminates the need for pull-up/down resistors.

The IDT logo is a registered trademark of Integrated Device Technology, Inc.

INDUSTRIAL TEMPERATURE RANGE

APRIL 1999

DSC-4696/1

IDT74ALVCH16344PF8 Related Products

	IDT74ALVCH16344PF8	IDT74ALVCH16344PA8	IDT74ALVCH16344PV8
Description	Bus Driver, ALVC/VCX/A Series, 4-Func, 2-Bit, True Output, CMOS, PDSO56, 0.0157 INCH PITCH, TVSOP-56	Bus Driver, ALVC/VCX/A Series, 4-Func, 2-Bit, True Output, CMOS, PDSO56, 0.0196 INCH PITCH, TSSOP-56	Bus Driver, ALVC/VCX/A Series, 4-Func, 2-Bit, True Output, CMOS, PDSO56, 0.025 INCH PITCH, SSOP-56
Parts packaging code	SSOP	TSSOP	SSOP
package instruction	TSSOP,	TSSOP,	SSOP,
Contacts	56	56	56
Reach Compliance Code	unknown	unknown	unknown
series	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e0	e0	e0
length	11.3 mm	14 mm	18.415 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	2	2	2
Number of functions	4	4	4
Number of ports	2	2	2
Number of terminals	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	4.6 ns	4.6 ns	4.6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.1 mm	2.794 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.4 mm	0.5 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL
width	4.4 mm	6.1 mm	7.5 mm
Base Number Matches	1	1	-
