MS80002-003-000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS80002-003-000

Preview

MS80002-003-000: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MS80002-003-000 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Receptacle

MS80002-003-000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	NONE
body width	0.177 inch
body length	0.311 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	MS80002
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	115 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	UL,VDE
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

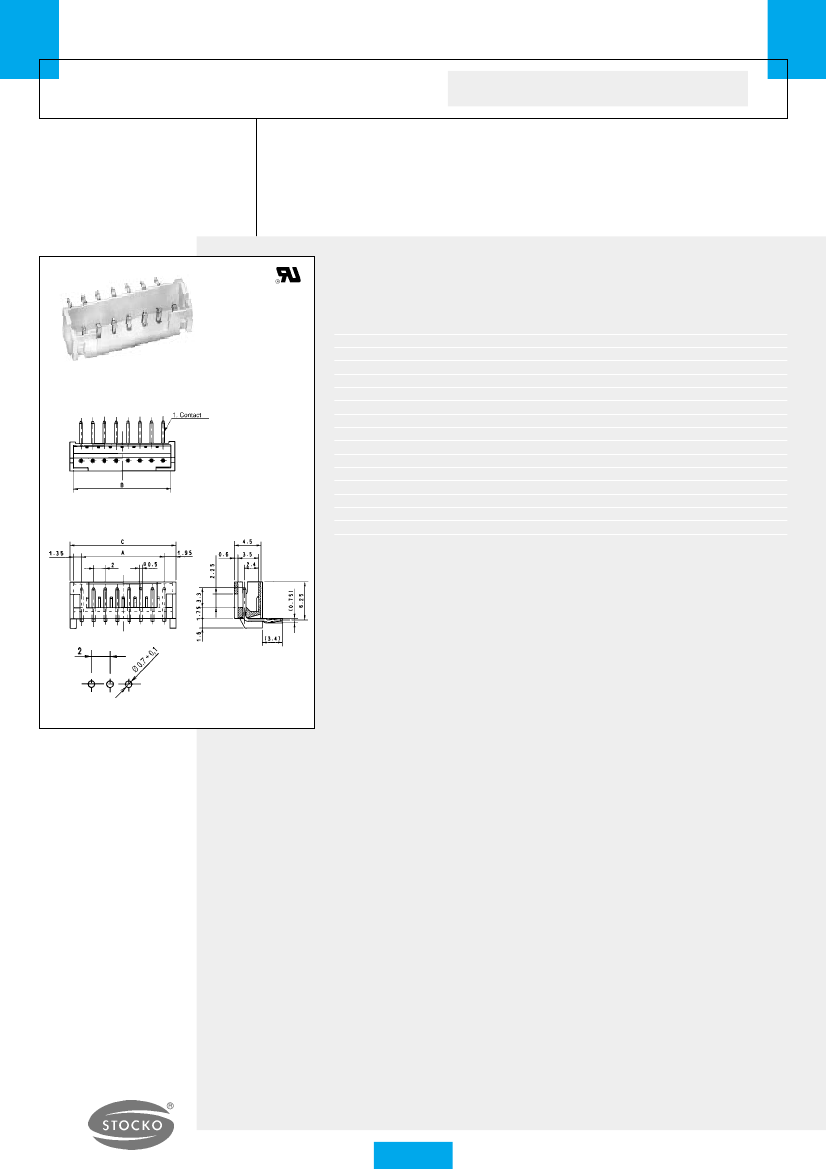

Serie / Series

S tiftwannen, liegend

horizontal

Pin connectors for horiz ontal connections

MS 80002

Serie MS 80002, liegend, für Leiterplattendicke 0,8 - 1,6 mm, Lötstifte In-line

Series MS 80002, horizontal, for PC board thickness 0.8 - 1.6 mm, solder pins in line

Polzahl

Positions

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

Artikel-Nummer

Part number

MS

80002 - 002 - 000

80002 - 003 - 000

80002 - 004 - 000

80002 - 005 - 000

80002 - 006 - 000

80002 - 007 - 000

80002 - 008 - 000

80002 - 009 - 000

80002 - 010 - 000

80002 - 011 - 000

80002 - 012 - 000

80002 - 013 - 000

80002 - 014 - 000

80002 - 015 - 000

80002 - 016 - 000

Abmessungen A

Dimensions A

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

Abmessungen B

Dimensions B

4,6

6,6

8,6

10,6

12,6

14,6

16,6

18,6

20,6

22,6

24,6

26,6

28,6

30,6

32,6

Abmessungen C

Dimensions C

5,9

7,9

9,9

11,9

13,9

15,9

17,9

19,9

21,9

23,9

25,9

27,9

29,9

31,9

33,9

16
