IDT74ALVCH373Q8 datasheet, PDF

Datasheet> All Categories > logic> logic> IDT74ALVCH373Q8

IDT74ALVCH373Q8: DescriptionBus Driver, ALVC/VCX/A Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.635 MM PITCH, QSOP-20; Categorylogic logic; File Size62KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74ALVCH373Q8 Overview

Bus Driver, ALVC/VCX/A Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.635 MM PITCH, QSOP-20

IDT74ALVCH373Q8 Parametric

Parameter Name	Attribute value
Parts packaging code	QSOP
package instruction	SSOP,
Contacts	20
Reach Compliance Code	unknown
series	ALVC/VCX/A
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	8.6868 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	7.7 ns
Certification status	Not Qualified
Maximum seat height	1.7272 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	3.937 mm
Base Number Matches	1

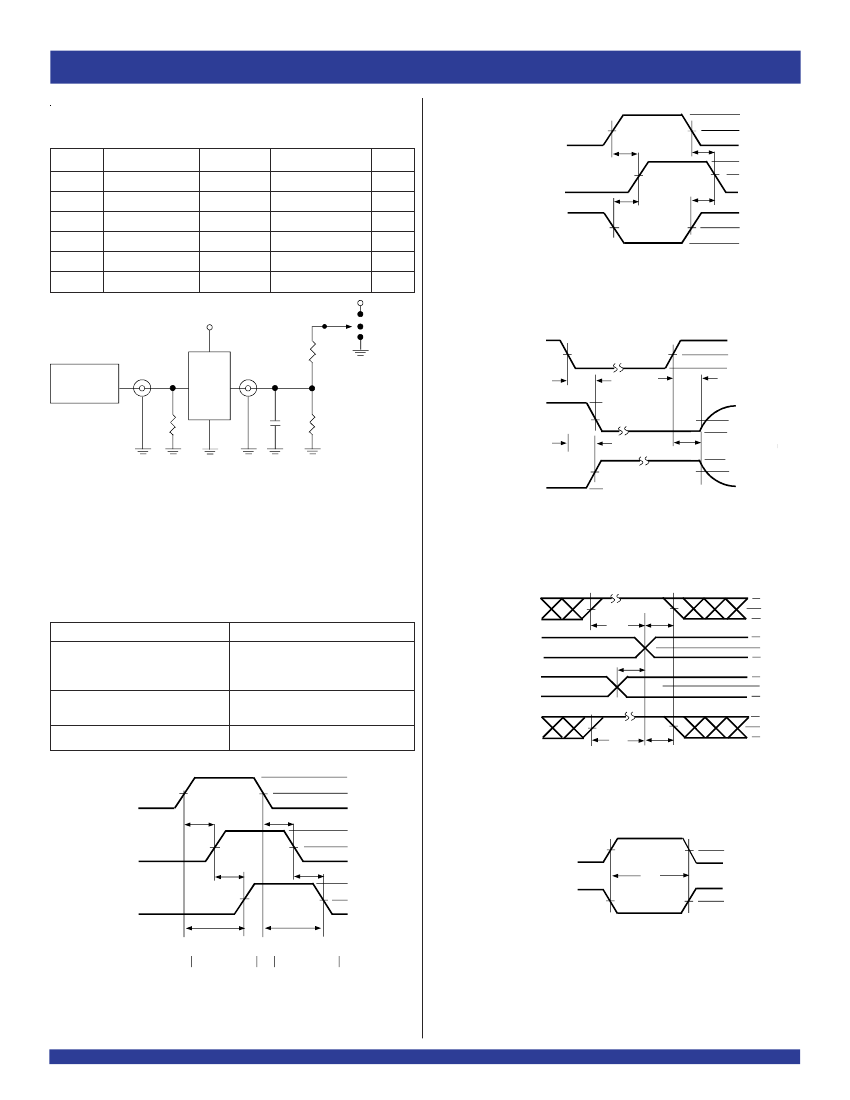

Preview

Download Datasheet

View All

IDT74ALVCH373

3.3V CMOS OCTAL TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS

INDUSTRIAL TEMPERATURE RANGE

3.3V CMOS OCTAL

TRANSPARENT D-TYPE

LATCH WITH 3-STATE

OUTPUTS AND BUS-HOLD

• 0.5 MICRON CMOS Technology

• Typical t

SK(o)

(Output Skew) < 250ps

• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using

machine model (C = 200pF, R = 0)

• V

= 3.3V ± 0.3V, Normal Range

• V

= 2.7V to 3.6V, Extended Range

• V

= 2.5V ± 0.2V

• CMOS power levels (0.4µ W typ. static)

• Rail-to-Rail output swing for increased noise margin

• Available in QSOP, SOIC, SSOP, and TSSOP packages

IDT74ALVCH373

FEATURES:

DESCRIPTION:

DRIVE FEATURES:

• High Output Drivers: ±24mA

• Suitable for Heavy Loads

APPLICATIONS:

This octal transparent D-type latch is built using advanced dual metal

CMOS technology. The ALVCH373 device is particularly suitable for

implementing buffer registers, I/O ports, bidirectional bus drivers, and

working registers. While the latch-enable (LE) input is high, the Q outputs

follow the data (D) inputs. When LE is taken low, the Q outputs are latched

at the logic levels set up at the D inputs.

A buffered output-enable (OE) input can be used to place the eight outputs

in either a normal logic state (high or low logic levels) or a high-impedance

state. In the high-impedance state, the outputs neither load nor drive the bus

lines significantly. The high-impedance state and increased drive provide

the capability to drive bus lines without interface or pullup components.

The ALVCH373 has been designed with a ±24mA output driver. This

driver is capable of driving a moderate to heavy load while maintaining

speed performance.

The ALVCH373 has a “bus-hold” which retains the inputs’ last state

whenever the input bus goes to a high impedance. This prevents floating

inputs and eliminates the need for pull-up/down resistors.

• 3.3V high speed systems

• 3.3V and lower voltage computing systems

FUNCTIONAL BLOCK DIAGRAM

TO SEVEN OTHER CHANNELS

The IDT logo is a registered trademark of Integrated Device Technology, Inc.

INDUSTRIAL TEMPERATURE RANGE

MARCH 1999

DSC-4474/1

IDT74ALVCH373Q8 Related Products

	IDT74ALVCH373Q8	IDT74ALVCH373PY8	IDT74ALVCH373PG8	IDT74ALVCH373SO8
Description	Bus Driver, ALVC/VCX/A Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.635 MM PITCH, QSOP-20	Bus Driver, ALVC/VCX/A Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.65 MM PITCH, SSOP-20	Bus Driver, ALVC/VCX/A Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 0.65 MM PITCH, TSSOP-20	Bus Driver, ALVC/VCX/A Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, 1.27 MM PITCH, SOIC-20
Parts packaging code	QSOP	SSOP	TSSOP	SOIC
package instruction	SSOP,	SSOP,	TSSOP,	SOP,
Contacts	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown
series	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0
length	8.6868 mm	7.2 mm	6.5 mm	12.8 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	TSSOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
propagation delay (tpd)	7.7 ns	7.7 ns	7.7 ns	7.7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7272 mm	2 mm	1.2 mm	2.65 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.65 mm	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	3.937 mm	5.3 mm	4.4 mm	7.5 mm
Maker	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
