Datasheet> All Categories > Discrete semiconductor> diode> UFT3250D

Preview

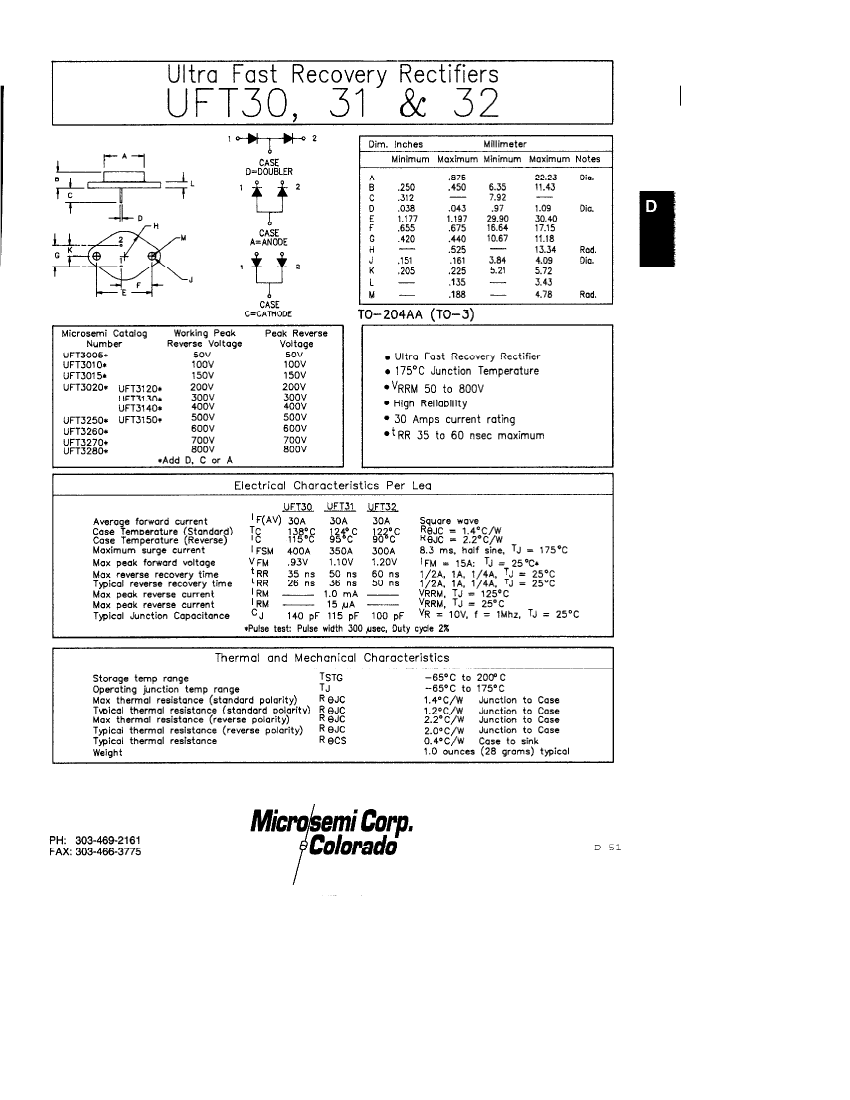

UFT3250D: DescriptionRectifier Diode, 1 Phase, 2 Element, 30A, 500V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN; CategoryDiscrete semiconductor diode; File Size287KB，7 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UFT3250D Overview

Rectifier Diode, 1 Phase, 2 Element, 30A, 500V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN

UFT3250D Parametric

Parameter Name	Attribute value
Parts packaging code	TO-3
package instruction	O-MBFM-P2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	ULTRA FAST RECOVERY
Shell connection	ANODE AND CATHODE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JEDEC-95 code	TO-204AA
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Maximum non-repetitive peak forward current	300 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	30 A
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	500 V
Maximum reverse current	15 µA
Maximum reverse recovery time	0.06 µs
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	BOTTOM
Base Number Matches	1

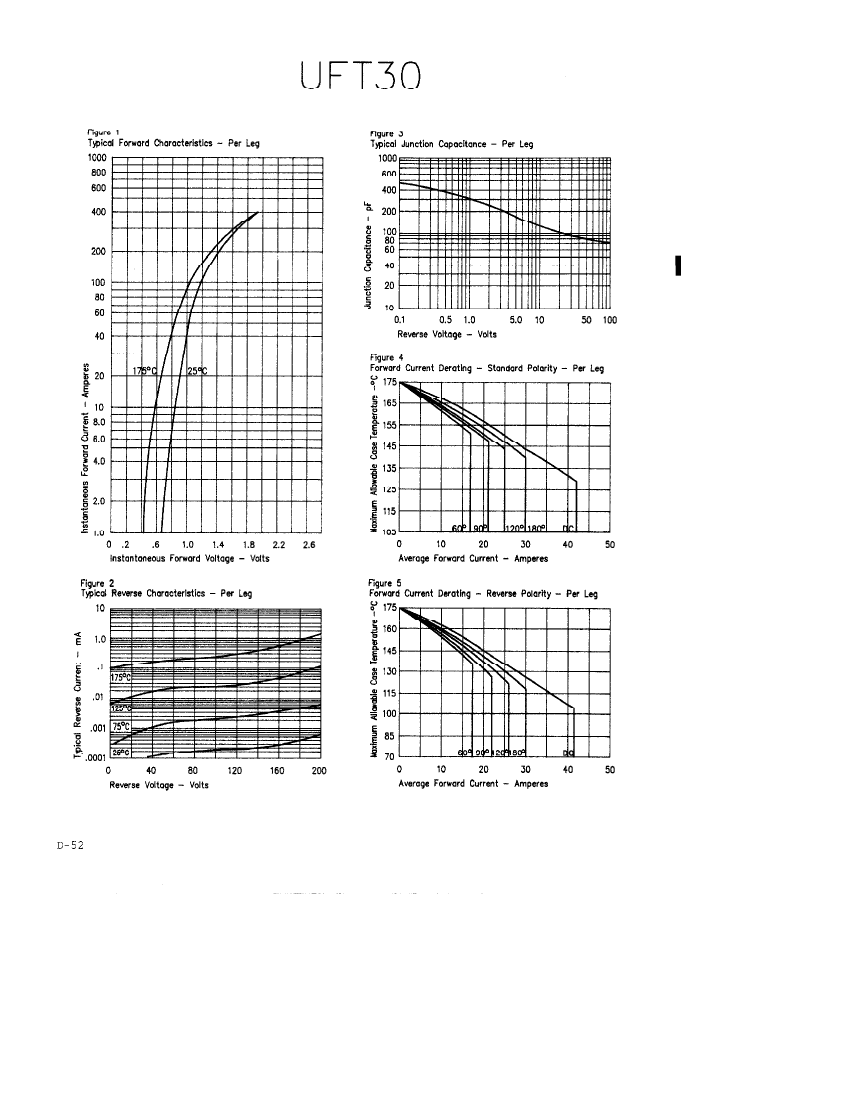

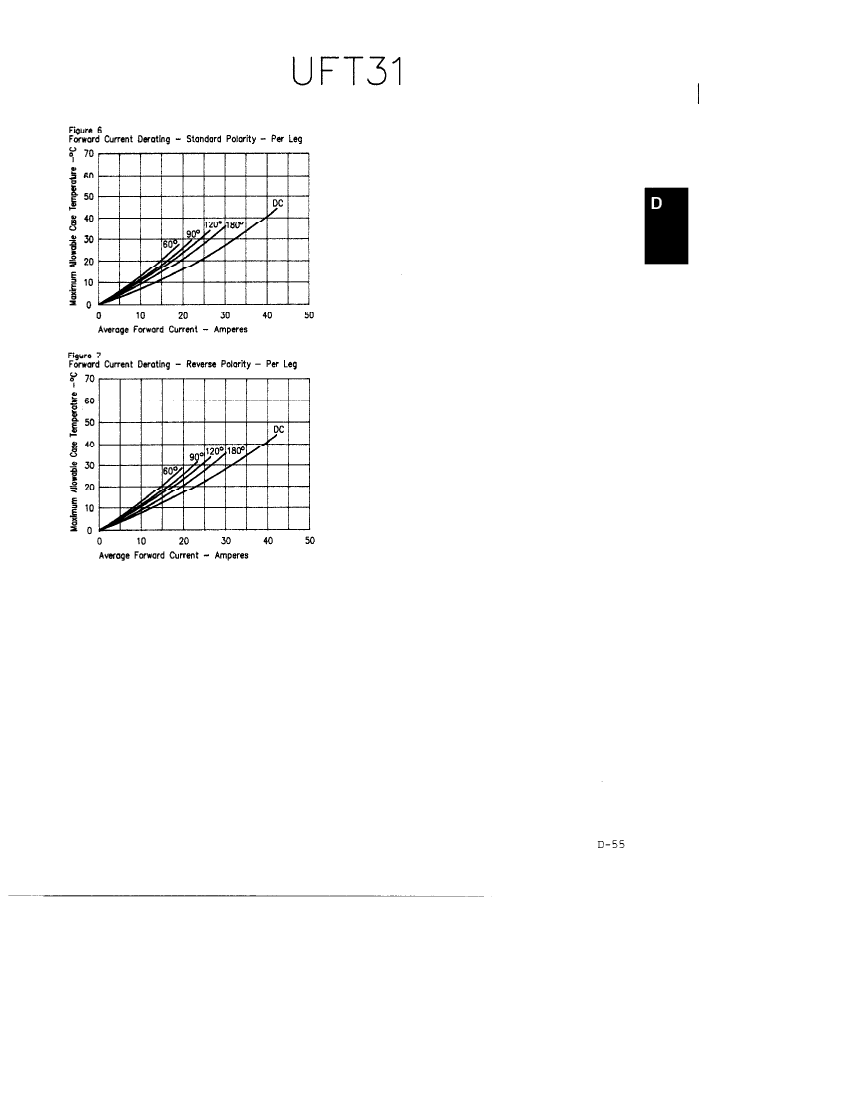

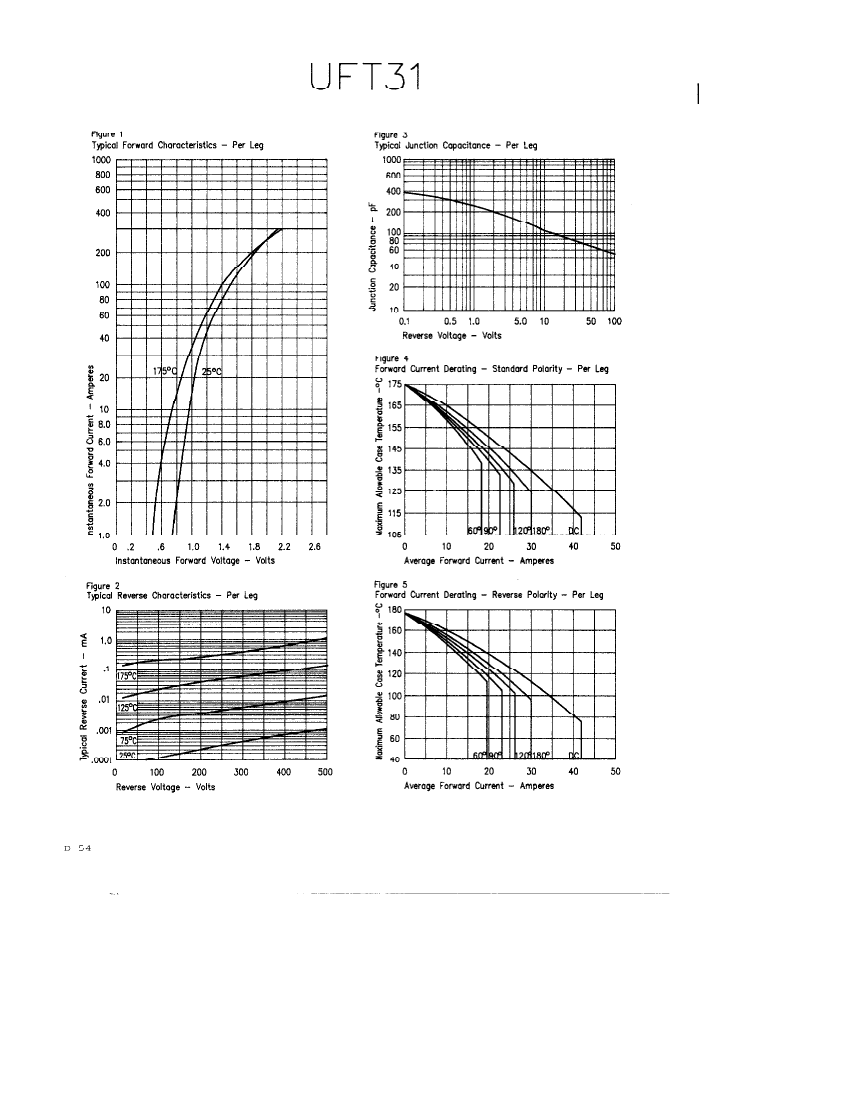

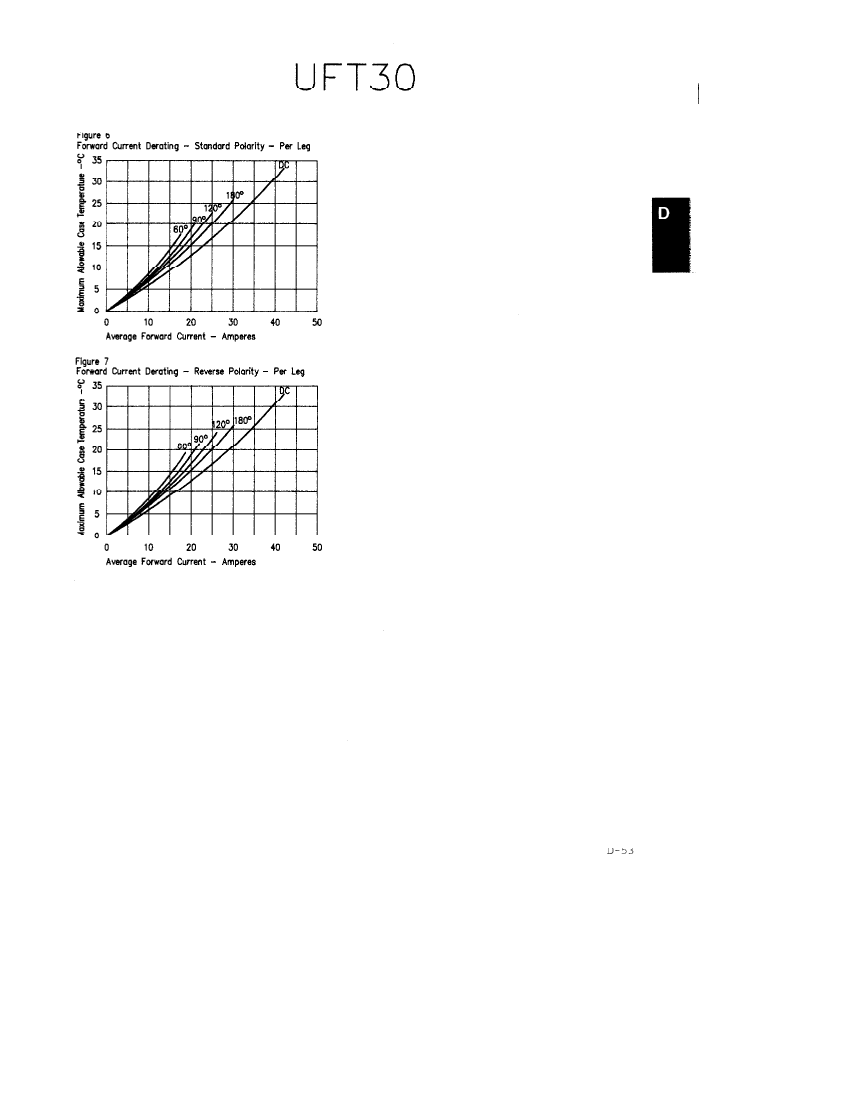

Preview

Download Datasheet

View All

UFT3250D Related Products

	UFT3250D	UFT3005A	UFT3005C	UFT3005D	UFT3250A	UFT3120C	UFT3120A	UFT3120D	UFT3250C
Description	Rectifier Diode, 1 Phase, 2 Element, 30A, 500V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 30A, 50V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 30A, 50V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 30A, 50V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 30A, 500V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 30A, 200V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 30A, 200V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 30A, 200V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 30A, 500V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN
Parts packaging code	TO-3	TO-3	TO-3	TO-3	TO-3	TO-3	TO-3	TO-3	TO-3
package instruction	O-MBFM-P2	O-MBFM-P2	TO-3, 2 PIN	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
Contacts	2	2	2	2	2	2	2	2	2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	ANODE AND CATHODE	ANODE	CATHODE	ANODE AND CATHODE	ANODE	CATHODE	ANODE	ANODE AND CATHODE	CATHODE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	0.93 V	0.93 V	0.93 V	1.2 V	1.1 V	1.1 V	1.1 V	1.2 V
JEDEC-95 code	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA
JESD-30 code	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	300 A	400 A	400 A	400 A	300 A	350 A	350 A	350 A	300 A
Number of components	2	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	500 V	50 V	50 V	50 V	500 V	200 V	200 V	200 V	500 V
Maximum reverse current	15 µA	15 µA	15 µA	15 µA	15 µA	15 µA	15 µA	15 µA	15 µA
Maximum reverse recovery time	0.06 µs	0.035 µs	0.035 µs	0.035 µs	0.06 µs	0.05 µs	0.05 µs	0.05 µs	0.06 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Base Number Matches	1	-	-	-	1	1	1	1	-
