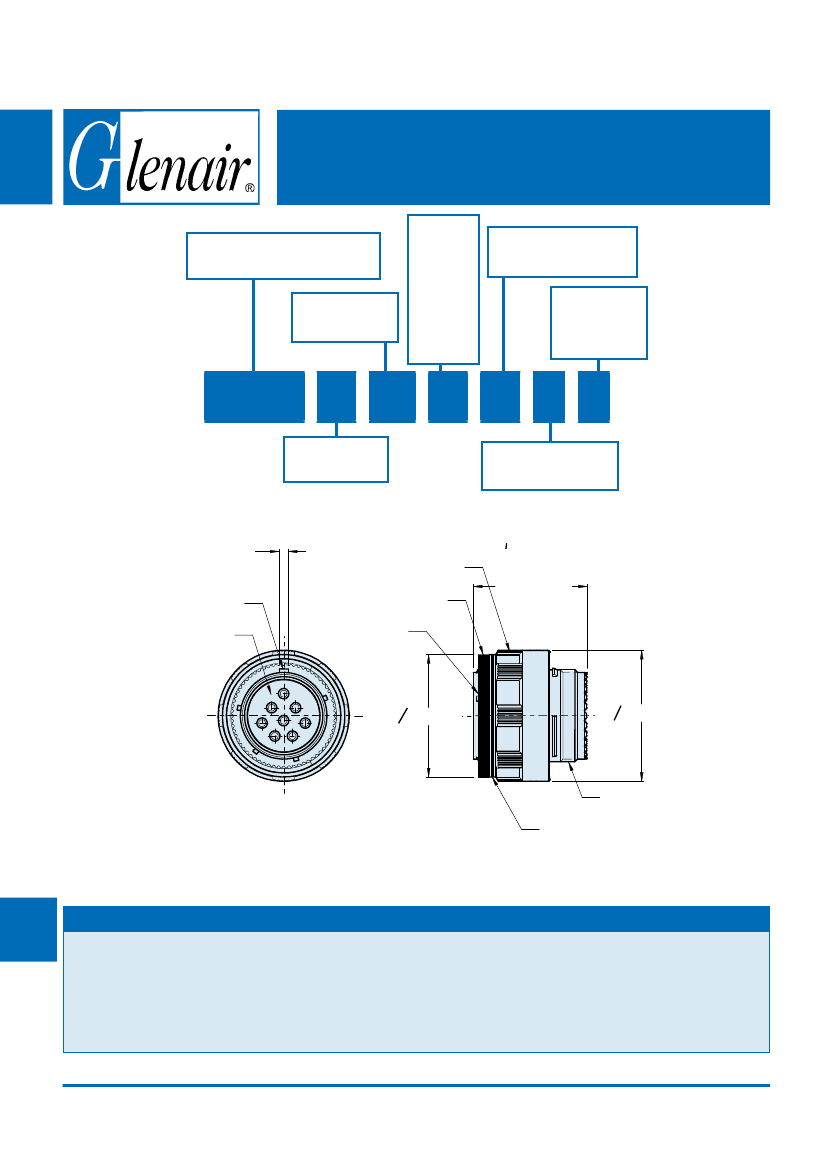

Environmental
Connectors
233-105-G6
MIL-DTL-38999 Series III Type
Environmental Plug Connector
Shell Size
09 19L
11
21
13 21L
13L 23
15 23L
15L 25
17 25C
17L 25L
19 25Q
Insert Arrangement
per MIL-STD-1560
and JSFD08
Alternate Key
Position
A, B, C, D, or E
A
Basic Part Number
233-105
-
D38999 Series III Type
Power and Signal Connector
Finish Material
(See Table II)
(N for Normal)
B
233-105
-
G6
Shell Style
G6
- Plug
XM
21
-
11
S
Contact Type
(See Table I)
N
C
.122 (3.1)
.118 (3.0)
Master Key
See Notes 3 and 4
Knurl
Manufacturer s
Option
1.220 (31.0)
Blue Color Band
Max
(See Note 6)
See Note 2
D
O CC Ma
x
O DD Max
E
Consult factory for available insert arrangements.
EE Thread
Yellow Color Band
F
APPLICATION NOTES
1. Material/ Finishes:
Barrel, Coupling Nut - See Table II
(Composite Coupling Nut - No Plating Required).
Insulators- High Grade Rigid Dielectric/ N.A
Seals- Fluorosilicone/ N.A.
2. Assembly to be identified with Glenair’s name, part
number and date code space permitting.
© 2009 Glenair, Inc.
3. Insert arrangement in accordance with MIL-STD-1560.
4. Insert arrangement shown is for reference only.
5. Blue Color Band indicates rear release retention system.
6. 16# AWG contact arrangements only. See available
arrangements opposite page.
7. Metric Dimensions (mm) are indicated in parentheses.
G
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
F-16
233-105-G6
MIL-DTL-38999 Series III Type
Environmental Plug Connector
TABLE I: CONTACT TYPES
Ordering
Code
P
S
A
B
Assembly
Dash Number
850-002-16-364
850-001-16-352
Wire Size
#16 – #20
#16 – #20
Type
Pin
Socket
Military Part
Number
M39029/58-364
M39029/56-352
Less pin contacts
Less socket contacts
TABLE II: FINISH
SYM
XM
XMT
XW
MATERIAL
Composite
Composite
Composite
FINISH
Electroless Nickel
Ni-PTFE
1000 Hour Grey
TM
Cadmium O.D. Over
Electroless Nickel
*Consult Factory for Additional Plating Options
TABLE III: SHELL SIZE
Shell
Size
Code
A
B
C
D
E
F
G
H
J
Shell
Size
09
11
13
15
17
19
21
23
25
CC
Max
Dia
.811 (20.6)
.929 (23.6)
1.110 (28.2)
1.232 (31.3)
1.358 (34.5)
1.469 (37.3)
1.594 (40.5)
1.720 (43.7)
1.843 (46.8)
DD
Max
Dia
.858 (21.8)
.984 (25.0)
1.157 (29.4)
1.280 (32.5)
1.406 (35.7)
1.516 (38.5)
1.642 (41.7)
1.768 (44.9)
1.890 (48.0)
EE
Thread
M12 x 1.0-6g 0.100R
M15 x 1.0-6g 0.100R
M18 x 1.0-6g 0.100R
M22 x 1.0-6g 0.100R
M25 x 1.0-6g 0.100R
M28 x 1.0-6g 0.100R
M31 x 1.0-6g 0.100R
M34 x 1.0-6g 0.100R
M37 x 1.0-6g 0.100R
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
F-17
