AC Line EMI Suppression and RC Networks
PME271Y A–E Series Metallized Impregnated Paper,
Class Y2, 300 VAC
Overview

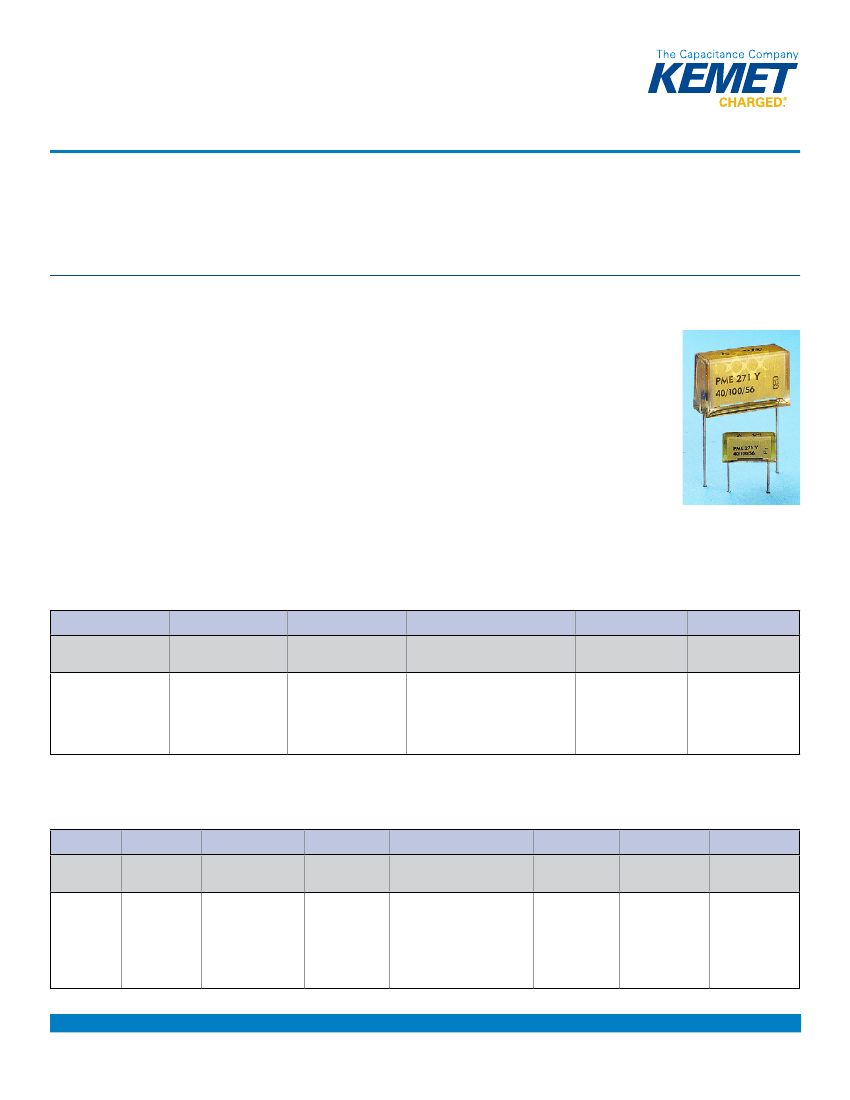

The PME271Y A–E Series is constructed of multilayer metallized
paper encapsulated and impregnated in self-extinguishing
material meeting the requirements of UL 94 V–0.
Applications
Typical applications include worldwide use as electromagnetic
interference suppressor in all Y2 applications, line-to-earth.
Benefits
•
•
•
•
•
•
•
•
•
•
Approvals: ENEC, UL, CSA, CQC
Rated voltage: 300 VAC 50/60 Hz
Capacitance range: 0.001 – 0.15 µF
Lead spacing: 10.2 – 25.4 mm
Capacitance tolerance: ±20% for C > 0.1 µF, ±10% for C ≤ 0.1 µF
Climatic category: 40/115/56/B, IEC 60068–1
Tape and reel packaging in accordance with IEC 60286–2
RoHS Compliant and lead-free terminations
Operating temperature range of -40˚C to +115˚C
100% screening factory test at 3,000 VDC
• The highest possible safety regarding
active and passive flammability
• Excellent self-healing properties
ensure long life even when subjected to
frequent over-voltages
• Good resistance to ionization due to
impregnated dielectric
• High dV/dt capability
• Impregnated paper ensures excellent
stability and reliability properties,
particularly in applications with continuous operation
Legacy Part Number System
PME271
Series
Y2, Metallized Paper
Y
Rated Voltage (VAC)
Y = 300
A
Lead Spacing (mm)
A = 10.2
B = 15.2
C = 20.3
D = 22.5
E = 25.4
4100
Capacitance Code (pF)
Digits 2 – 4(3) indicates the first
three digits of the capacitance
value. First digit indicates the total
number of digits in the capacitance
value.
M
Capacitance
Tolerance
M = ±20%
(for C ≤ 0.1 µF)
K = ±10%
(for C > 0.1 µF)
R30
Lead and
Packaging Code
See Ordering
Options Table
New KEMET Part Number System
P
Capacitor
Class
P = Paper
272
Series
Y2, Metallized
Paper
H
Lead Spacing (mm)
H = 10.2
Q = 15.2
C = 20.3
D = 22.5
E = 25.4
E
Size Code
See Dimension
Table
102
Capacitance Code (pF)
First two digits indicate the
two most significant digits
of the capacitance value in
picofarads. The third digit
is the number of following
zeros.
M
Capacitance
Tolerance
M = ±20%
(for C ≤ 0.1 µF)
K = ±10%
(for C > 0.1 µF)
300
Rated Voltage
(VAC)
300 = 300
A
Lead and
Packaging Code
See Ordering
Options Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3017_PME271YA_Y2_300 • 4/25/2013
1
Film Capacitors
AC Line EMI Suppression and RC Networks – PME271Y A–E Series Metallized Impregnated Paper, Class Y2, 300 VAC
Ordering Options Table
Lead
Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Lead Length
(mm)
KEMET
Legacy
Lead and Lead and
Packaging Packaging
Code
Code
C
A
L
P
LAF3
R06
R30
R19T0
R19T1
R30XA
10.2
Bulk (Bag) – Short Leads
Bulk (Bag) – Max Length Leads
Tape & Reel (Standard Reel)
Other Lead and Packaging Options
Tape & Reel (Large Reel)
6 +0/-1
30 +5/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
H
0
= 16.5 +/-0.5
Native 10.2
formed to 7.5
Ammo Pack
Standard Lead and Packaging Options
15.2
Bulk (Bag) – Short Leads
Bulk (Bag) – Max Length Leads
Tape & Reel (Standard Reel)
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Standard Lead and Packaging Options
6 +0/-1
30 +5/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
C
A
L
P
R06
R30
R19T0
R19T1
20.3
Bulk (Tray) – Short Leads
Bulk (Bag) – Max Length Leads
Tape & Reel (Standard Reel)
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Standard Lead and Packaging Options
6 +0/-1
30 +5/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
C
A
L
P
R06
R30
R19T0
R19T1
22.5
Bulk (Tray) – Short Leads
Bulk (Bag) – Max Length Leads
Tape & Reel (Standard Reel)
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Standard Lead and Packaging Options
Bulk (Tray) – Short Leads
Bulk (Bag) – Max Length Leads
6 +0/-1
30 +5/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
C
A
L
P
R06
R30
R19T0
R19T1
25.4
6 +0/-1
30 +5/-0
C
A
R06
R30
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3017_PME271YA_Y2_300 • 4/25/2013
2
Film Capacitors
AC Line EMI Suppression and RC Networks – PME271Y A–E Series Metallized Impregnated Paper, Class Y2, 300 VAC
Dimensions – Millimeters
L
H
d
p
p
Nominal
10.2
10.2
10.2
15.2
15.2
15.2
20.3
20.3
20.3
22.5
22.5
22.5
25.4
25.4
Tolerance
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
B
LL
B
Nominal
3.9
4.1
5.1
5.2
5.5
7.3
7.6
9
11.3
8
10
12
12.1
15.3
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
7.5
8.2
10.5
10.5
11
13
14
15
16.5
17
19
22
19
22
H
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
13.5
13.5
13.5
18.5
18.5
18.5
24
24
24
27
27
27
30.5
30.5
L
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1
1
d
Tolerance
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3017_PME271YA_Y2_300 • 4/25/2013
3
Film Capacitors
AC Line EMI Suppression and RC Networks – PME271Y A–E Series Metallized Impregnated Paper, Class Y2, 300 VAC
Performance Characteristics
Rated Voltage
Capacitance Range
Capacitance Tolerance
Temperature Range
Climatic Category
Approvals
Dissipation Factor
300 VAC 50/60 Hz
0.001 – 0.15 µF
± 20% for C ≤ 0.1µF, ± 10% for C > 0.1µF
-40ºC to +115°C
40/115/56/B
ENEC, UL, CSA, CQC
Maximum Values at +23°C
1 kHz
1.3%
The 100% screening factory test is carried out at 3,000 VDC. The
voltage level is selected to meet the requirements in applicable
equipment standards. All electrical characteristics are checked
after the test. It is not permitted to repeat this test as there is a risk
to damage the capacitor. KEMET is not liable in such case for any
failures.
Minimum Value Between Terminals
≥ 12,000 MΩ
Recommended voltage ≤ 1,000 VDC
Test Voltage Between Terminals
Insulation Resistance
In DC Applications
Environmental Test Data
Test
Vibration
Bump
Solderability
Active Flammability
Passive Flammability
Humidity
IEC Publication
IEC 60068–2–6 Test Fc
IEC 60068–2–29 Test Eb
IEC 60068–2–20 Test Ta
IEC 60384–14
IEC 60384–14
IEC 60068–2–3 Test Ca
Needle-flame test
+40°C and 90 – 95% RH
4,000 bumps at 390 m/s
2
Solder globule method
Procedure
3 directions at 2 hours each 10 – 500 Hz at 0.75 mm or 98 m/s
2
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3017_PME271YA_Y2_300 • 4/25/2013
4
Film Capacitors
AC Line EMI Suppression and RC Networks – PME271Y A–E Series Metallized Impregnated Paper, Class Y2, 300 VAC
Approvals
Mark
Specification
EN/IEC 60384–14
File Number
SE/0140–27C
UL 1283 (250 VAC)
CSA – C22.2 No. 8 (250 VAC)
CQC
E100117
E100117
10001043354
Environmental Compliance
All KEMET EMI capacitors are RoHS Compliant.
Table 1 – Ratings & Part Number Reference
Capacitance Maximum Dimensions in mm
Lead
Value (µF)
Spacing (p)
B
H
L
0.0010
0.0015
0.0022
0.0025
0.0033
0.0047
0.0068
0.0100
0.0150
0.0220
0.0330
0.0470
0.0680
0.0330
0.0470
0.0680
0.1000
0.1000
0.1500
3.9
3.9
3.9
4.1
4.1
5.1
5.2
5.2
5.5
7.3
7.6
9
11.3
8
8
10
12
12.1
15.3
7.5
7.5
7.5
8.2
8.2
10.5
10.5
10.5
11
13
14
15
16.5
17
17
19
22
19
22
13.5
13.5
13.5
13.5
13.5
13.5
18.5
18.5
18.5
18.5
24
24
24
27
27
27
27
30.5
30.5
10.2
10.2
10.2
10.2
10.2
10.2
15.2
15.2
15.2
15.2
20.3
20.3
20.3
22.5
22.5
22.5
22.5
25.4
25.4
fo
(MHz)
53.0
44.0
37
35
30
24
19
16
13
9.8
7
6
4.6
6.8
5.8
4.8
3.8
3.9
3.1
dV/dt
(V/µs)
2000
2000
2000
2000
2000
2000
1400
1400
1400
1400
1000
1000
1000
600
600
600
600
400
400
New
KEMET
Part Number
P272HE102M300(1)
P272HE152M300(1)
P272HE222M300(1)
P272HH252M300(1)
P272HH332M300(1)
P272HL472M300(1)
P272QE682M300(1)
P272QE103M300(1)
P272QH153M300(1)
P272QM223M300(1)
P272CE333M300(1)
P272CJ473M300(1)
P272CP683M300(1)
P272SJ333M300(1)
P272SJ473M300(1)
P272SP683M300(1)
P272SU104M300(1)
P272EJ104M300(1)
P272EL154K300(1)
Legacy Part
Number
PME271YA4100M(1)
PME271YA4150M(1)
PME271YA4220M(1)
PME271YA4250M(1)
PME271YA4330M(1)
PME271YA4470M(1)
PME271YB4680M(1)
PME271YB5100M(1)
PME271YB5150M(1)
PME271YB5220M(1)
PME271YC5330M(1)
PME271YC5470M(1)
PME271YC5680M(1)
PME271YD5330M(1)
PME271YD5470M(1)
PME271YD5680M(1)
PME271YD6100M(1)
PME271YE6100M(1)
PME271YE6150K(1)
Capacitance
Value (µF)
B (mm)
H (mm)
L (mm)
Lead Spacing
(p)
fo (MHz)
dV/dt
(V/µs)
New KEMET
Part Number
Legacy Part Number
(1) Insert ordering code for lead type and packaging. See Ordering Options Table for available options.
