230-017
Hermetic Receptacle, Wide Flange Mount
MIL-C-26482 series II, Ms3442 Type
HOW TO ORDER:
EXAMPLE:
BASIC SERIES
SHELL SIZE
CONTACT ARRANGEMENT
PER MIL-STD-1669
CONTACT STYLE
"P" = SOLDER CUP
ALTERNATE INSERT POSITION
(LEAVE BLANK FOR NORMAL)
5
MIL-C-24682
MASTER
POLARIZING
KEYWAY
.060 WIDTH
POLARIZING
STRIPE
A
B
C
E
D

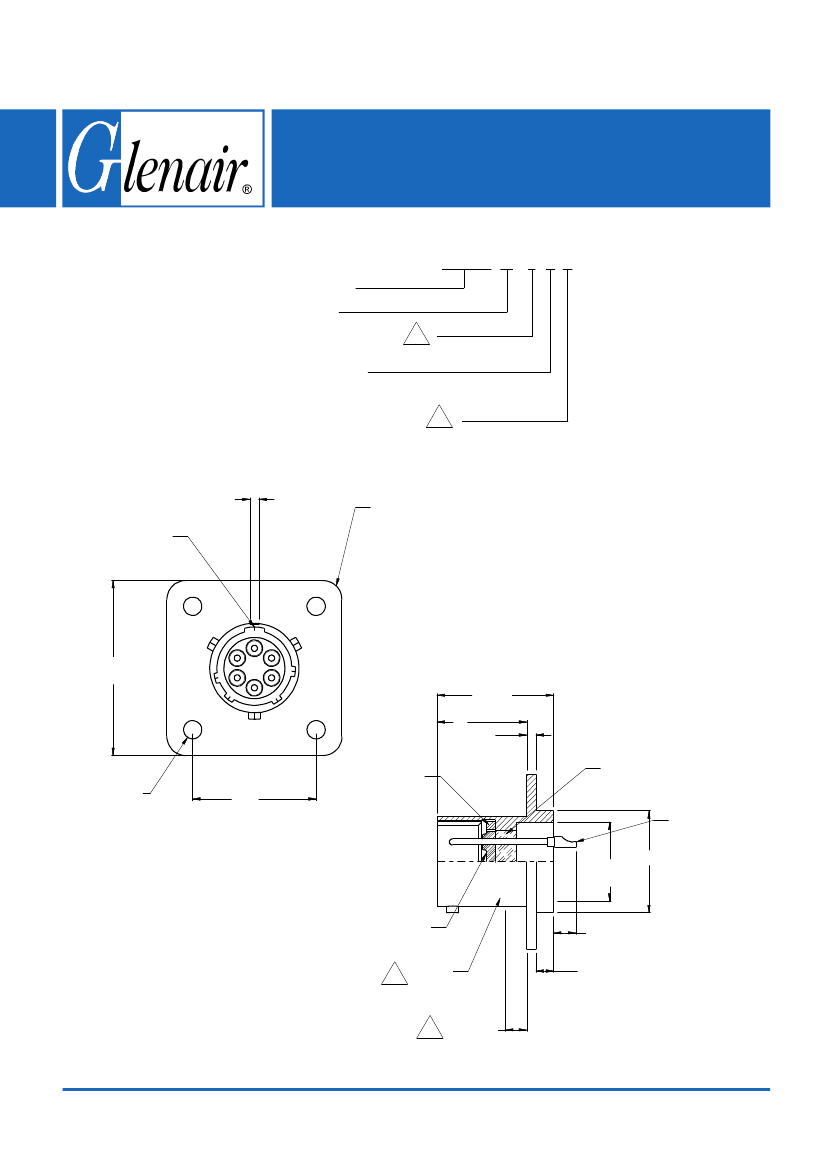

230 - 017 10 - 6
P X
5
MIN EDGE DISTANCE
RELATIVE TO MOUNTING HOLES
SHELL SIZES 8 - 18 = .035
SHELL SIZES 20 - 24 = .050
A MAX
(TYP)
F
L MAX
REF
F
G
VITREOUS
INSERT
CONTACTT
STYLE "P"
D
MIN
C
30- 017H
ø H TYP
4 PL
B
TYP
PERIPHERAL
GASKET
INTERFACIAL
SEAL
2
PART
IDENT.
J
P (SIZE 20 CONTACTS)
V (SIZE 16 & 12 CONTACTS)
2 .140 MIN
© 2004 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-6
230-017
Hermetic Receptacle, Wide Flange Mount
MIL-C-26482 series
HERMETIC RECEPTACLE,
II, Ms3442 Type
WIDE FLANGE MOUNT,
MIL-C-26482 SRS 2, MS3442 TYPE
Dø
MIN
F
G
H
230-017
TABLE I: CONNECTOR DIMENSIONS
SHELL
SIZE
8
10
12
14
16
18
20
22
24
A
B
Cø
MOUNTING
LOCATOR
.563/.557 (14.3/14.1)
.673/.667 (17.1/16.9)
.782/.776 (19.9/19.7)
1.065 (27.1) .734 (18.6)
1.141 (29.0) .812 (20.6)
1.266 (32.2) .938 (23.8)
.403 (10.2) .598/.578 (15.2/14.7) .078/.046 (2.0/1.2) .120 (3.0)
.515 (13.1) .598/.578 (15.2/14.7) .078/.046 (2.0/1.2) .120 (3.0)
.630 (16.0) .598/.578 (15.2/14.7) .078/.046 (2.0/1.2) .120 (3.0)
.755 (19.2) .598/.578 (15.2/14.7) .078/.046 (2.0/1.2) .120 (3.0)
1.360 (34.5) 1.031 (26.2) .907/.901 (23.0/22.9)
1.453 (36.9) 1.125 (28.6) 1.032/1.026 (26.2/26.1) .880 (22.4) .598/.578 (15.2/14.7) .078/.046 (2.0/1.2) .120 (3.0)
1.532 (38.9) 1.203 (30.6) 1.157/1.151 (29.4/29.2) .980 (24.9) .598/.578 (15.2/14.7) .078/.046 (2.0/1.2) .120 (3.0)
1.688 (42.9) 1.297 (32.9) 1.251/1.245 (31.8/31.6) 1.105 (28.1) .660/.640 (16.8/16.3) .110/.078 (2.8/2.0) .120 (3.0)
1.766 (44.9) 1.375 (34.9) 1.376/1.371 (35.0/34.8) 1.230 (31.2) .660/.640 (16.8/16.3) .110/.078 (2.8/2.0) .120 (3.0)
1.891 (48.0) 1.500 (38.1) 1.501/1.495 (38.1/38.0) 1.385 (35.2) .660/.640 (16.8/16.3) .110/.078 (2.8/2.0) .147 (3.7)
TABLE I (CONTINUED): CONNECTOR DIMENSIONS
SHELL
SIZE
8
10
12
14
16
18
20
22
24
J
L
P
V
PANEL
CUT-OUT
ø
MAX.
WEIGHT
(LBS)
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
.125/.105 (3.2/2.7) .801 (20.3) .178/.118 (4.5/3.0) .248/.188 (6.3/4.8) .570 (14.5)
.125/.105 (3.2/2.7) .801 (20.3) .178/.118 (4.5/3.0) .248/.188 (6.3/4.8) .680 (17.3)
.125/.105 (3.2/2.7) .801 (20.3) .178/.118 (4.5/3.0) .248/.188 (6.3/4.8) .789 (20.0)
.125/.105 (3.2/2.7) .801 (20.3) .178/.118 (4.5/3.0) .248/.188 (6.3/4.8) .914 23.2)
.125/.105 (3.2/2.7) .801 (20.3) .178/.118 (4.5/3.0) .248/.188 (6.3/4.8) 1.039 (26.4)
.125/.105 (3.2/2.7) .801 (20.3) .178/.118 (4.5/3.0) .248/.188 (6.3/4.8) 1.164 (29.6)
.093/.073 (2.4/1.9) .863 (21.9) .178/.118 (4.5/3.0) .248/.188 (6.3/4.8) 1.258 (32.0)
.125/.105 (3.2/2.7) .895 (22.7) .146/.086 (3.7/2.2) .216/.156 (5.5/4.0) 1.383 (35.1)
.125/.105 (3.2/2.7) .895 (22.7) .146/.086 (3.7/2.2) .216/.156 (5.5/4.0) 1.508 (38.3)
NOTES:
1. MATERIAL/FINISH:
SHELL - C1215 CRS / TIN PLATED
CONTACTS - 52 NICKEL ALLOY / TIN PLATED
BAYONETS: STAINLESS STEEL / PASSIVATED
SEALS: SILICONE ELASTOMER
INSULATION: GLASS, NOIBN
2 ASSEMBLY TO BE IDENTIFIED WITH GLENAIR'S NAME, PART
NUMBER AND DATE CODE SPACE PERMITTING.
3. PERFORMANCE:
_
HERMETICITY: <1 X 10^-7 SCCHE/SEC @ 1 ATMOSPHERE DIFFERENTIAL
DIELECTRIC WITHSTANDING VOLTAGE: CONSULT FACTORY OR MIL-STD-1669
INSULATION RESISTANCE: 5000 MEGOHMS MIN @ 500VDC
4. GLENAIR 230-017 WILL MATE WITH ANY QPL MIL-C-26482
SERIES 2 BAYONET COUPLING PLUG OF SAME SIZE
AND INSERT POLARIZATION
5 CONSULT FACTORY AND / OR MIL-STD-1669 FOR
ARRANGEMENT AND INSERT POSITION OPTIONS
© 2004 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-7
