XZM2BG68W-2: DescriptionSingle Color LED, Green, Water Clear, 0.8mm, 1 X 0.50 MM, 0.50 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size199KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

XZM2BG68W-2 Overview

Single Color LED, Green, Water Clear, 0.8mm, 1 X 0.50 MM, 0.50 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

XZM2BG68W-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	1 X 0.50 MM, 0.50 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	795.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.5 mm
method of packing	TAPE AND REEL
peak wavelength	525 nm
shape	RECTANGULAR
size	0.8 mm
surface mount	YES
Terminal pitch	1.1 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number:

XZM2BG68W-2

1.0X0.5mm SMD CHIP LED LAMP

PRELIMINARY SPEC

Features

1.0mmX0.5mm SMT LED, 0.5mm THICKNESS.

LOW POWER CONSUMPTION.

WIDE VIEWING ANGLE.

IDEAL FOR BACKLIGHT AND INDICATOR.

VARIOUS COLORS AND LENS TYPES AVAILABLE.

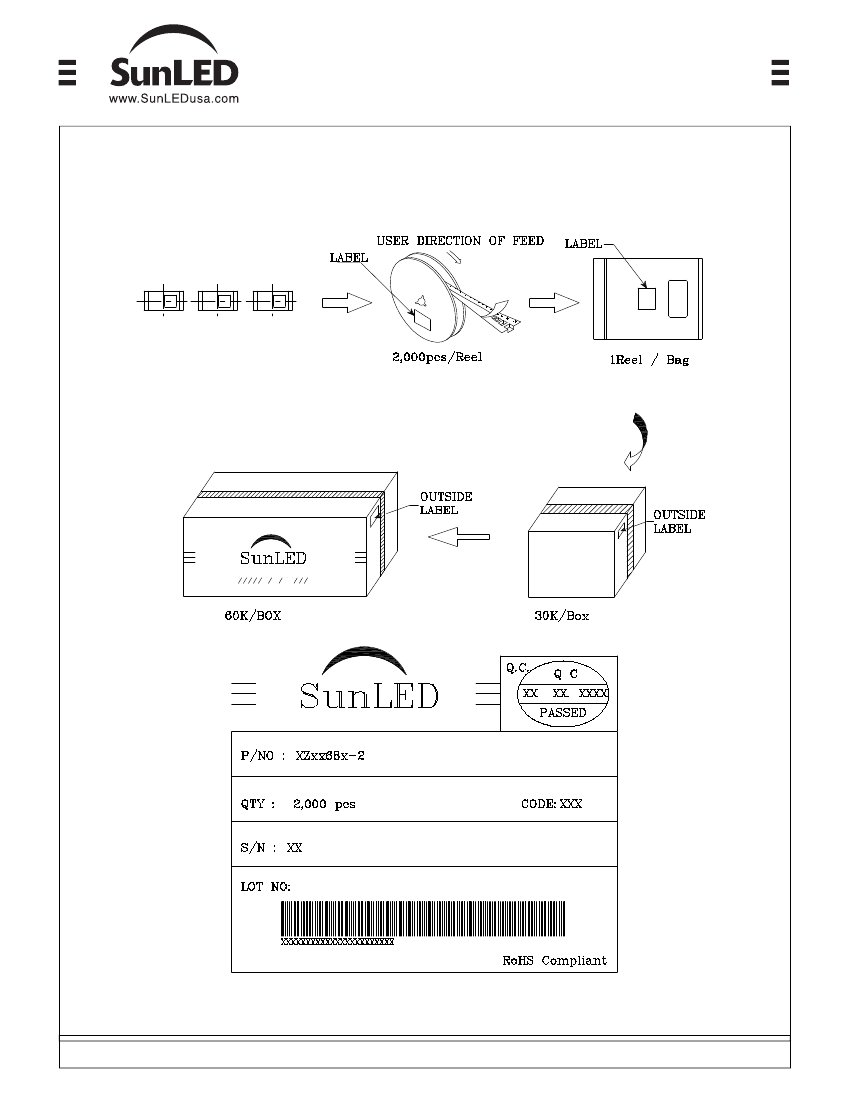

PACKAGE: 2000PCS / REEL.

MOISTURE SENSITIVITY LEVEL : LEVEL 3.

RoHS COMPLIANT.

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.1(0.004") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Unit

°C

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength Of Peak

Emission (Typ.)

=20mA)

Wavelength Of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

M2BG

(InGaN)

3.2

3.7

Unit

M2BG

(InGaN)

100

111

-40 ~ +85

1000

525

535

Electrostatic Discharge Threshold

(HBM)

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

min.

typ.

795

Wavelength

Viewing

Angle

1/2

XZM2BG68W-2

Green

InGaN

Water Clear

380

525

120°

Published Date : JAN 18, 2008

Drawing No : XDSB1750

Checked : B.L.LIU

P.1/4
