9070-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 9070-9

9070-9: DescriptionFixed Attenuator, 0MHz Min, 6000MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size36KB，1 Pages; ManufacturerCobham Semiconductor Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

9070-9 Overview

Fixed Attenuator, 0MHz Min, 6000MHz Max, ROHS COMPLIANT PACKAGE

9070-9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	N-F; N-M
Nominal attenuation	9 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	6000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

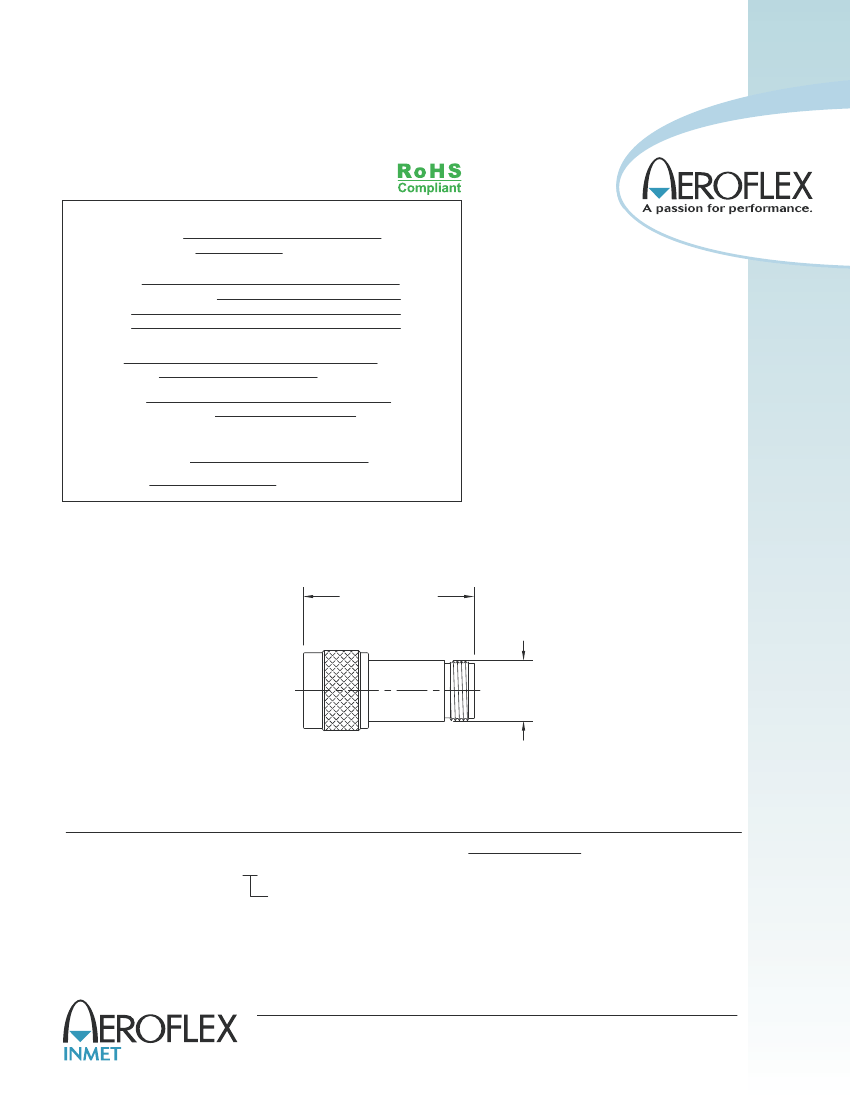

ATTENUATORS

Type N, DC - 6 GHz, 2 Watts

SPECIFICATIONS:

Models: 9070

Electrical:

Frequency Range

Standard dB Values

Attenuation Accuracy

1 - 6 dB

7 - 10, 1 15 & 20dB

30dB

40dB

VSWR

Input Power

Impedance

Operating Temp Range

DC - 6GHz

1 - 10, 1 15, 20, 30 & 40dB

In 1 dB Increments

±0.3 dB

±0.5 dB

±0.9 dB

±1.5 dB

1.25:1 Max.

2 Watts Avg. @ 25°C

Derated Linearly to 1. Watts @ +85 C

50 Ohms

-20°C to +85°C

Mechanical:

Type N Connectors

Mates with MIL

-STD-348

Plated Brass

Gold Plated Beryllium Copper

Conductors

Model Number:

9070-XX

Type N Male / Female

1.76±.03

[44.64±0.76]

Ø.62

[15.80]

HOW TO ORDER:

Model Number:

9070-XX

dB Value

Ordering Examples:

Model Number:

9070-20

20 dB; Type N - Male/Fem

Model Number:

9070-6

6 dB; Type N - Male/Fem

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

9070: REV K

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex.com

9070-9 Related Products

	9070-9	9070-2	9070-8	9070-6	9070-3	9070-1	9070-5
Description	Fixed Attenuator, 0MHz Min, 6000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 6000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 6000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 6000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 6000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 6000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 6000MHz Max, ROHS COMPLIANT PACKAGE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	N-F; N-M	N-F; N-M	N-F; N-M	N-F; N-M	N-F; N-M	N-F; N-M	N-F; N-M
Nominal attenuation	9 dB	2 dB	8 dB	6 dB	3 dB	1 dB	5 dB
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
Maximum operating frequency	6000 MHz	6000 MHz	6000 MHz	6000 MHz	6000 MHz	6000 MHz	6000 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Maximum voltage standing wave ratio	1.25	1.25	1.25	1.25	1.25	1.25	1.25
Base Number Matches	1	1	1	1	-	-	-
Maker	-	Cobham Semiconductor Solutions	-	-	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions
