Radial Lead Inductors(Coils)
For Signal Line(Magnetic Shielded)
ELF Series ELF1010
FEATURES
• The ELF series inductors are available in ranging from 0505 to
1010 types.
• Because they are magnetically shielded, these parts can be
used in high-density mounting configurations.
• With a miniature winding construction, these inductors
nonetheless achieve high Q characteristics.
• Available in tape packaging to support automated mounting
machines.
• Terminal platings and internal connecting solder use lead-free
materials.
• This product conforms to the standards that are slated to be
introduced under the RoHS Directive.
APPLICATIONS
Televisions, VCRs, personal computers, and other electronic
equipment.
SPECIFICATIONS
Operating temperature range
Storage temperature range
Terminal tensile strength
–20 to +80°C
[Including self-temperature rise]
–40 to +80°C [Unit of products]
24.5N min.
Conformity to RoHS Directive
PRODUCT IDENTIFICATION
ELF 1010 RR- 101 K - PF
(1) (2) (3) (4) (5) (6)
(1)Series name
(2)Dimensions
1010
ø10.5× 10.5mm (lead pitch 5mm)
(3)Packaging style
RR
SKI
Reel
Bulk
(4)Inductance value
101
102
103
100µH
1000µH
10000µH
(5)Inductance tolerance
J
K
±5%
±10%
(6)Lead-free compatible product
PF
Lead-free compatible product
RECOMMENDED SOLDERING CONDITIONS
FLOW SOLDERING
10s max.
260˚C max.
Natural
cooling
170˚C
150˚C
Pre-heating
60 to 120s
PACKAGING STYLE AND QUANTITIES
Packaging style
Reel
Bulk
Quantity
300 pieces/reel
100 pieces/pack
Time (s)
IRON SOLDERING
Tip temperature
Heating time
350°C max.
5 seconds/soldering
• The use of reflow soldering is not guaranteed.
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
002-05 / 20060415 / e512_elf1010.fm
(2/3)

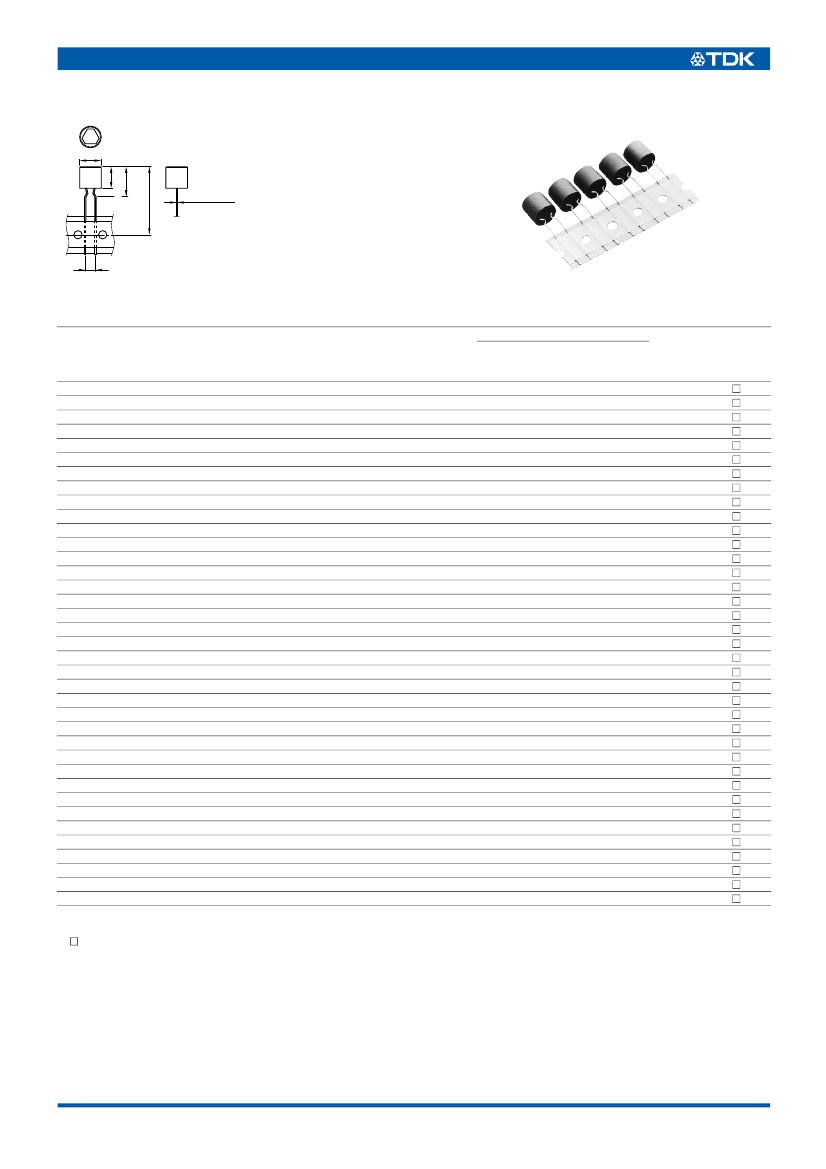

REEL TAPING STYLE
SHAPES AND DIMENSIONS
101
K
ø10.5max.
14.5max.
33max.
10.5max.
ø0.62±0.05
5+0.8, –0.2
Dimensions in mm
ELECTRICAL CHARACTERISTICS
Inductance
(µH)
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
22000
27000
33000
39000
47000
56000
68000
82000
100000
∗1
Inductance
tolerance
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
Q min.
50
50
50
50
50
50
50
50
50
40
40
40
60
60
60
60
60
60
60
60
60
60
60
60
40
40
40
40
40
40
40
40
40
40
30
30
30
Test
frequency
L, Q (kHz)
796
796
796
796
796
796
796
796
796
796
796
796
252
252
252
252
252
252
1
∗3
/252
∗4
1/252
1/252
1/252
1/252
1/252
1/79.6
1/79.6
1/79.6
1/79.6
1/79.6
1/79.6
1/79.6
1/79.6
1/79.6
1/79.6
1/79.6
1/79.6
1/79.6
Self-
resonant
frequency
(MHz)ref.
4.7
4.2
3.8
3.5
3.1
2.8
2.6
2.4
2.2
2
1.8
1.6
1.5
1.4
1.2
1.1
1
0.9
0.81
0.75
0.68
0.63
0.57
0.52
0.47
0.43
0.38
0.34
0.31
0.28
0.25
0.23
0.22
0.2
0.18
0.17
0.15
DC
resistance
(Ω)max.
0.66
0.73
0.81
0.89
0.98
1.05
1.15
1.5
1.65
1.9
2.2
2.6
3
3.4
4
4.6
5.4
6.9
8.2
11
14
19
22
25
34
38
43
47
65
74
115
125
145
190
215
290
330
Rated current (mA)
∗1
max.
Based on
Based on
inductance
temperature
change
rise
580
425
530
405
470
430
430
365
390
350
350
340
320
325
290
285
270
270
245
250
220
235
200
215
180
200
170
190
150
175
135
160
125
150
110
130
100
120
92
105
84
93
77
79
70
74
63
69
57
59
53
56
47
53
43
51
39
43
35
40
32
32
29
31
26
29
24
25
22
24
20
20
18
19
Part No.
ELF1010RR-101
ELF1010RR-121
ELF1010RR-151
ELF1010RR-181
ELF1010RR-221
ELF1010RR-271
ELF1010RR-331
ELF1010RR-391
ELF1010RR-471
ELF1010RR-561
ELF1010RR-681
ELF1010RR-821
ELF1010RR-102
ELF1010RR-122
ELF1010RR-152
ELF1010RR-182
ELF1010RR-222
ELF1010RR-272
ELF1010RR-332
ELF1010RR-392
ELF1010RR-472
ELF1010RR-562
ELF1010RR-682
ELF1010RR-822
ELF1010RR-103
ELF1010RR-123
ELF1010RR-153
ELF1010RR-183
ELF1010RR-223
ELF1010RR-273
ELF1010RR-333
ELF1010RR-393
ELF1010RR-473
ELF1010RR-563
ELF1010RR-683
ELF1010RR-823
ELF1010RR-104
∗2
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
-PF
∗2
-PF
-PF
-PF
-PF
Rated current: Value obtained when current flows and the temperature has risen to 20°C or when DC current flows and the initial value of inductance has
fallen by 10%, whichever is smaller.
∗2
: Please specify inductance tolerance, K(±10%) or J(±5%)
∗3
for L
∗4
for Q
• ELF1010(100µH to 2.7mH) L, Q, Rdc, SRF: are the same as ELF0505, 0607 and 0708
• ELF1010(3.3 to 100mH) L:LCR METER MODEL 4261A YHP, or equivalent Q, Rdc, SRF:are the same as ELF0505, 0607 and 0708
• L measuring instrument differs from others, because measurement frequency is 1kHz.
• All specifications are subject to change without notice.
002-05 / 20060415 / e512_elf1010.fm
(3/3)
TYPICAL ELECTRICAL CHARACTERISTICS
INDUCTANCE CHANGE vs. DC SUPERPOSITION
CHARACTERISTICS
100000
50000
Test circuit L=5H C=20000µF
A
DC
Specimen
15000µH
10000
5000
Inductance (
µH
)
10000µH
3300µH
INDUCTANCE CHANGE vs. TEMPERATURE
CHARACTERISTICS
6
∆L
/L (%)
4
2
0
–20
1000µH
10000µH
100000µH
100µH
0
–2
–4
–6
80
60
20 40
Temperature (˚C)
100000µH
100µH
10000µH
1000µH
1000
500
1000µH
LCR
meter
YHP 4275A LCR METER
f=10kHz
330µH
Q vs. FREQUENCY CHARACTERISTICS
100
50
100µH
140
120
100
Q
10
1
5
10
50 100
DC current (mA)
500 1000
80
1000µH
60
40
Q-METER 4340A YHP
20
0.02 0.05 0.1 0.2
0.5 1
2
5
Frequency (MHz)
10 20
50
10000µH
100µH
100000µH
• All specifications are subject to change without notice.
002-05 / 20060415 / e512_elf1010.fm
