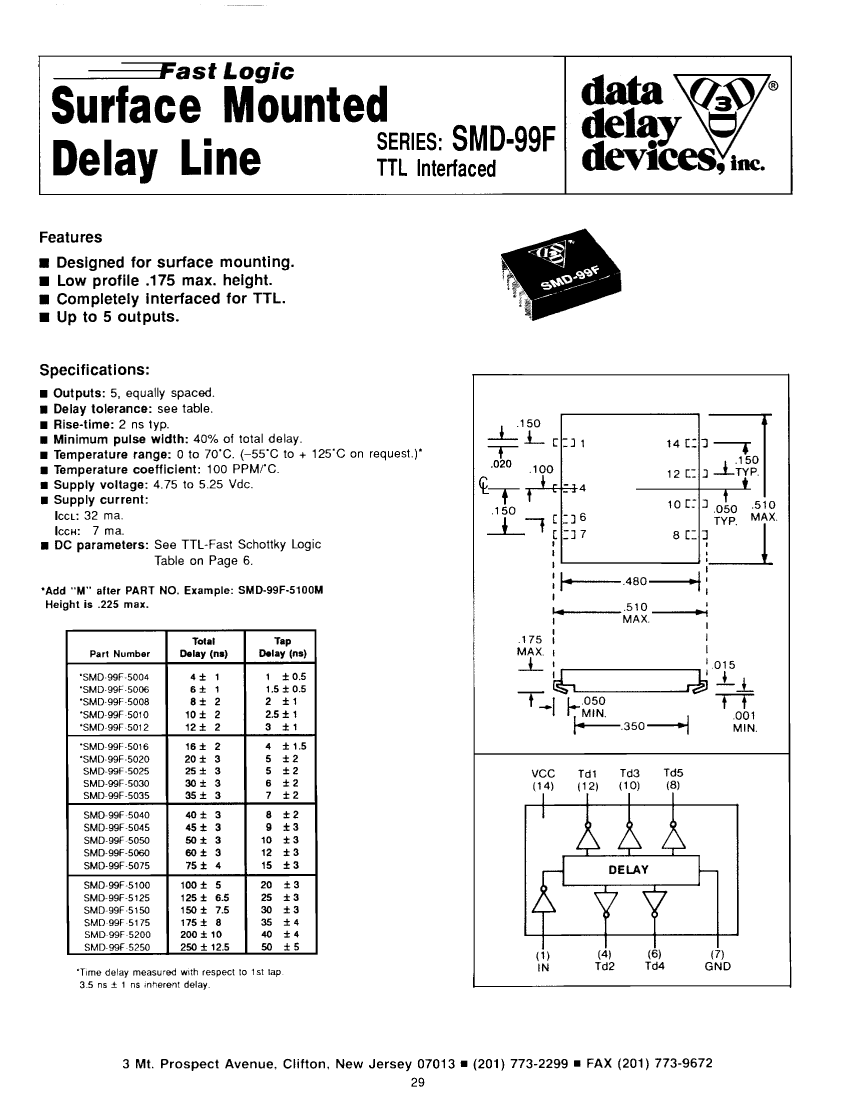

Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDSO8, 0.175 INCH HEIGHT, LOWPROFILE, SMD-14/8
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Parts packaging code | SOIC |
| package instruction | SOC, |
| Contacts | 8 |
| Reach Compliance Code | compliant |
| series | F |
| JESD-30 code | R-PDSO-C8 |
| Logic integrated circuit type | ACTIVE DELAY LINE |
| Number of functions | 1 |
| Number of taps/steps | 5 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOC |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Maximum supply current (ICC) | 32 mA |
| programmable delay line | NO |
| Certification status | Not Qualified |
| Maximum seat height | 5.715 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | C BEND |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Total delay nominal (td) | 75 ns |
| width | 12.192 mm |
| Base Number Matches | 1 |
| SMD-99F-5075M | SMD-99F-5200M | SMD-99F-5250M | SMD-99F-5060M | SMD-99F-5175M | SMD-99F-5125M | |
|---|---|---|---|---|---|---|
| Description | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDSO8, 0.175 INCH HEIGHT, LOWPROFILE, SMD-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDSO8, 0.175 INCH HEIGHT, LOWPROFILE, SMD-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDSO8, 0.175 INCH HEIGHT, LOWPROFILE, SMD-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDSO8, 0.175 INCH HEIGHT, LOWPROFILE, SMD-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDSO8, 0.175 INCH HEIGHT, LOWPROFILE, SMD-14/8 | Active Delay Line, 1-Func, 5-Tap, True Output, TTL, PDSO8, 0.175 INCH HEIGHT, LOWPROFILE, SMD-14/8 |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC | SOIC | SOIC |
| package instruction | SOC, | SOC, | SOC, | SOC, | SOC, | 0.175 INCH HEIGHT, LOWPROFILE, SMD-14/8 |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| series | F | F | F | F | F | F |
| JESD-30 code | R-PDSO-C8 | R-PDSO-C8 | R-PDSO-C8 | R-PDSO-C8 | R-PDSO-C8 | R-PDSO-C8 |
| Logic integrated circuit type | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of taps/steps | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOC | SOC | SOC | SOC | SOC | SOC |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum supply current (ICC) | 32 mA | 32 mA | 32 mA | 32 mA | 32 mA | 32 mA |
| programmable delay line | NO | NO | NO | NO | NO | NO |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.715 mm | 5.715 mm | 5.715 mm | 5.715 mm | 5.715 mm | 5.715 mm |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | C BEND | C BEND | C BEND | C BEND | C BEND | C BEND |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Total delay nominal (td) | 75 ns | 200 ns | 250 ns | 60 ns | 175 ns | 125 ns |
| width | 12.192 mm | 12.192 mm | 12.192 mm | 12.192 mm | 12.192 mm | 12.192 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - |
