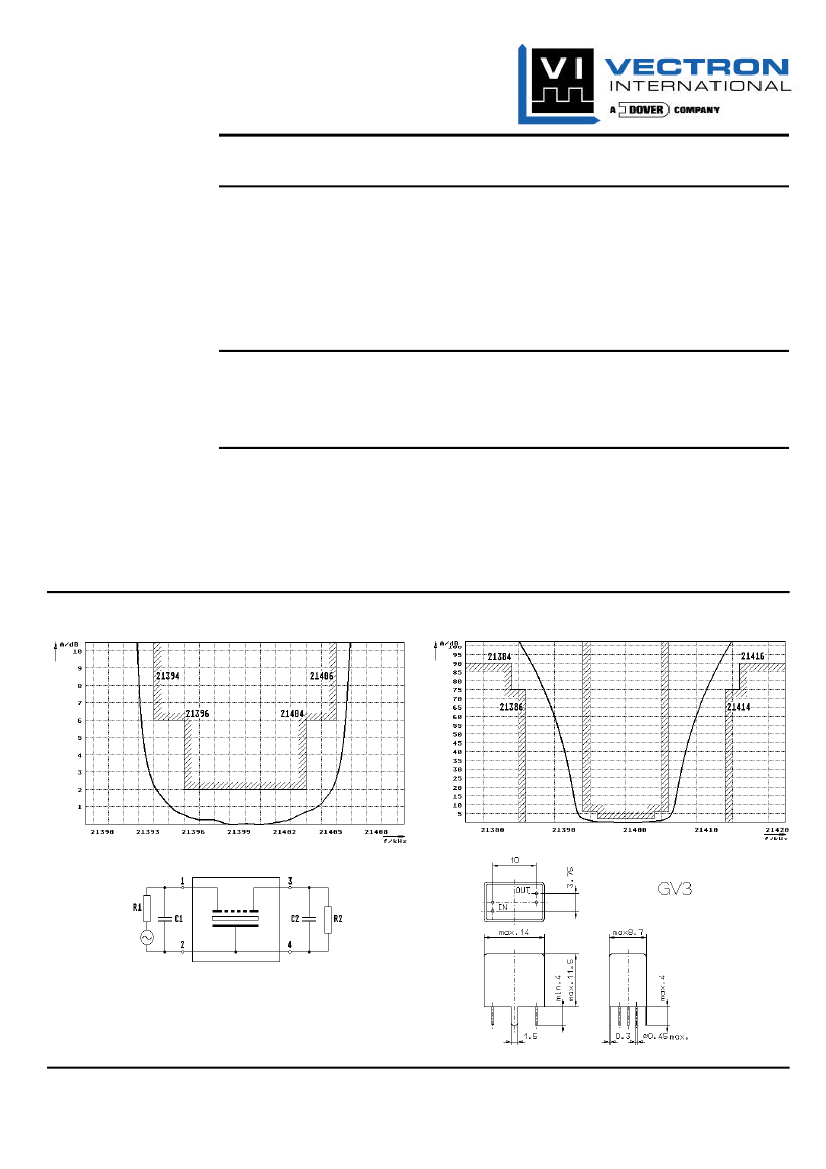

Monolithic crystal filter

MQF21.4-1200/23

Application

•

10 pol filter

•

i.f.- filter

•

use in mobile and

stationary transceivers

Limiting values

Unit

Value

Center frequency

Insertion loss

Pass band at 6.0 dB

Ripple in pass band

Stop band attenuation

Alternte attenuation

fo

±

fo

4.00 kHz

14

kHz

16 kHz

16...300 kHz

MHz

dB

kHz

dB

21.4

≤

4.0

±

6.00

≤

2.0

≥

75

> 90

Terminating impedance Z

R1 || C1

R2 || C2

Ohm/pF

1200 || 2.5

Operating temp. range

°C

-20... +70

Characterstics

Pass band

MQF21.4-1200/23

Stop band

Pin connections: 1

2

3

4

Input

Input-E

Output

Output-E

25.10.00

TELE FILTER Zweigniederlassung der DOVER EUROPE GMBH

Potsdamer Str. 18 D- 14513 Teltow

!

(+49)03328-4784-10 ; Fax (+49)03328-4784-30 http:\\www.telefilter.com
