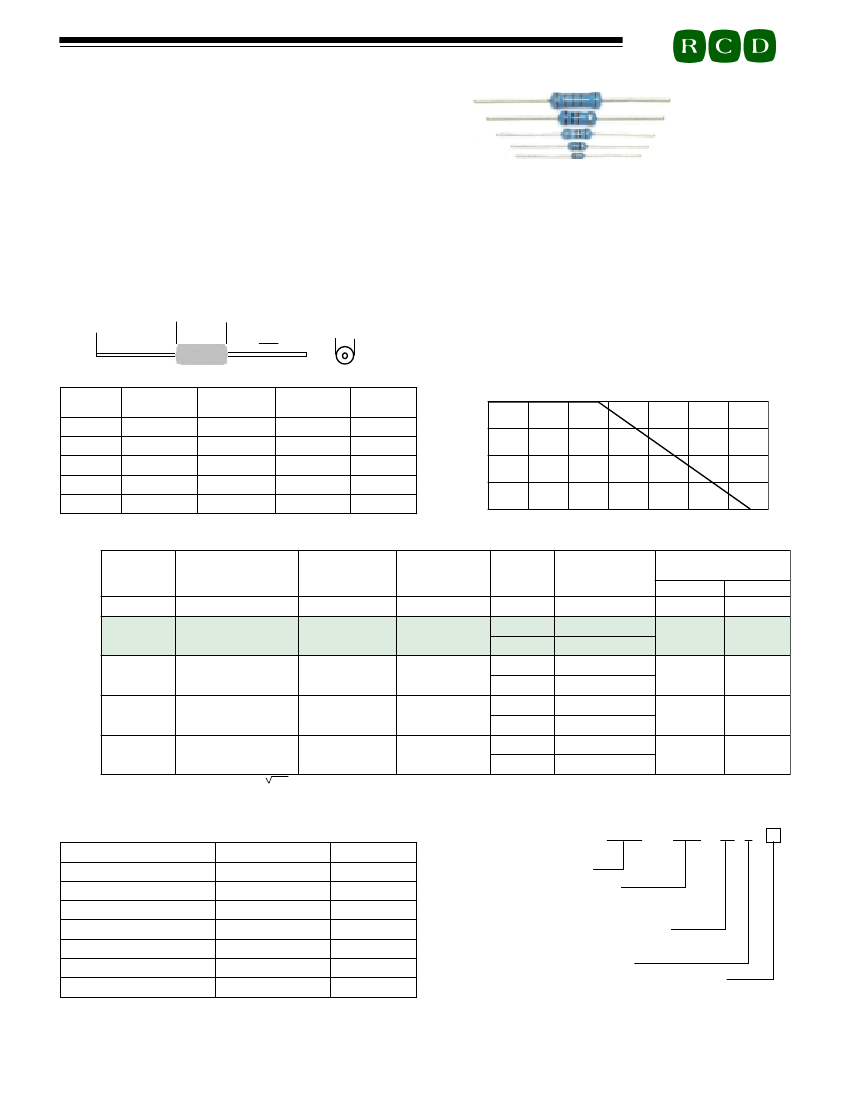

COMMERCIAL 1/8 WATT TO 2 WATT METAL FILM RESISTORS
/25-41-5
FEATURES
RESISTORS
MCAPS
& COILS
MDELAY
LINES
H
Industry’s lowest cost! Delivery from stock (GP55 10Ω to 1M
1% E96 values)
H
Improved stability, ±0.2%
∆R
typical load life
H
Meet or exceed performance requirements of MIL-R-10509
(RN), MIL-R22684 (RRL), EIA RS-460
H
Exceptionally wide resistance range: 10Ω to 5.1 Meg
standard, 1Ω to 22.1 Meg available
H
Wide TC range: 25, 50, 100, 200ppm/°C
H
Standard tolerances: 1%, 2% (available to ±0.1%)
H
All sizes available on Tape & Reel
H
Refer to Series GPS for miniature sizes
H
FLAME PROOF COATING AVAILABLE (SERIES FP)
Precision performance, economical cost!
RCD GP Series general purpose color-banded metal film resistors are
designed to provide MIL performance and reliability, at significant cost
savings. Substantially improved performance over industry standard
is attained by stringent process controls and highest grade materials.
The high-grade, thermal conductive ceramic core allows increased
stability and overload dissipation. The lead termination is welded for
increased durability, special electroplate solder coating is standard for
faultless soldering even after extended storage. Request Engineering
Bulletin R-8 for detailed performance data and test methods on GP
Series. Low prices result from manufacturing facility built exclusively
for totally automated production of film resistors.
←
H
DIMENSIONS
RCD
Type
GP50
GP55
GP60
GP65
GP70
→
←
L
→
d
↓
↑
→
D
←
See GPS Series for miniature sizes!
DERATING
H (Min.)
1.06 [27]
1.06 [27]
1.06 [27]
1.06 [27]
1.06 [27]
% OF RATED POWER
L±.02 [.05] D ±.015 [.4]* d±.003 [.08]
.150 [3.8]
.250 [6.4]
.360 [9.1]
.455 [11.5]
.590 [15]
.064 [1.6]
.090 [2.3]
.132 [3.4]
.177 [4.5]
.195 [5.0]
.018 [.45]
.026 [.65]
.026 [.65]
.030 [.75]
.030 [.75]
100
75
50
25
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (°C)
---
* Tolerance is ±.032 on GP60, GP65, and GP70.
175
SPECIFICATIONS
RCD Type
GP50
STOCK
ITEM
165
Wattage
70°C
0.125W
0.25W
0.50W
1.0W
2.0
Working
Voltage
1
200V
250V
350V
400V
500V
Dielectric
Withstanding
Voltage
350V
500V
500V
700V
700V
TC R
(PPM/°C)
100,50,25
200,100
50,25
200,100
50,25
200,100
50,25
200,100
50,25
Resistance
R an g e
10
Ω
-1 Meg
1Ω - 5.1 Meg
2
10
Ω
- 1 Meg
10
Ω
- 1 Meg
10
Ω
- 5.1 Meg
10
Ω
- 1 Meg
10
Ω
- 5.1 Meg
10
Ω
- 1 Meg
51
Ω
- 1 Meg
MIL Eqivalents
3
MIL-R-10509 MIL-R-22684
RN50
RN55
RN60
RN65
RN70
-
RL07
RL20
RL32
RL42
GP55
GP60
GP65
GP70
1
2
3
Maximum working voltage determined by E= PR, E should not exceed value listed in column above.
GP55 available up to 22.1 MegΩ with relaxed performance characteristics.
Military part numbers are given for reference only and do not imply qualification or exact interchangeability.
PERFORMANCE CHARACTERISTICS*
Environmental Test
Dielectric Withstanding
Moisture Resistance
Short Time Overload
Load Life
Temperature Cycling
Shock, Vibration
Insulation Resistance
RCD Max.
∆
R
0.25%
0.5%
0.25%
0.5%
0.25%
0.2%
10,000M
Ω
MIL-R-10509
0.5%
1.5%
0.5%
1.0%
0.5%
0.5%
10,000M
Ω
P/N DESIGNATION:
RCD Type
(FP55- for flameproof)
GP55 -
1001 - F
T
4-Digit Resis. Code:
3 signif. digits &
multiplier (10R0=10Ω, 1000=100Ω,
1001=1KΩ, 1004=1MΩ)
Tolerance Code:
J=5%, G=2%, F=1%, D=0.5%,
C=0.25%, B=0.1% (1% is standard stock)
Packaging:
B = Bulk, T = Tape & Reel
TC Options:
50=50ppm, 25=25ppm, 15=15ppm, leave blank
for standard TC (100ppm for 1% 10 ohm to 10M, 200ppm for
1 ohm to <10 ohm; 200ppm for 2% or 5% 1 ohm to 10M)
*Total resistance change + (∆R% + 0.05Ω). Characteristics given are for resistance range
10Ω to 1.0 Meg. Consult factory for performance levels outside of this range.
RCD Components Inc.,
520 E. Industrial Park Dr., Manchester, NH, USA 03109
Tel: (603) 669-0054 Fax:(603) 669-5455 E-mail: sales@rcdcomponents.com
www.rcdcomponents.com
FAxxxx specifications subject to change without notice
